Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the harness to door.
  2. Engage the snap ring locks
  3. Push on rubber boot over plastic snap ring connector.

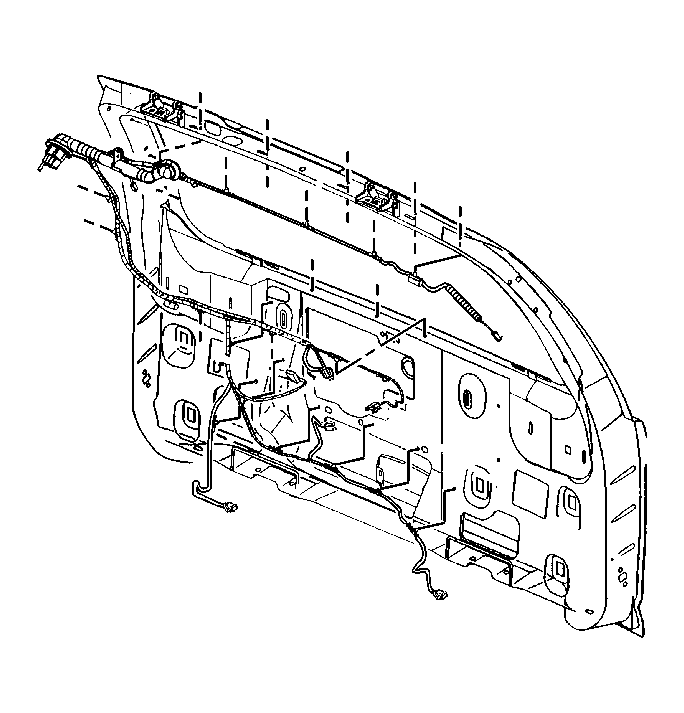

    4. Fig 1: Installing Liftgate Wiring Harness
    GM577905Courtesy of GENERAL MOTORS CORP.
  4. Install the wiring harness clips.
  5. Connect the door ajar switch connector(s).
  6. Connect the door lock actuator connector.
  7. Connect the wiper module connector.
  8. Connect the window ajar switch connector.
  9. Connect the key switch connector.
  10. Connect the window defogger wiring connectors.
  11. Install the liftgate trim panel. Refer to Trim Panel Replacement - Liftgate .
