Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold the rear seat back down.
  2. Remove the hinges. Refer to Hinge Replacement - Removable Rear Panel - Midgate .
  3. Open the midgate while leaving the back glass in place.

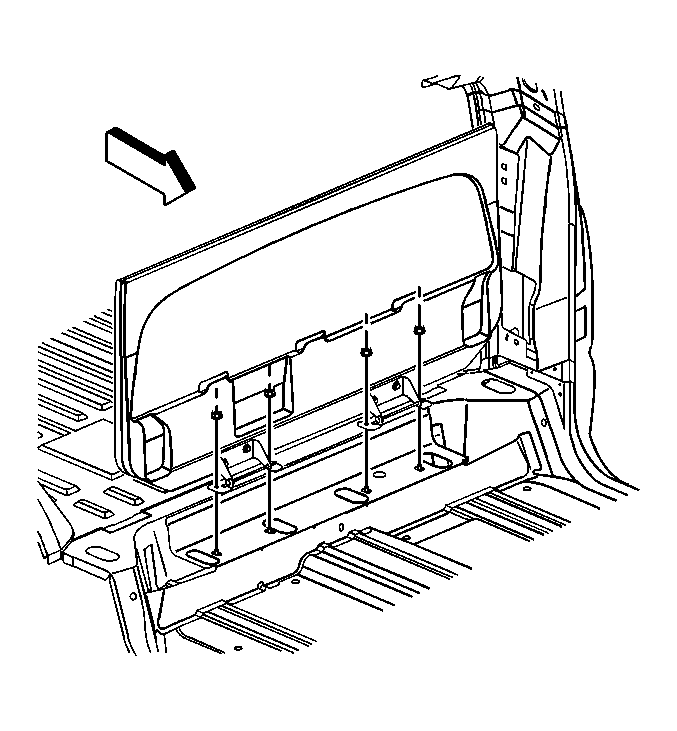

    Fig 1: Removable Rear Panel (Midgate)
    GM741392Courtesy of GENERAL MOTORS CORP.
  4. Remove the panel from the vehicle
