Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

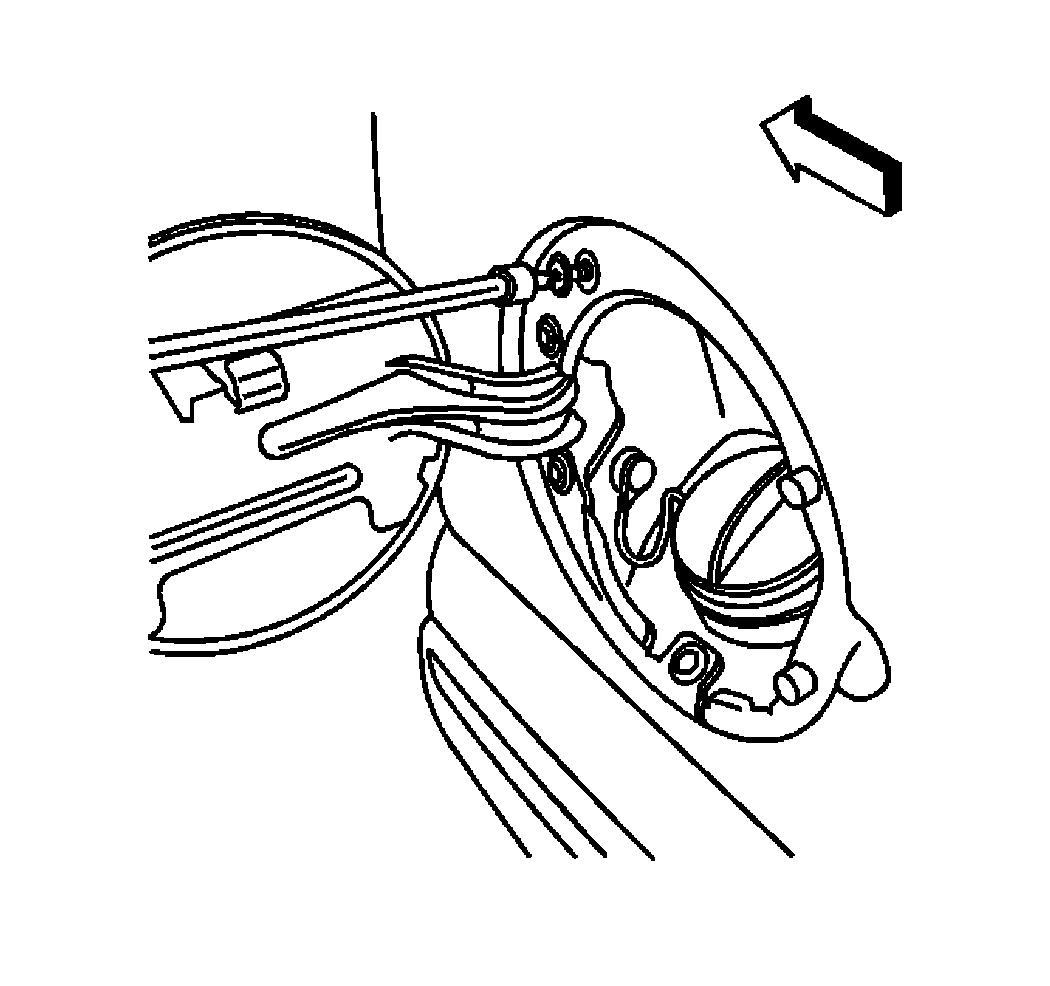

Fig 1: Fuel Filler Door & Lower Screws

Courtesy of GENERAL MOTORS CORP.

Position the fuel filler door to the quarter panel.

NOTE: Refer to FASTENER NOTICE .

Install the screws to the fuel filler door.
Tighten: Tighten the screws to 9 N.m (80 lb in).

Fig 2: Fuel Filler Door & Upper Screws

Courtesy of GENERAL MOTORS CORP.

Reposition the fuel filler neck.
Install the screws to the fuel filler neck.
Tighten: Tighten the screws to 9 N.m (80 lb in).
Inspect the alignment of the fuel filler door.
