Tools Required

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

See Special Tools and Equipment .

Adjustment Procedure

Using the J 29843-9 removing the striker bolt. See Special Tools and Equipment .
Loosen the door hinge to the body side pillar bolts.

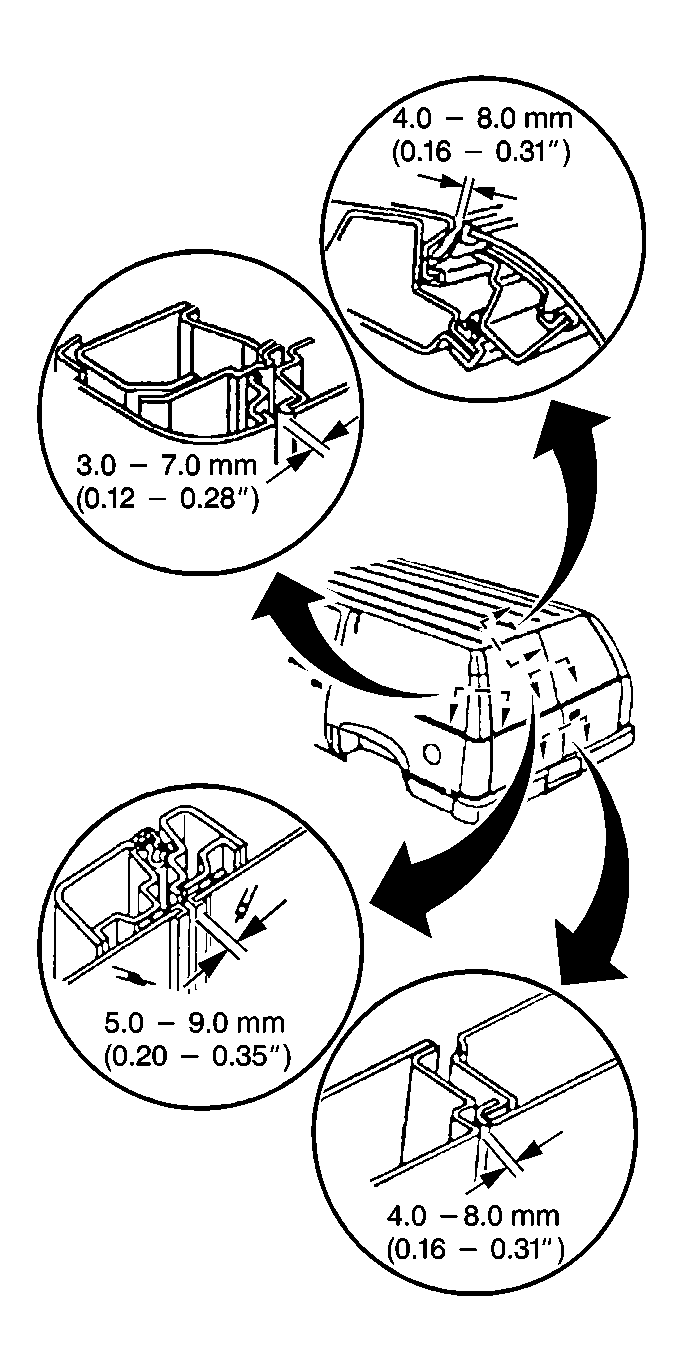

Fig 1: Adjusting Rear Door

Courtesy of GENERAL MOTORS CORP.

Adjust the door at the hinges in the following directions:
- Upward or downward
- Forward or rearward
Adjust the gap between the rocker panel and the door.
Adjust the gap between the door glass and the roof panel to 4.0-8.0 mm (0.16-0.31 in).
Adjust the gap between the rear of the door and the rear pillar to 3.0-7.0 mm (0.12-0.28 in).
Adjust the door so that the door surfaces are flush with the other panels within 1.0 mm (0.04 in).

NOTE: Refer to FASTENER NOTICE .

Tighten the hinge bolts.
Tighten: Tighten the bolts to 25 N.m (18 lb ft).
Install the door striker bolt.
Adjust the bolt in order to properly engage the door lock.

Tighten: Tighten the bolt to 25 N.m (18 lb ft).
