Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect all wiring connectors to the fuse block.

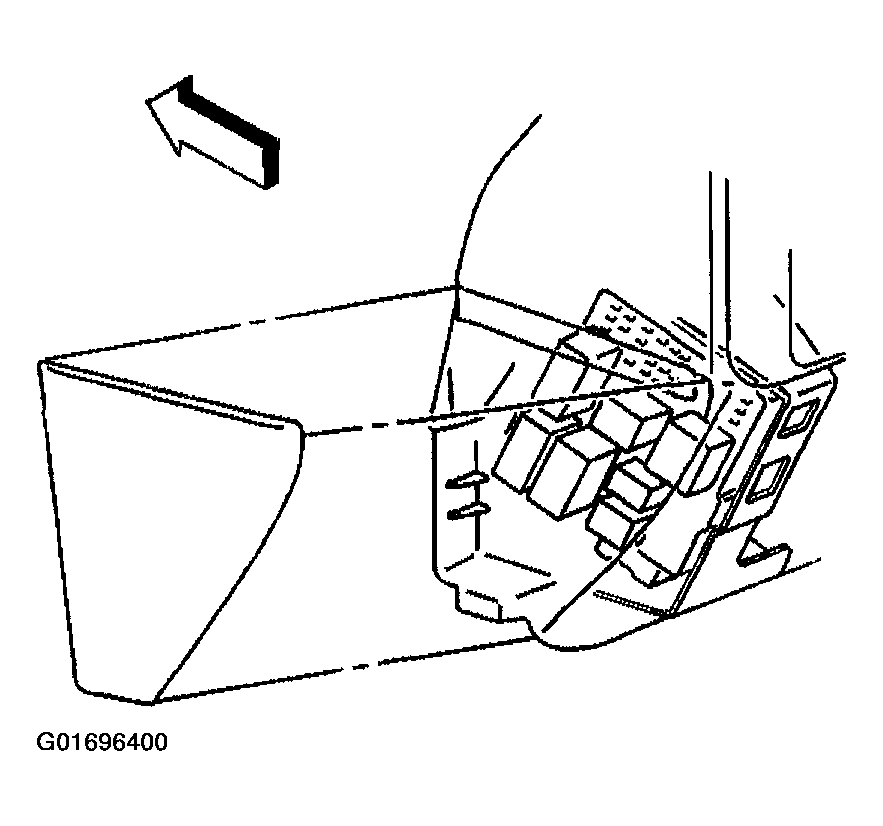

    2. Fig 1: Left Instrument Panel Electrical Center Or Junction Block
    G01696400Courtesy of GENERAL MOTORS CORP.
  2. Position the fuse block onto the IP assembly.
  3. Press on the clips on the top and the bottom of the fuse block and push in the clips until seated.
  4. Install the left side end panel.
  5. Connect the negative battery cable(s).
