Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the two 68-way IP connectors to the body wiring harness junction block.
  2. Connect all remaining wiring connectors.

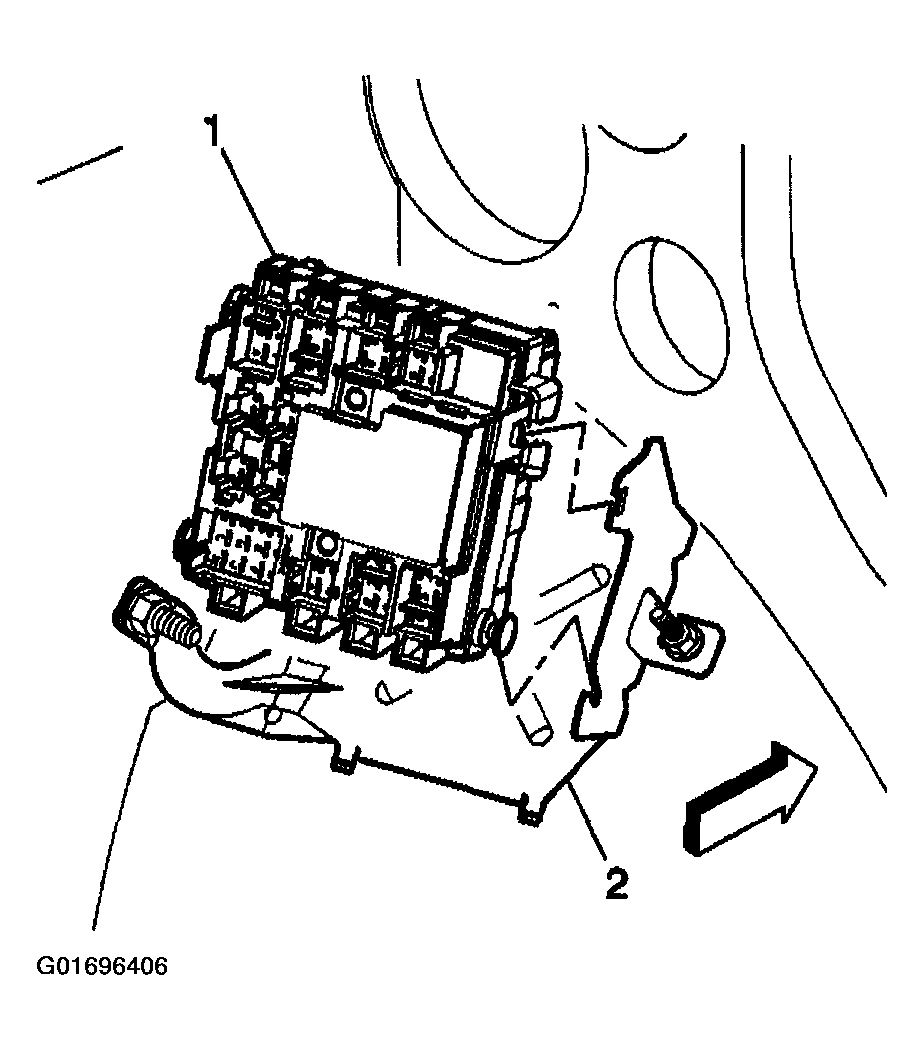

    3. Fig 1: Body Wiring Harness Junction Block
    G01696406Courtesy of GENERAL MOTORS CORP.
  3. Snap the body wiring harness junction block (1) onto the bracket (2).
  4. Connect the harness to the front of the body wiring harness junction block.

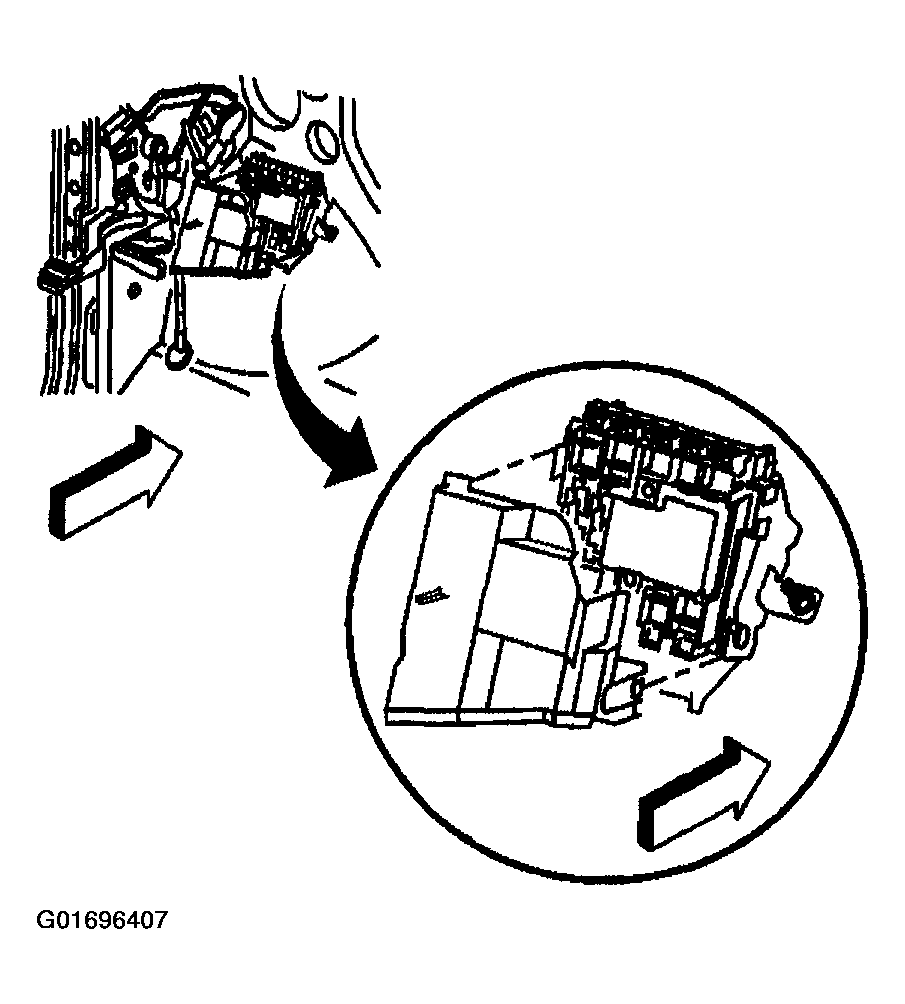

    5. Fig 2: Body Wiring Harness Junction Block Cover
    G01696407Courtesy of GENERAL MOTORS CORP.
  5. Fasten the cover to the body wiring harness junction block.
  6. Connect the negative battery cable(s).
