Electrical Symbols

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

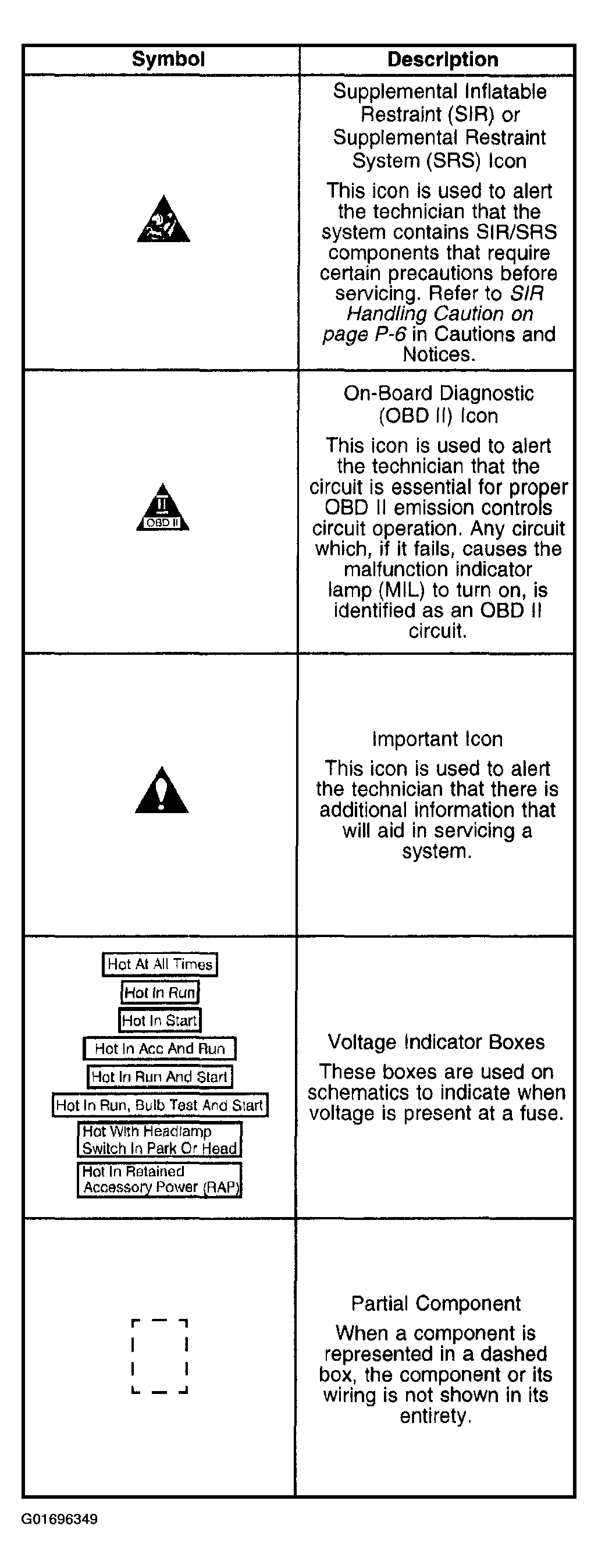

Fig 1: Electrical Symbols (1 Of 8)

G01696349

Courtesy of GENERAL MOTORS CORP.

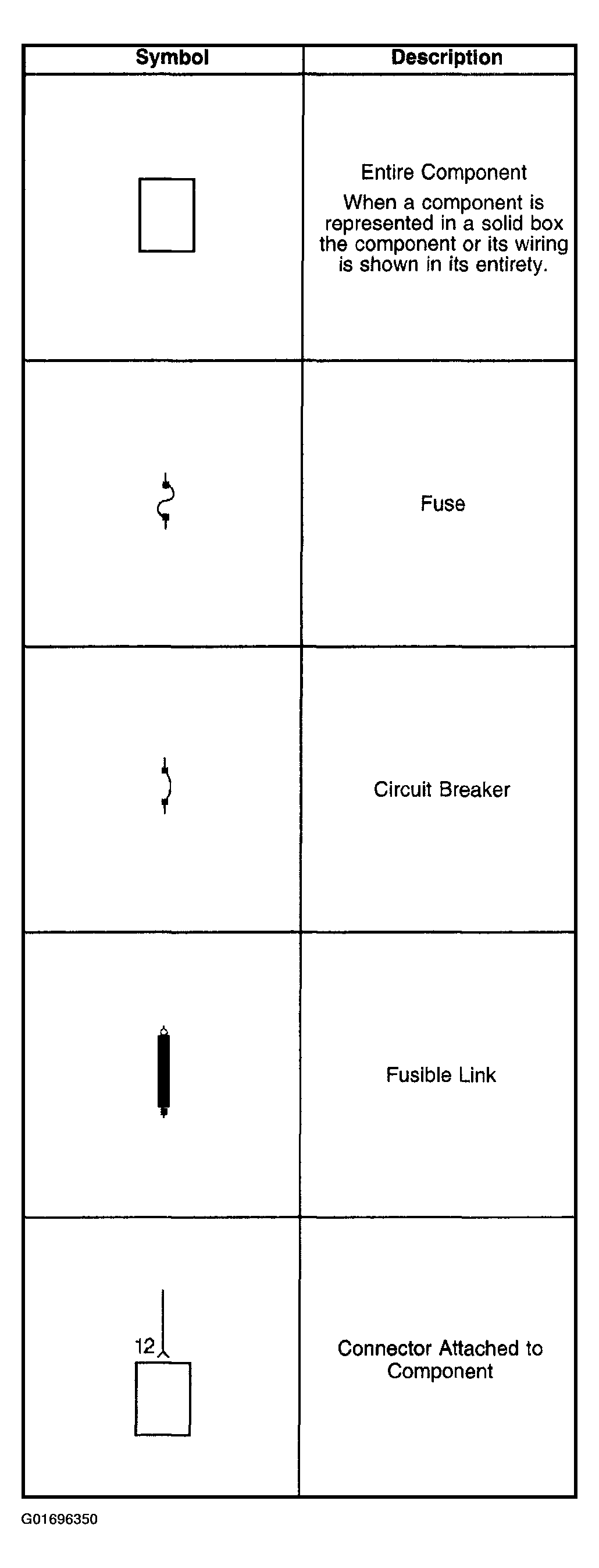

Fig 2: Electrical Symbols (2 Of 8)

G01696350

Courtesy of GENERAL MOTORS CORP.

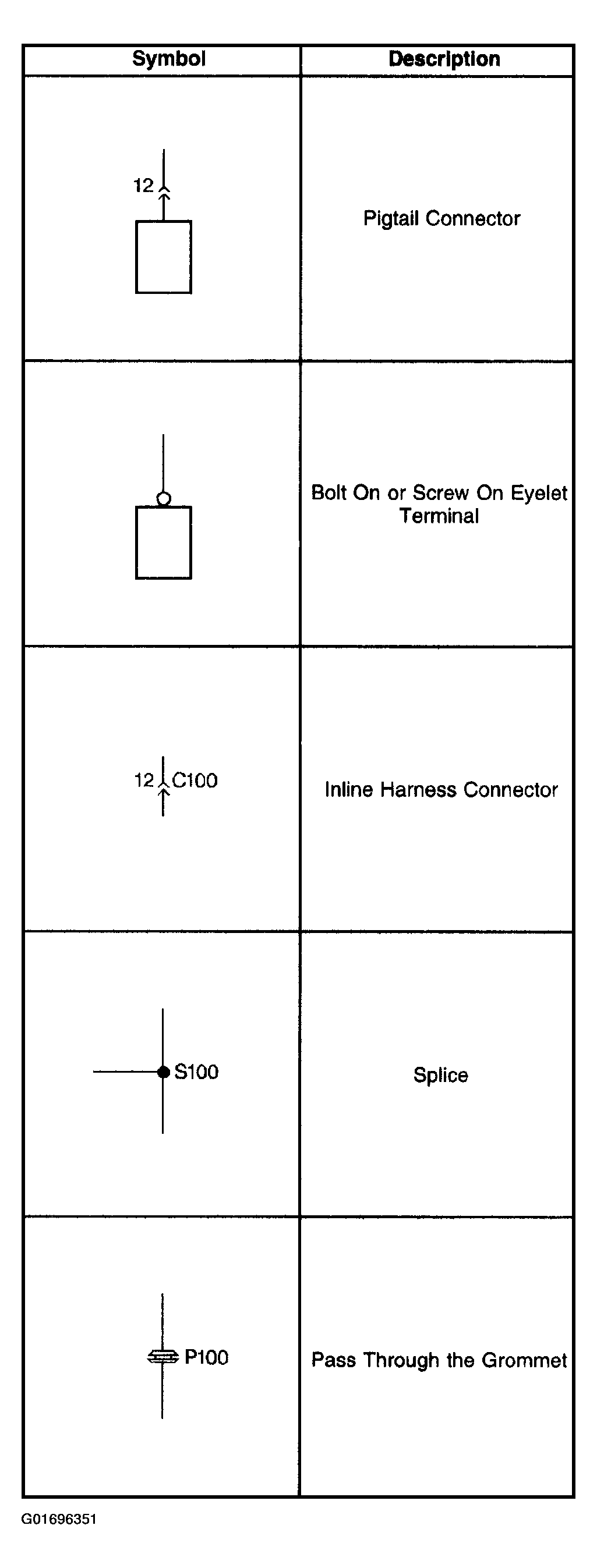

Fig 3: Electrical Symbols (3 Of 8)

G01696351

Courtesy of GENERAL MOTORS CORP.

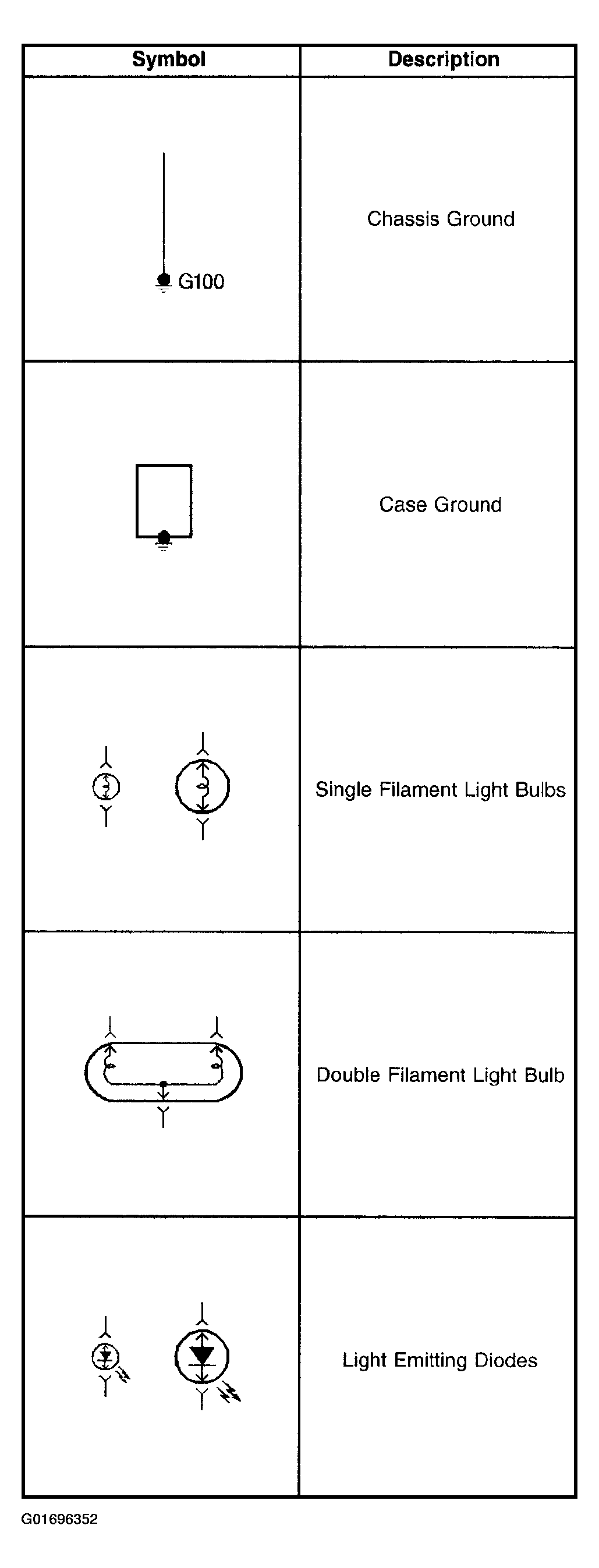

Fig 4: Electrical Symbols (4 Of 8)

G01696352

Courtesy of GENERAL MOTORS CORP.

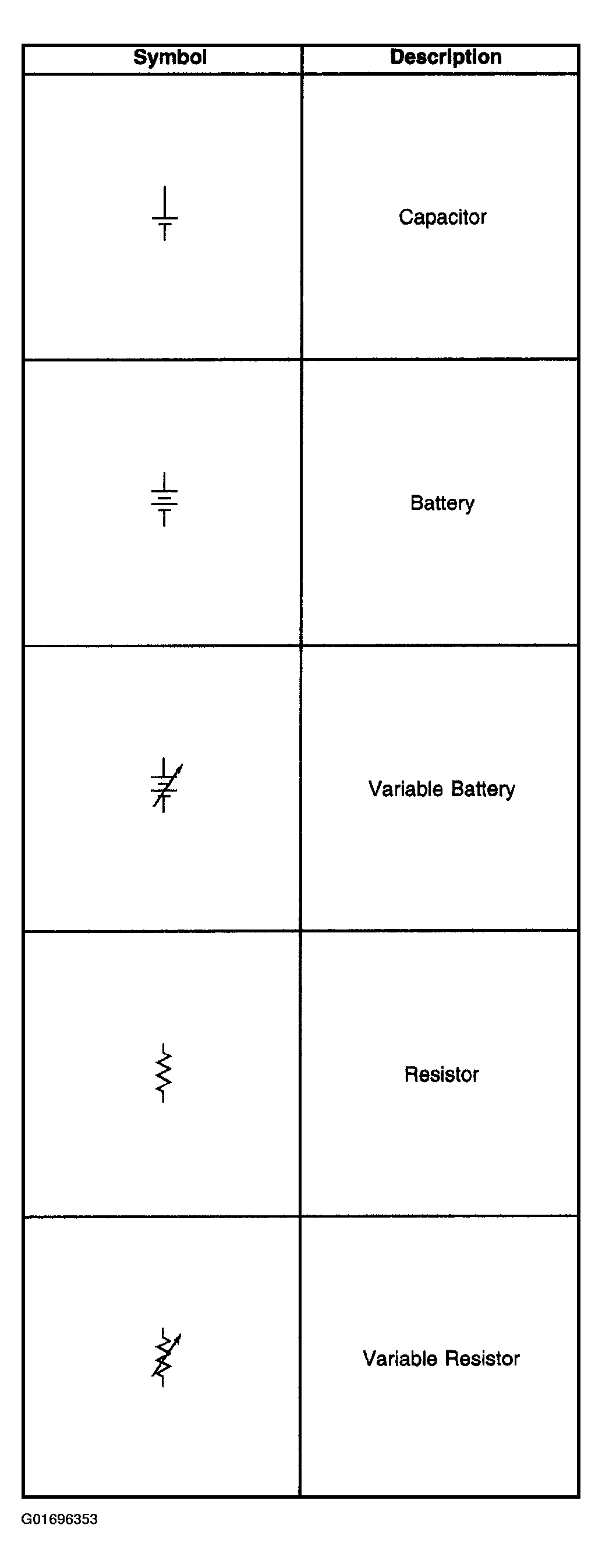

Fig 5: Electrical Symbols (5 Of 8)

G01696353

Courtesy of GENERAL MOTORS CORP.

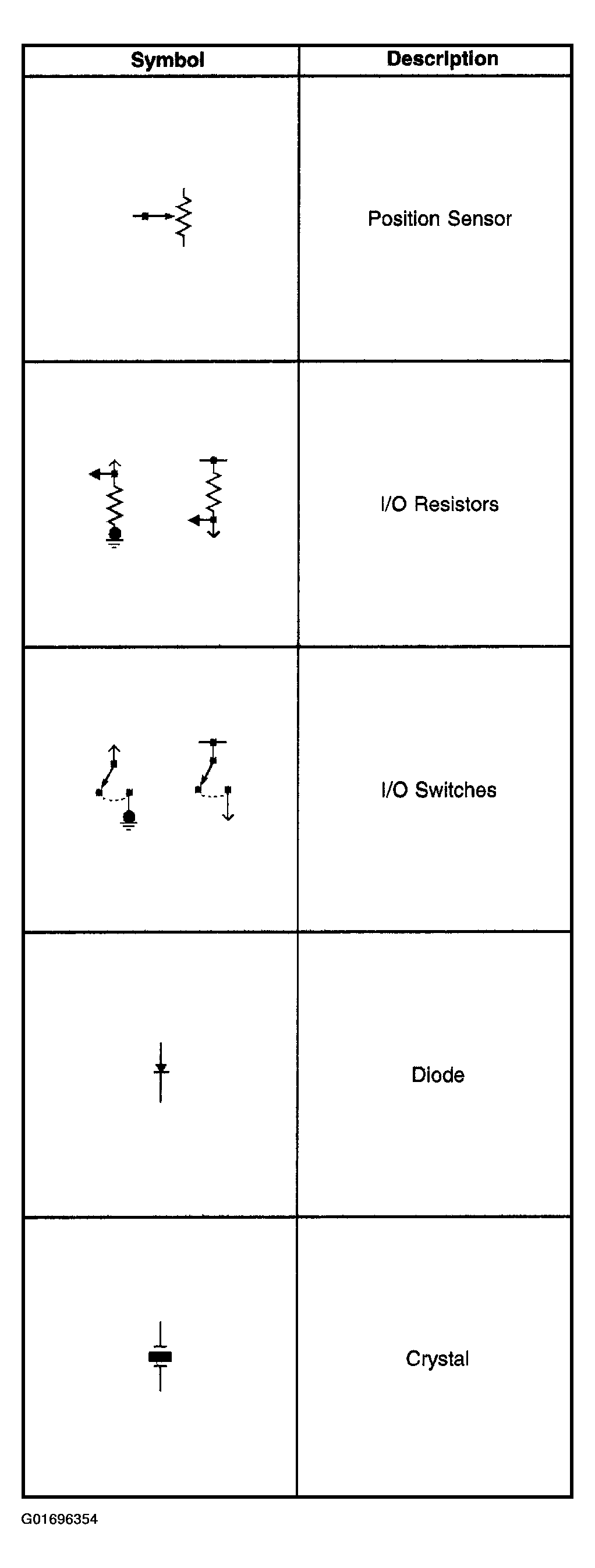

Fig 6: Electrical Symbols (6 Of 8)

G01696354

Courtesy of GENERAL MOTORS CORP.

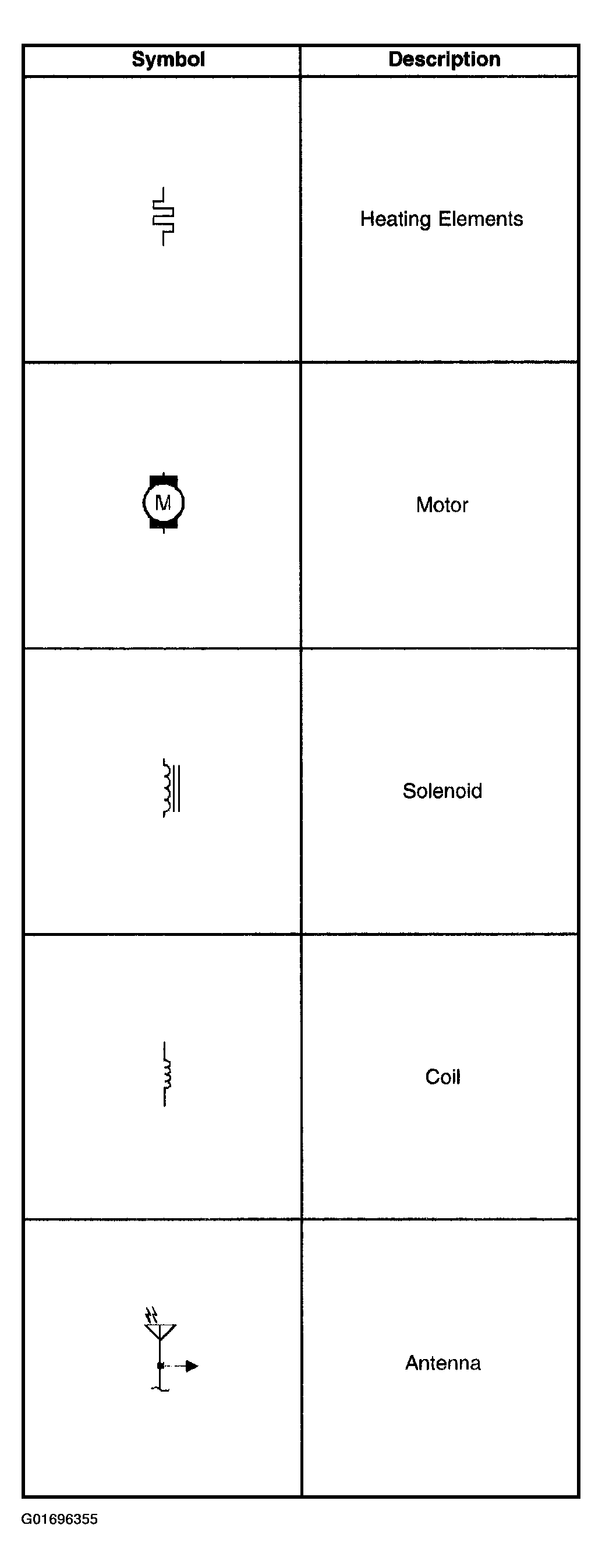

Fig 7: Electrical Symbols (7 Of 8)

G01696355

Courtesy of GENERAL MOTORS CORP.

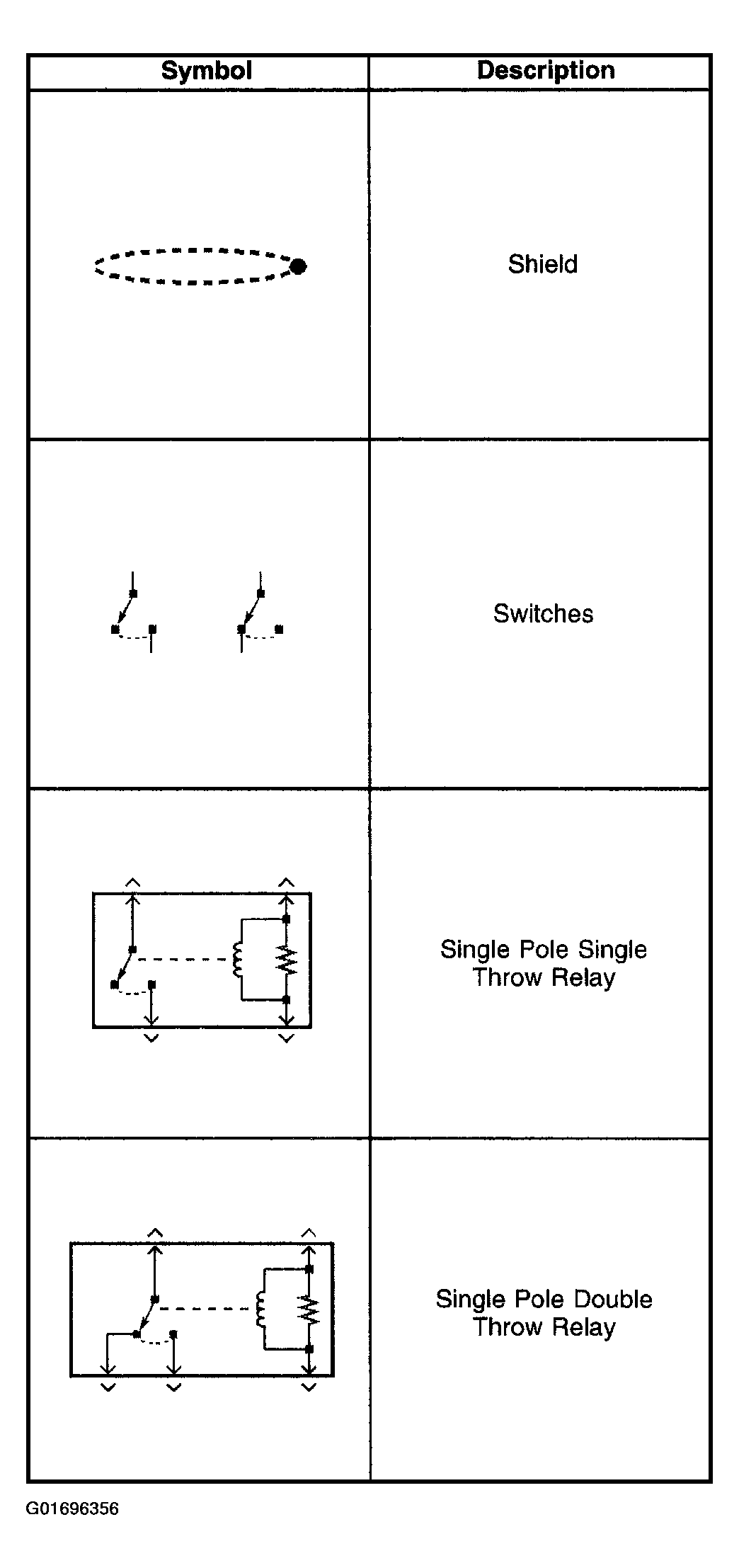

Fig 8: Electrical Symbols (8 Of 8)

G01696356

Courtesy of GENERAL MOTORS CORP.
