Retrieving Diagnostic Trouble Codes

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

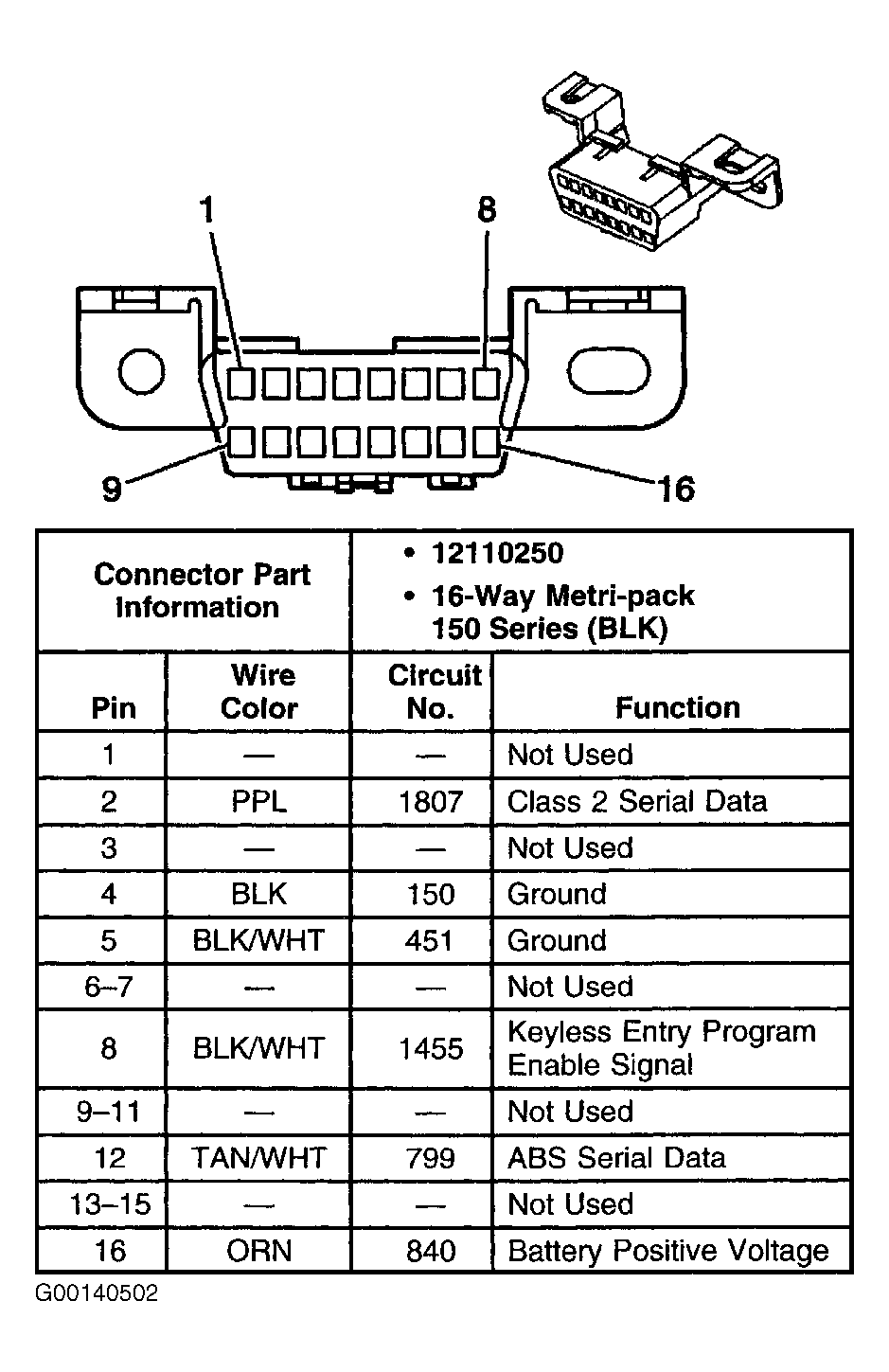

DTCs are retrieved using a Tech 2 scan tool, or other OBD-II compatible scan tool connected to OBD-II 16-pin Data Link Connector (DLC). See DIAGNOSTIC SYSTEM CHECK - ENGINE CONTROLS . See Figure. DLC is located below left side of dash.
