Suspension Controls Schematics

WARNING: This page is about a different car, the 2002 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.

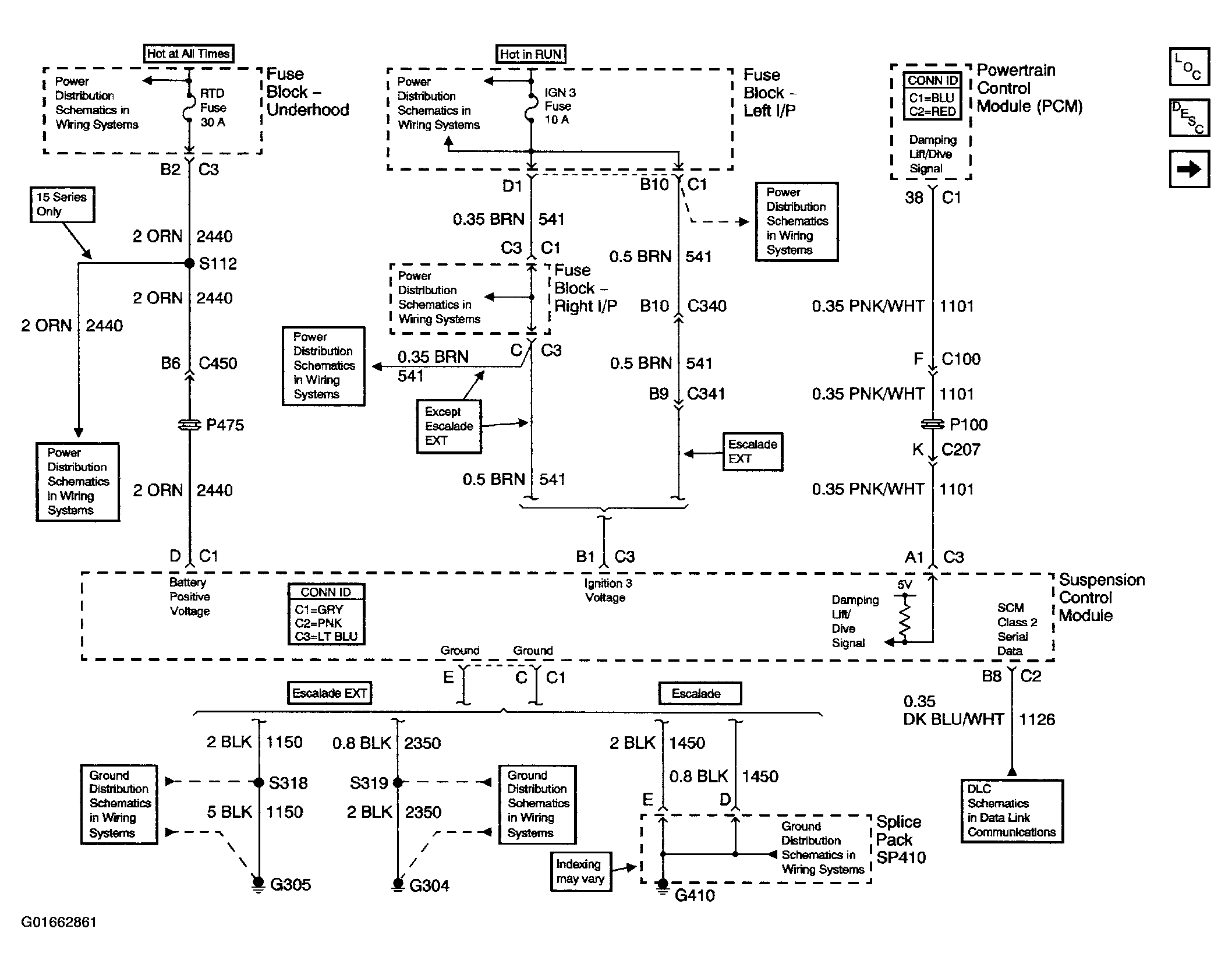

Fig 1: Suspension Controls Schematics (Power, Ground, Data Link Connector (DLC))

Courtesy of GENERAL MOTORS CORP.

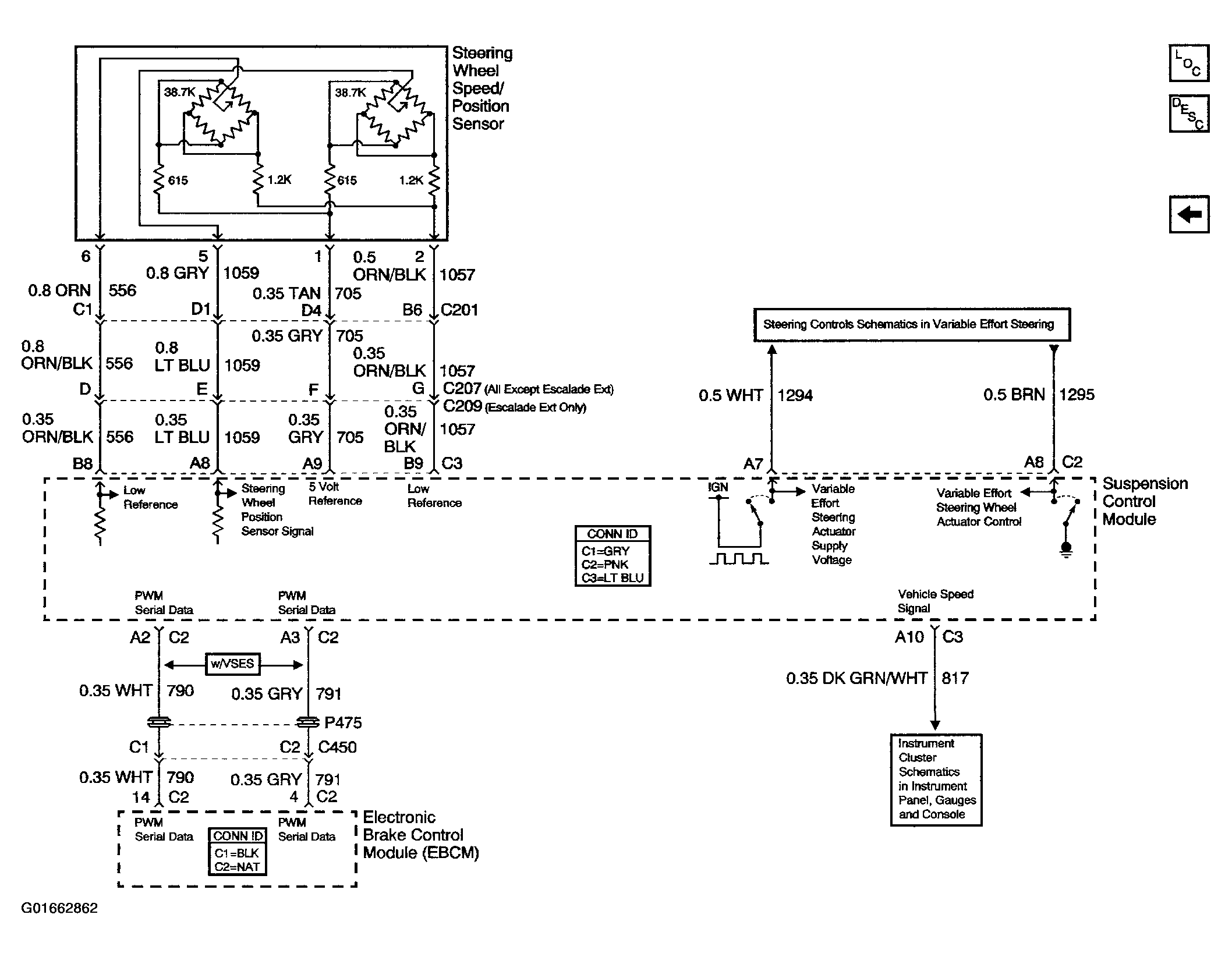

Fig 2: Suspension Controls Schematics (Steering Wheel Speed/Position Sensor, EVO Solenoid Inputs and Vehicle Speed Signal)

Courtesy of GENERAL MOTORS CORP.

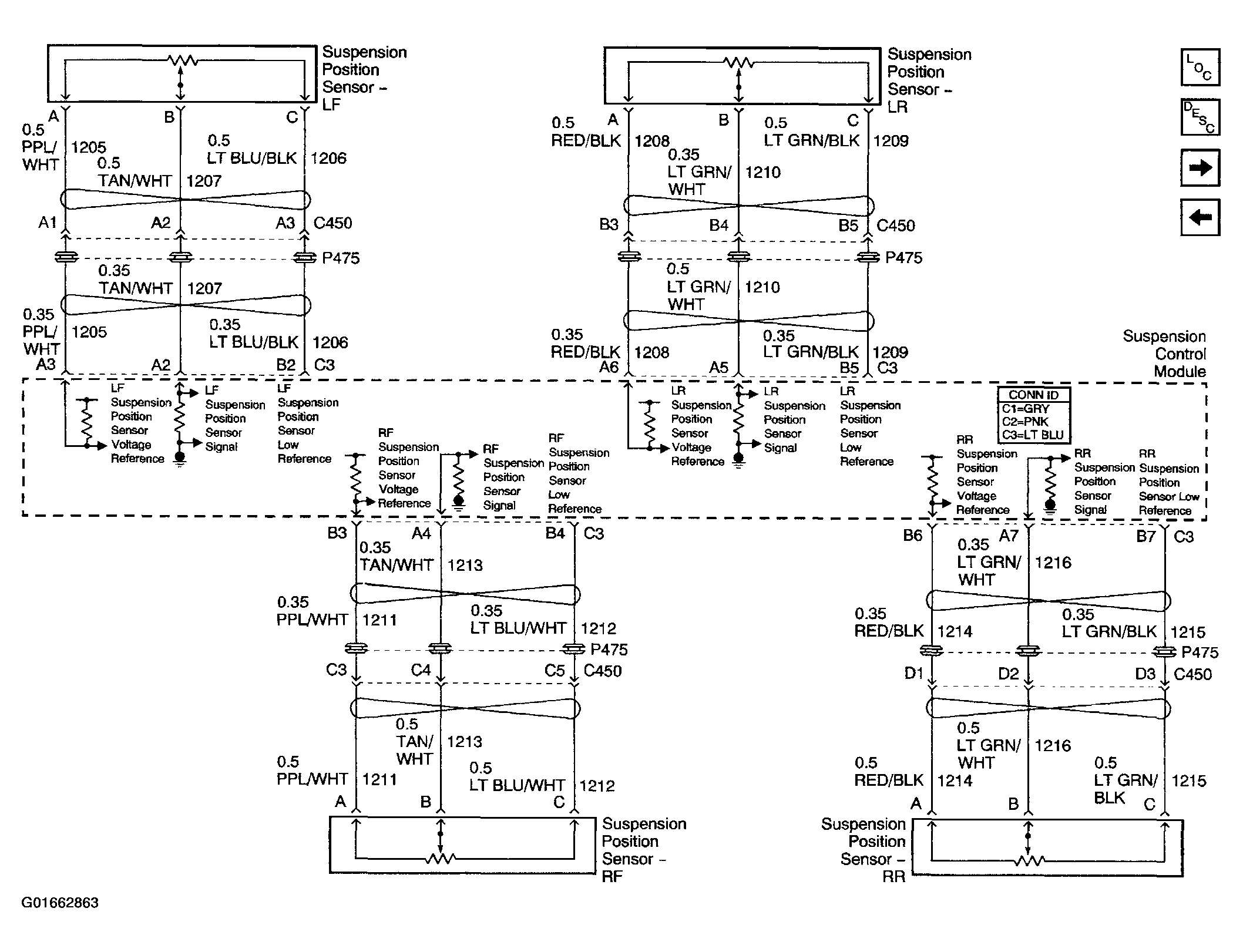

Fig 3: Suspension Controls Schematics (Suspension Position Sensors)

Courtesy of GENERAL MOTORS CORP.

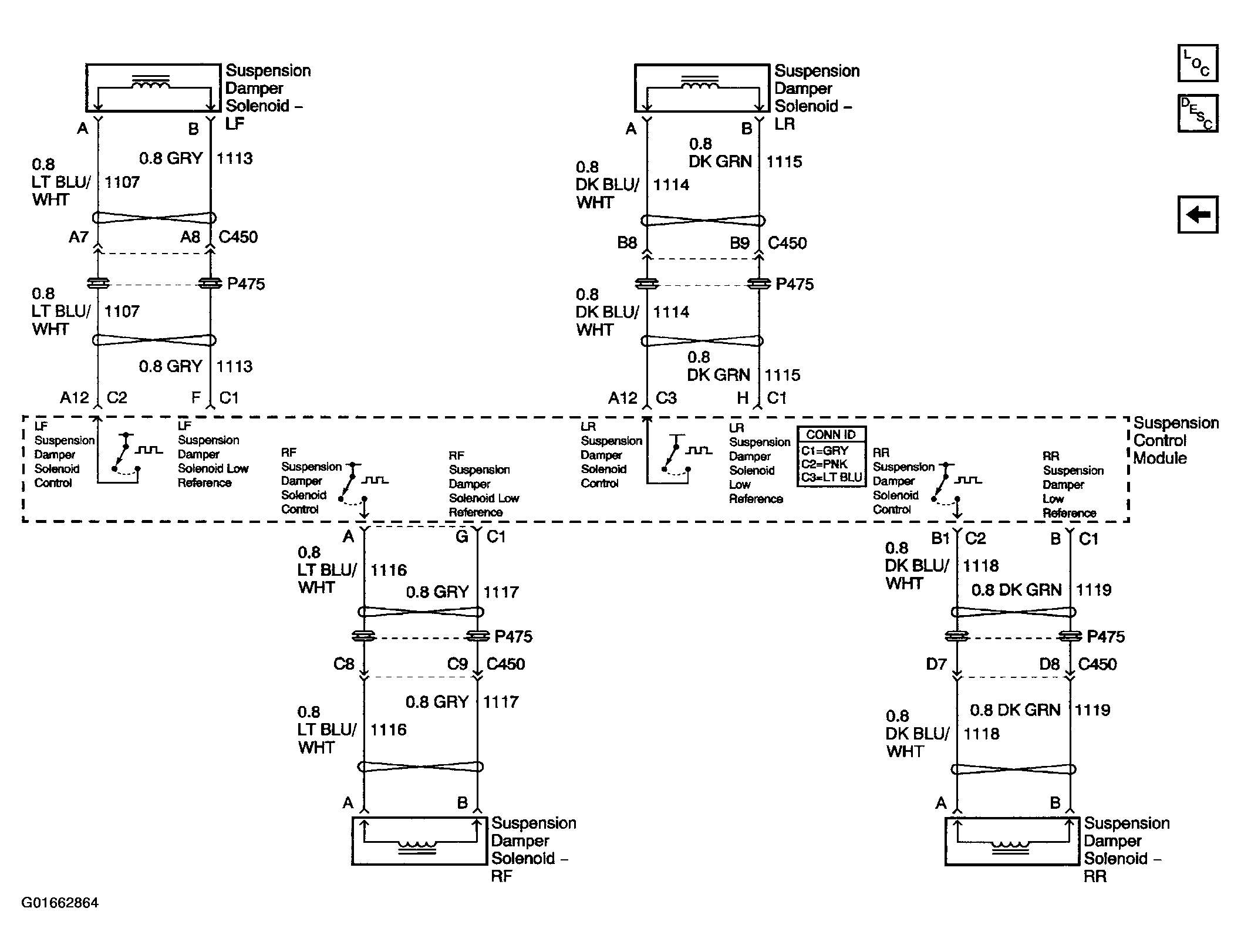

Fig 4: Suspension Controls Schematics (Suspension Damper Solenoids)

Courtesy of GENERAL MOTORS CORP.
