Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the position sensor on the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts.

    Tighten

    Tighten the bolts to 12 N.m (106 lb in).

  3. Connect the sensor link to the ball stud.

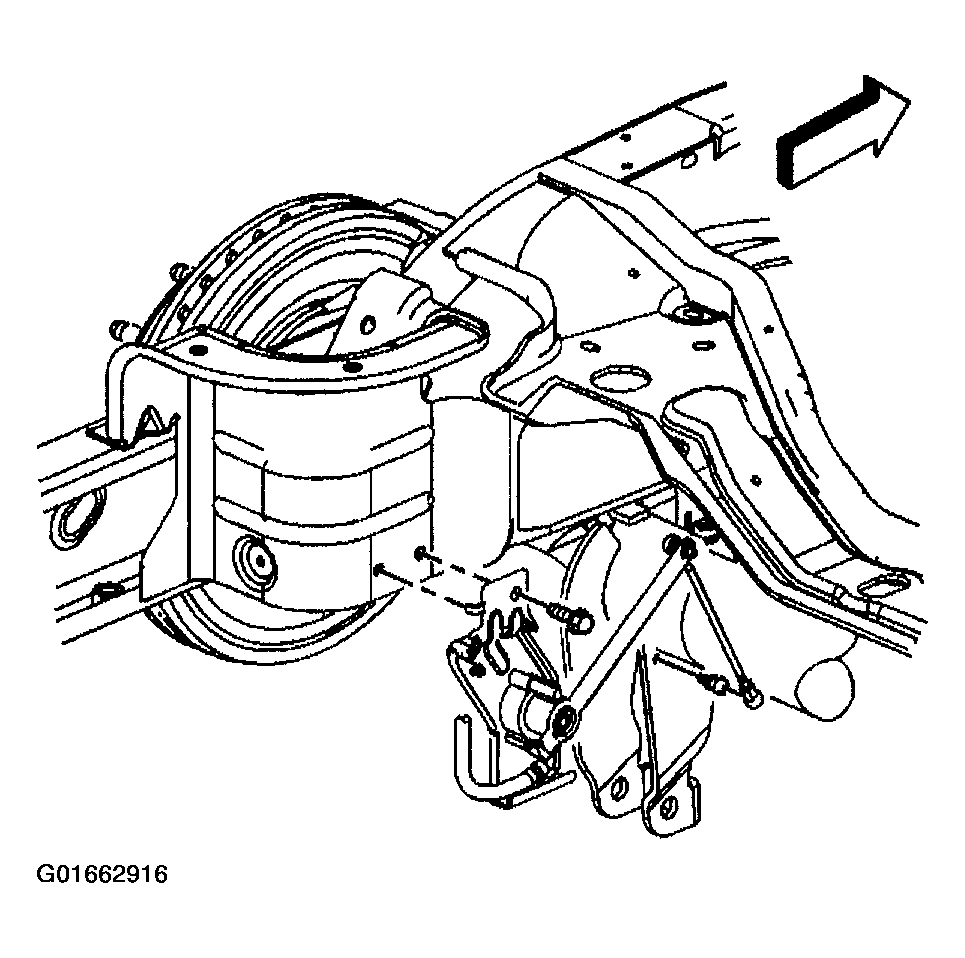

    Fig 1: Installing Rear Position Sensor Replacement - Left (25 Series)
    G01662916Courtesy of GENERAL MOTORS CORP.
  4. Connect the sensor harness connector to the vehicle harness connector.
  5. Install the wheel onto the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  6. Lower the vehicle.

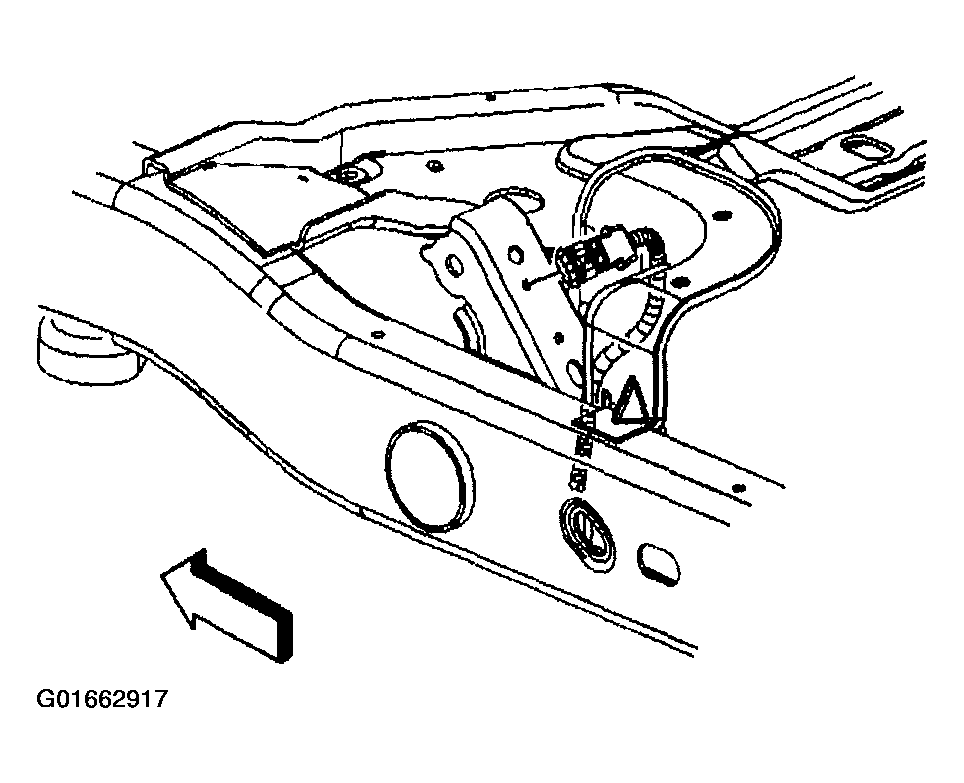

    Fig 2: Connecting Vehicle Harness Connector
    G01662917Courtesy of GENERAL MOTORS CORP.
