Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the J 38185  install to link rod to the ball stud on the sensor lever and the frame bracket.
  2. Install the RTD sensor to the vehicle. Refer to Rear Position Sensor Replacement - Electronic Suspension - Left (15 Series)  or Rear Position Sensor Replacement - Electronic Suspension - Left (25 Series)  or Rear Position Sensor Replacement - Electronic Suspension - Right (25 Series) .

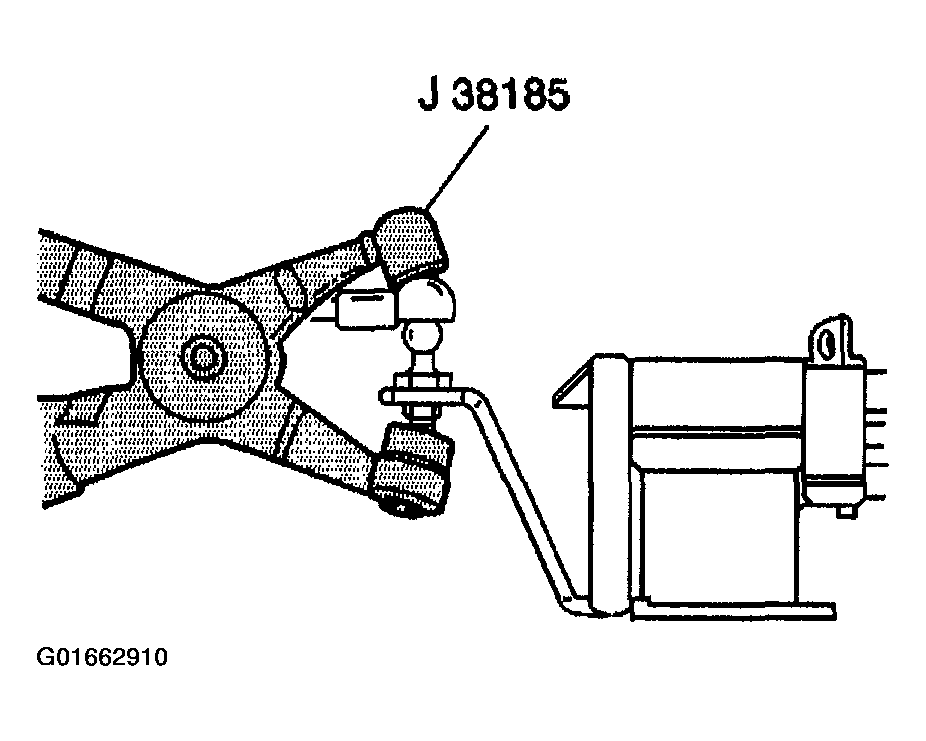

    Fig 1: Installing Link Rod To The Ball Stud Using J 38185
    G01662910Courtesy of GENERAL MOTORS CORP.
