Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the position sensor on the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt to the frame.

    Tighten

    Tighten the bolts to 12 N.m (106 lb in).

  3. Install the (RTD) sensor link bracket bolt to the upper control arm.

    Tighten

    Tighten the bolt to 9 N.m (80 lb in).

  4. Install the wheel speed sensor wire to the real time damping (RTD) sensor bracket.
  5. Connect the sensor harness connector to the vehicle harness connector.
  6. Lower the vehicle.

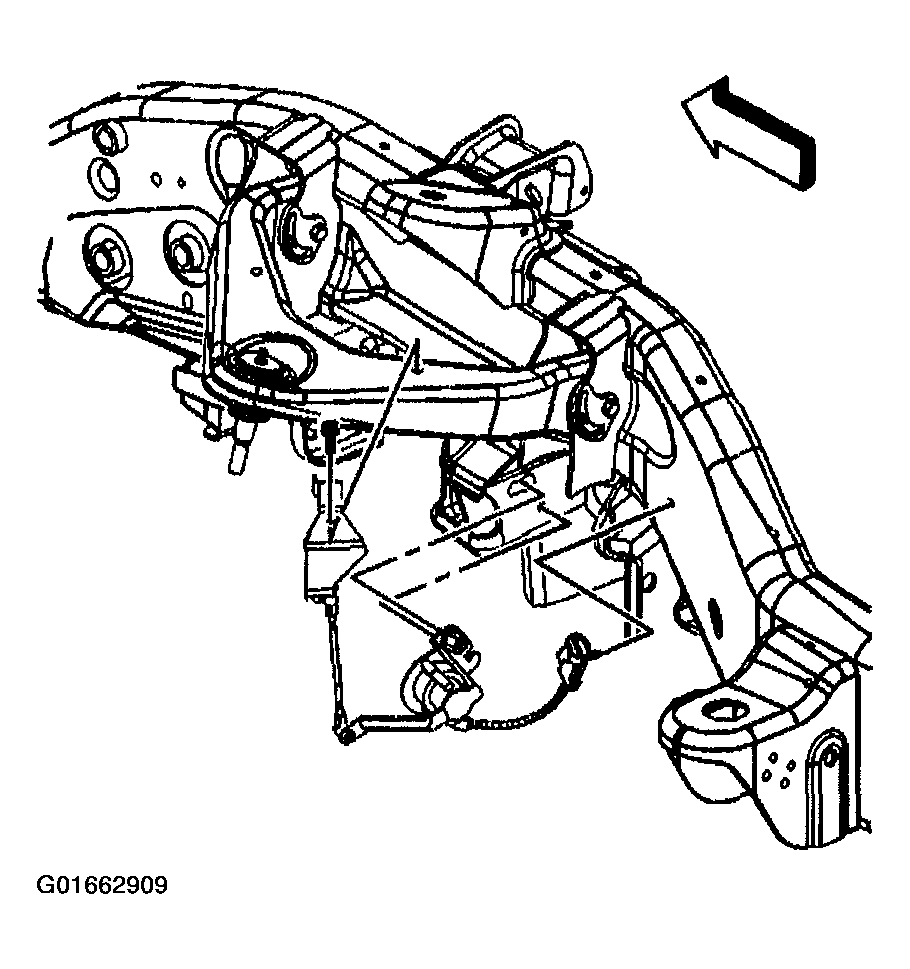

    Fig 1: Removing Front Position Sensor (25 Series 4WD)
    G01662909Courtesy of GENERAL MOTORS CORP.
