Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Disconnect the sensor harness connector from the vehicle harness connector.
  3. Remove the wheel speed sensor wire from the real time damping (RTD) sensor bracket.
  4. Remove the wheel speed sensor wire from the (RTD) sensor bracket.
  5. Remove the (RTD) sensor link bracket bolt from the upper control arm.

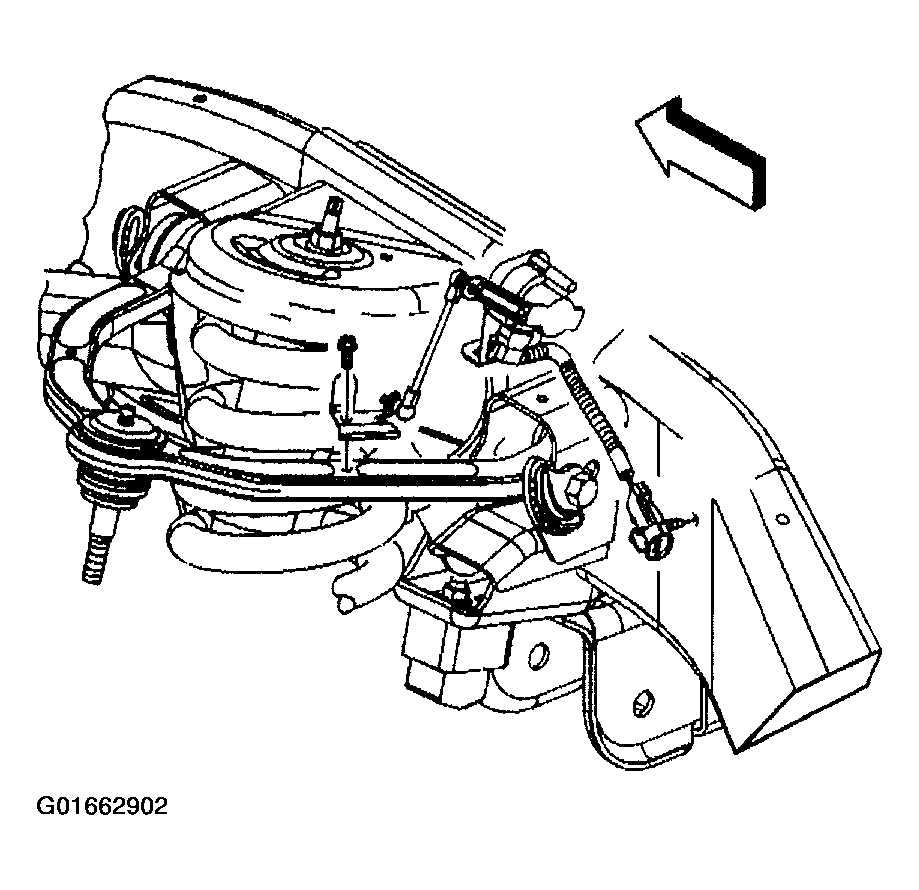

    6. Fig 1: Removing Wheel Speed Sensor Wire From RTD Sensor Bracket
    G01662902Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolt from the frame.
  7. Remove the position sensor from the vehicle.

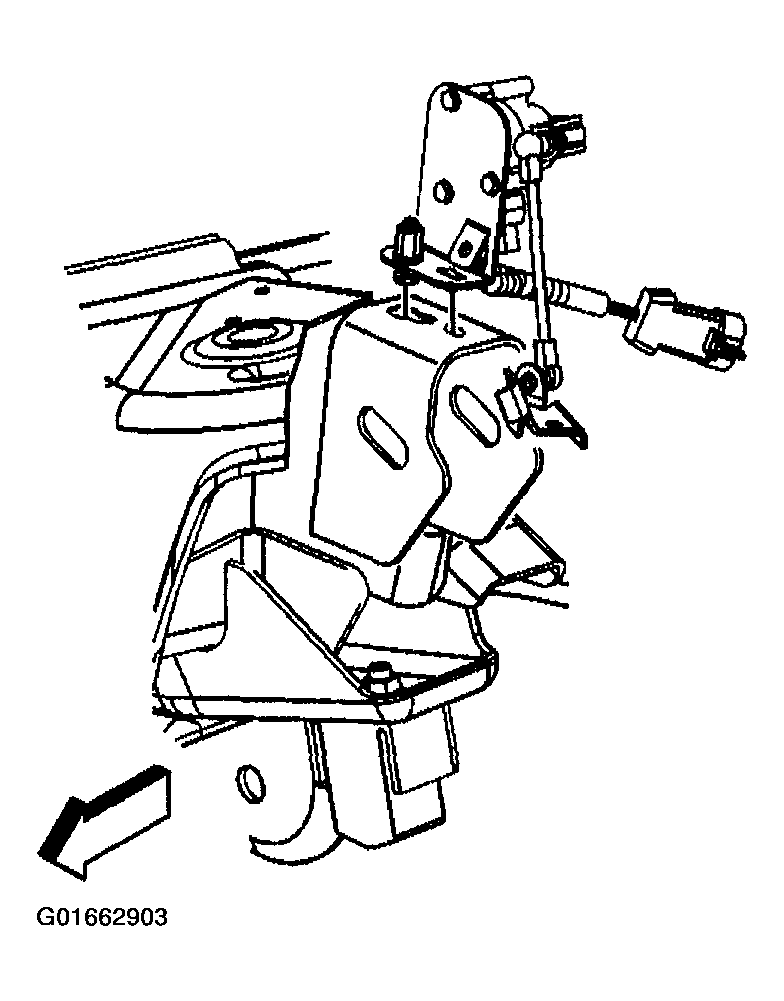

    Fig 2: Removing Position Sensor
    G01662903Courtesy of GENERAL MOTORS CORP.
