Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the J 38185  install to link rod to the ball stud on the sensor lever and the mounting bracket.

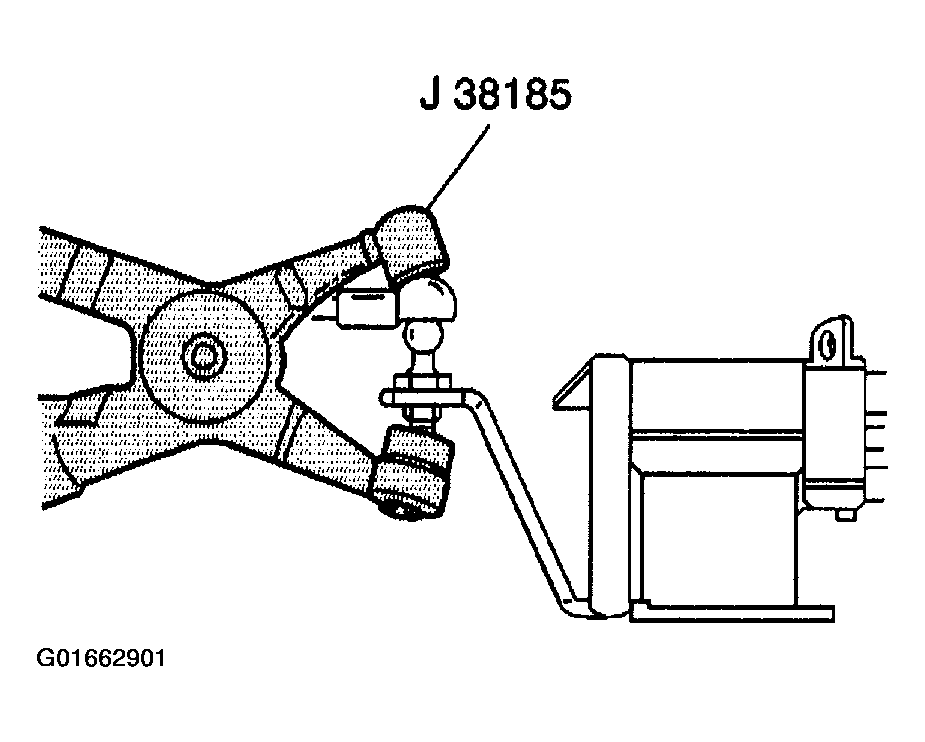

    2. Fig 1: Installing Link Rod To Ball Stud Using J 38185
    G01662901Courtesy of GENERAL MOTORS CORP.
  2. Install the RTD sensor to the vehicle. Refer to Front Position Sensor Replacement - Electronic Suspension (15 Series)  or Front Position Sensor Replacement - Electronic Suspension (25 Series 2WD)  or Front Position Sensor Replacement - Electronic Suspension (25 Series 4WD) .
