Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side interior trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (UTILITY) or TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (SUBURBAN) in Interior Trim.
  2. Disconnect the electrical connectors from the module.
  3. Remove the screw.
  4. Slide the module from the bracket and remove the module from the vehicle.

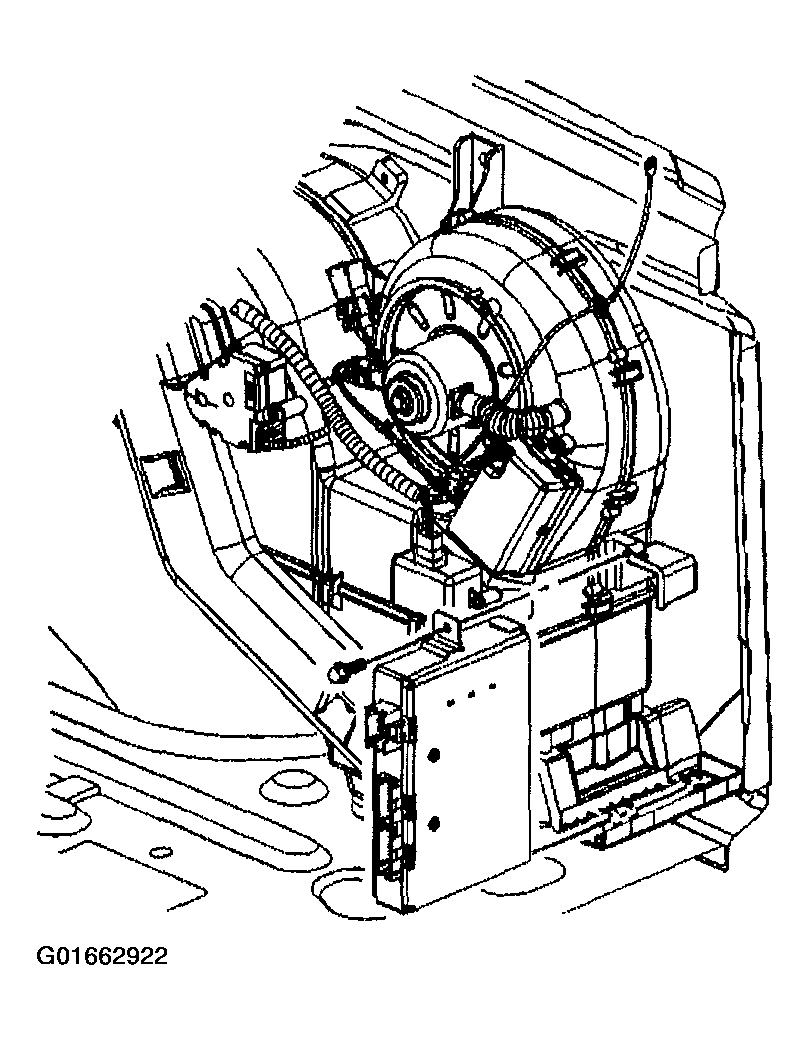

    Fig 1: Removing Electronic Suspension Control Module Replacement (Tahoe/Yukon/Escalade)
    G01662922Courtesy of GENERAL MOTORS CORP.
