Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.

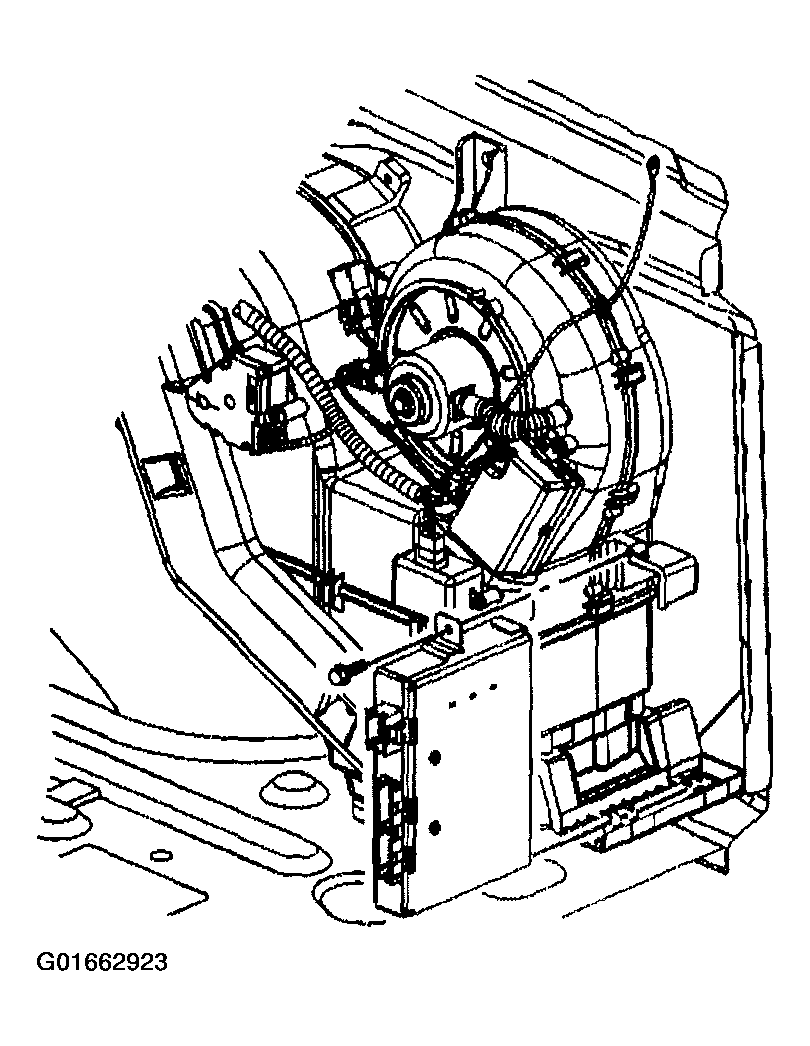

- Install the module to the vehicle by sliding the module into the bracket.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the screw.
Tighten
Tighten the screw to 1.6 N.m (14 lb in).
- Connect the electrical connectors to the module.
- If you are replacing the module you must recalibrate the module by performing the following procedure:
- Connect the scan tool to the data line connector (DLC).
- Turn the ignition ON with the engine OFF.
- Proceed per the instructions on the scan tool readout.
- Install the right side interior trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (UTILITY) or TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (SUBURBAN) in Interior Trim.
