Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull up on the handle at the rear of the seat to gain access to the control module.
  2. Remove the retainers (1) from the control module cover (2).

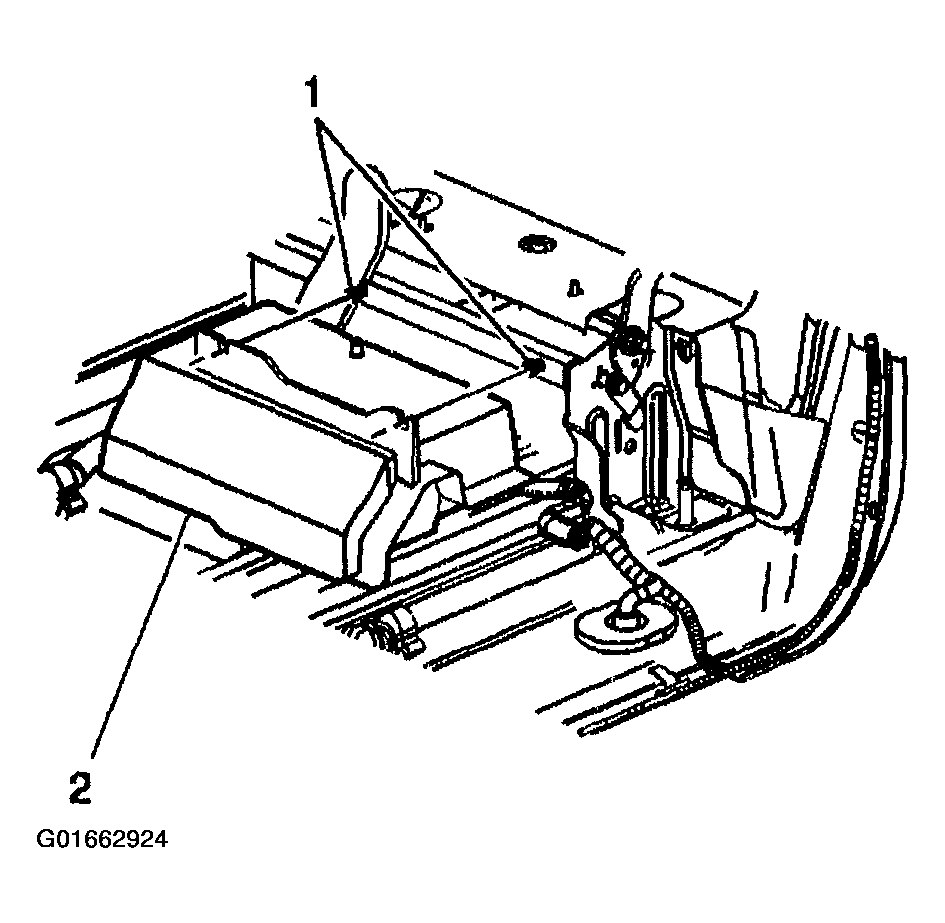

    Fig 1: Control Module Cover & Retainers
    G01662924Courtesy of GENERAL MOTORS CORP.
  3. Remove the cover (1) from the vehicle.
  4. Disconnect the wiring harness (2) from the control module (3).

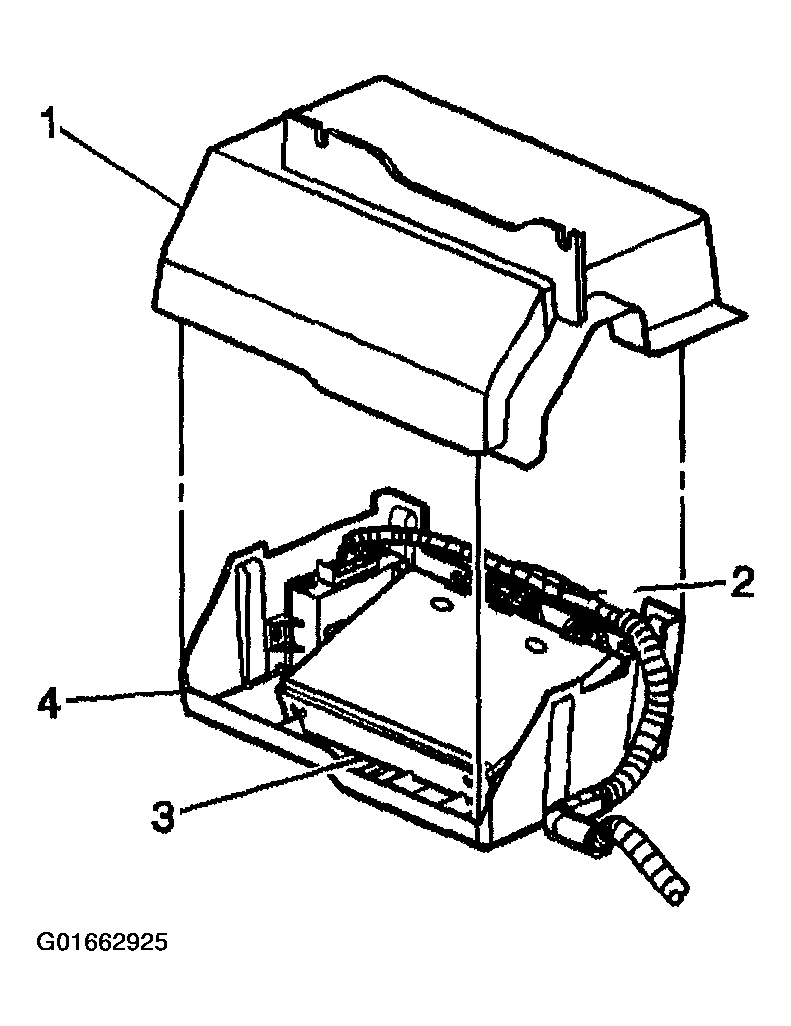

    Fig 2: Control Module, Cover & Wiring Harness
    G01662925Courtesy of GENERAL MOTORS CORP.
  5. Remove the control module (1) from the vehicle.

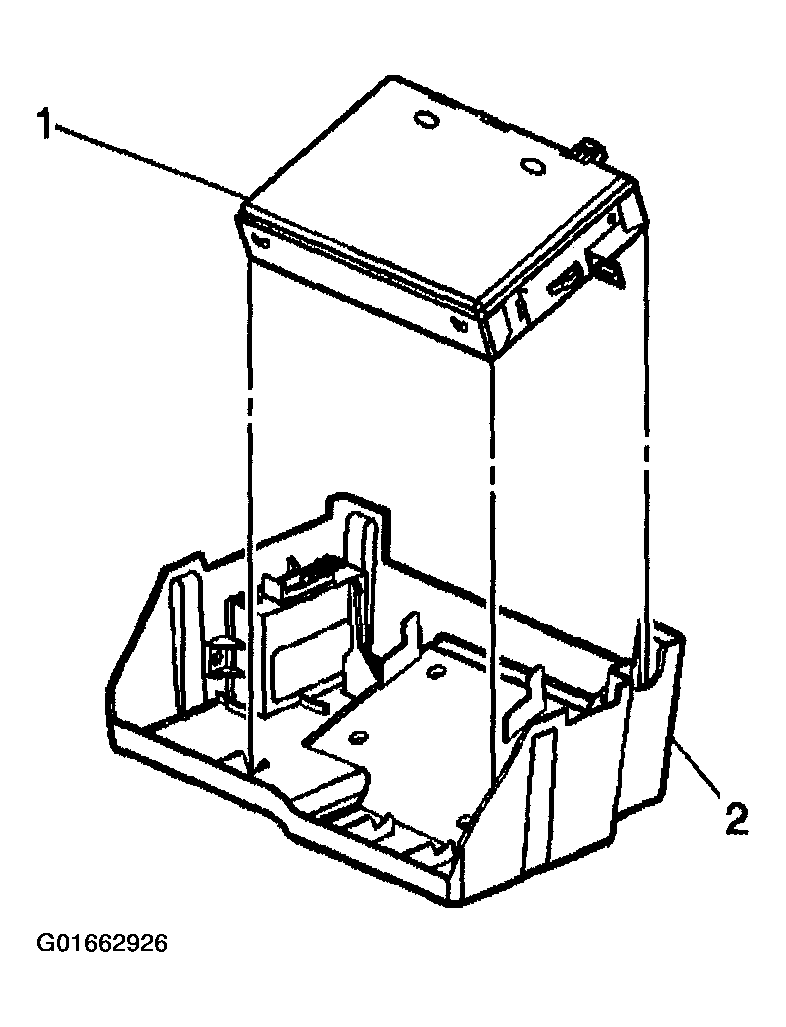

    Fig 3: Removing Control Module
    G01662926Courtesy of GENERAL MOTORS CORP.
