Cycle Outputs

WARNING: This page is about a different car, the 2002 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.

A scan tool may be used in order to command the suspension damper solenoids and SERVICE RIDE CONTROL message ON or OFF. This can be very helpful in determining if a certain portion of a circuit or a component is in working order. The following tests are available under the Special Functions selection. The following can be commanded ON or OFF:

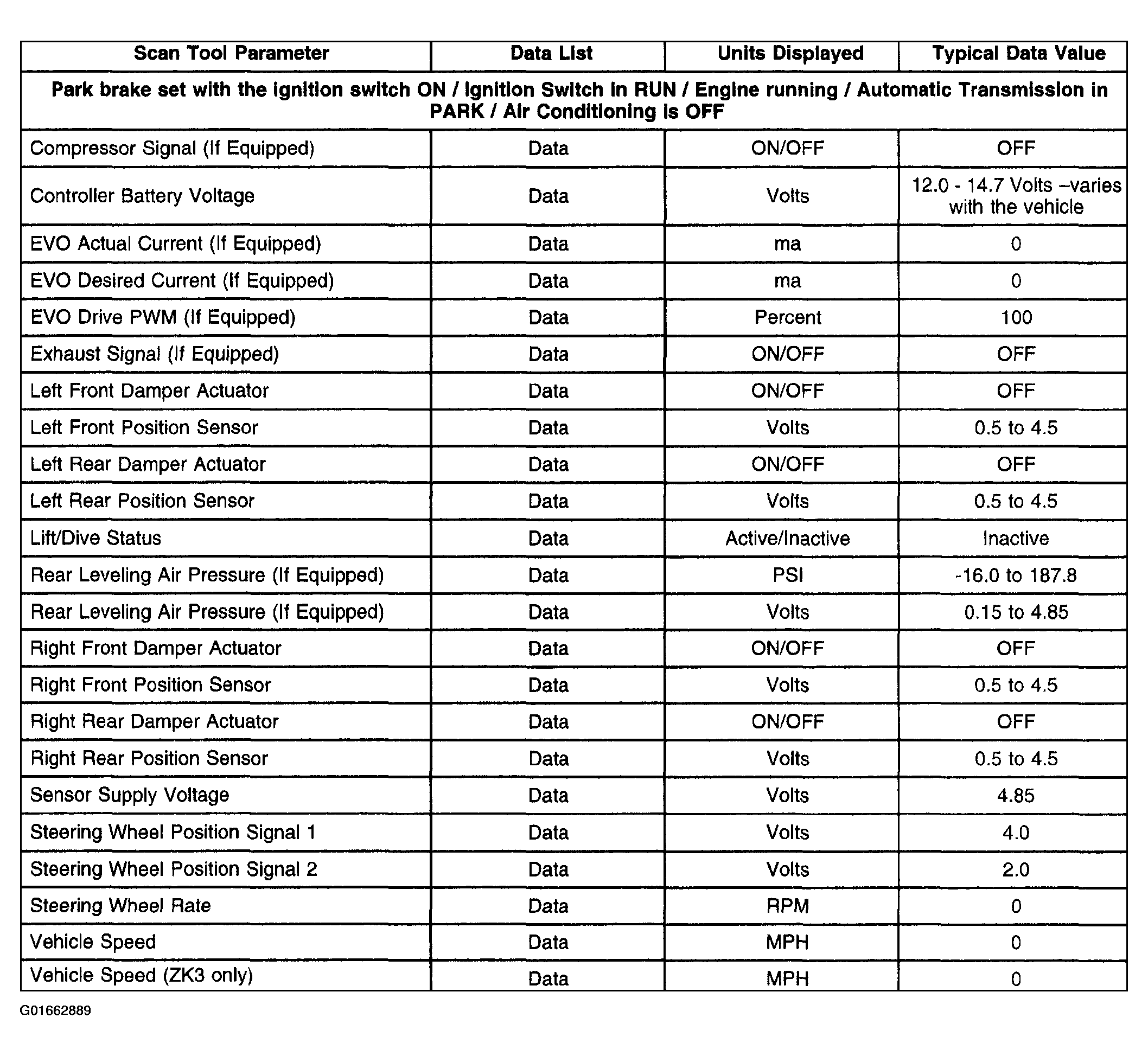

Fig 1: RTD Scan Tool Data List
G01662889Courtesy of GENERAL MOTORS CORP.
