Suspension Controls Connector End Views

WARNING: This page is about a different car, the 2002 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.

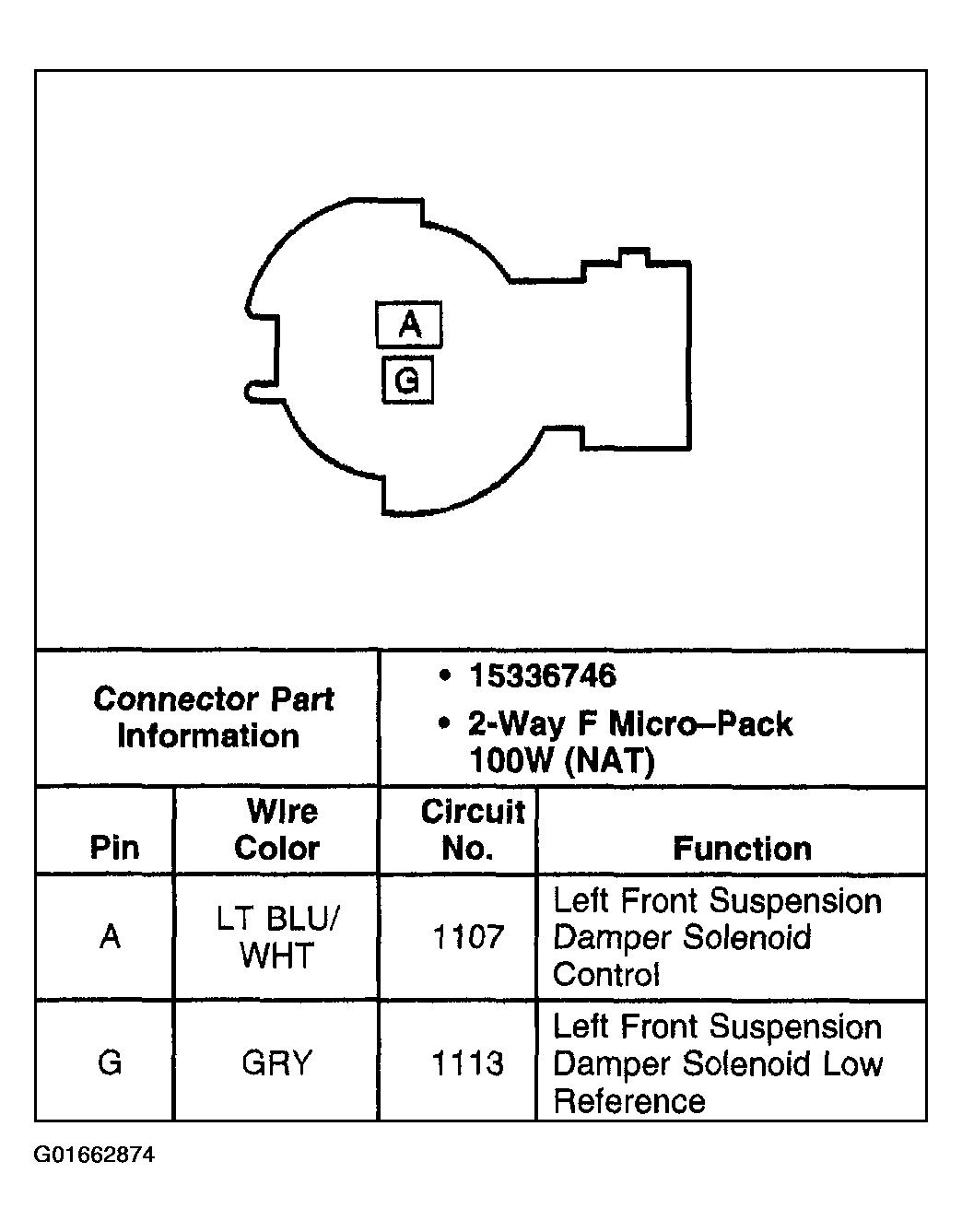

Fig 1: Shock Damper Solenoid - LF

Courtesy of GENERAL MOTORS CORP.

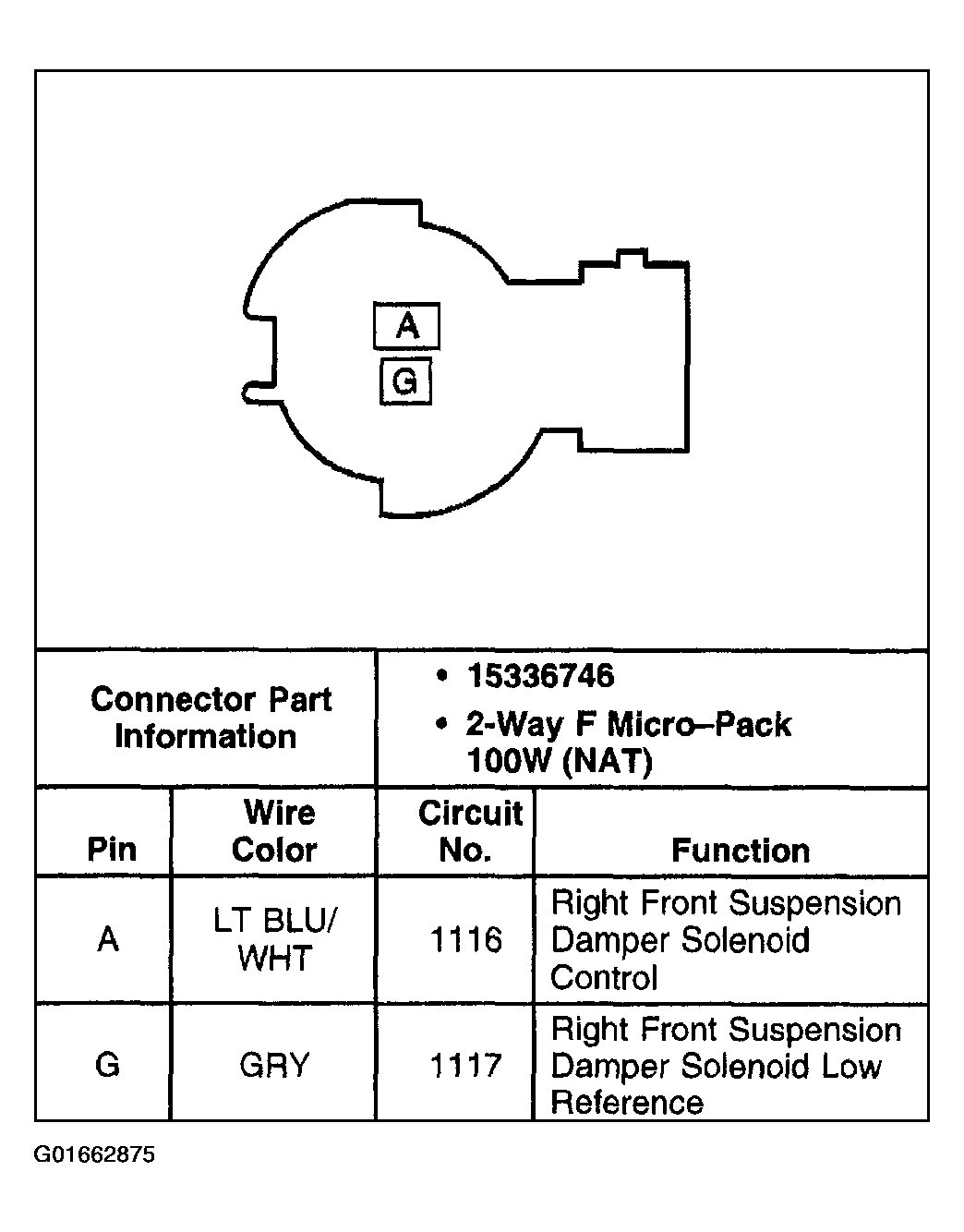

Fig 2: Shock Damper Solenoid - RF

Courtesy of GENERAL MOTORS CORP.

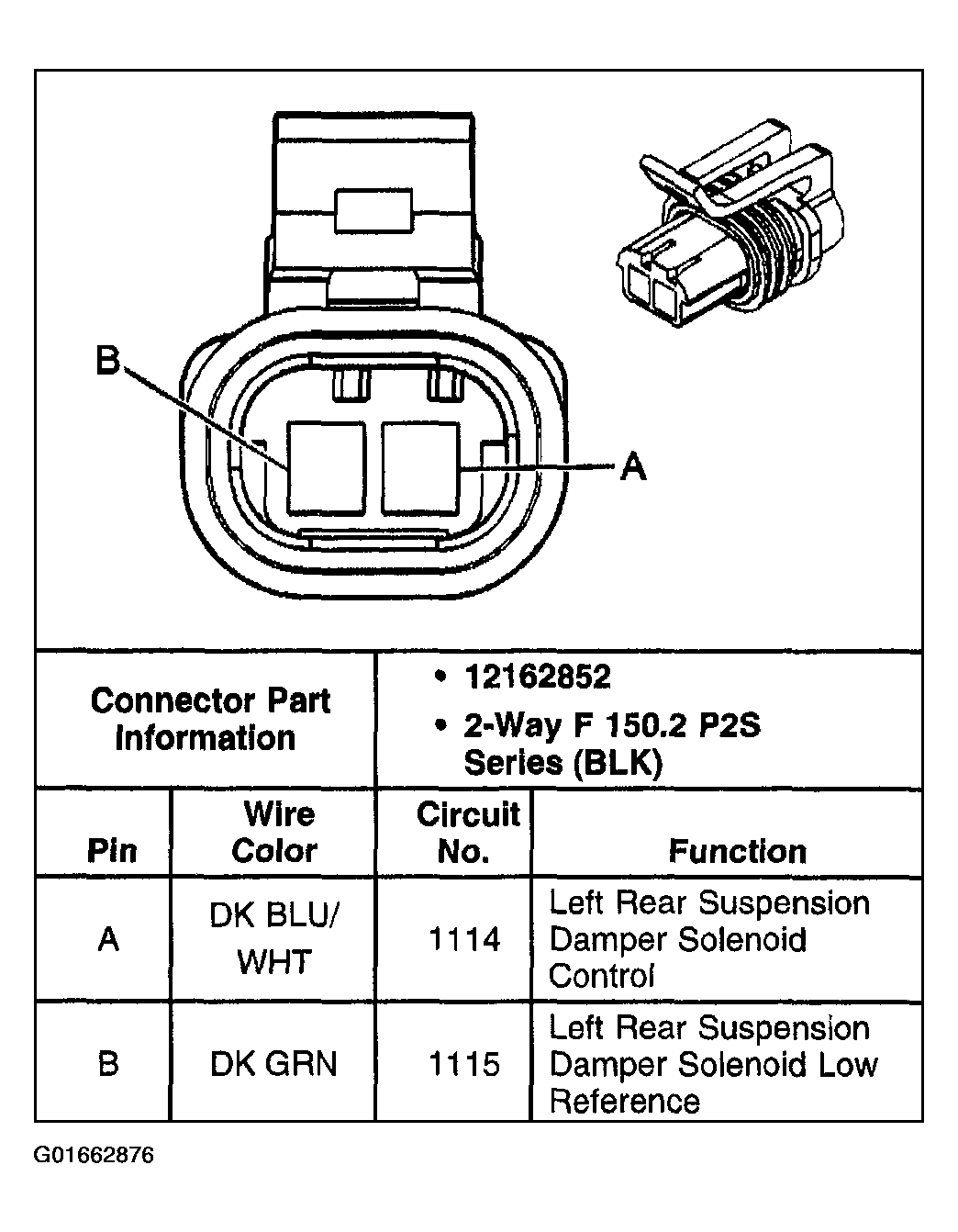

Fig 3: Shock Damper Solenoid - LR

Courtesy of GENERAL MOTORS CORP.

Fig 4: Shock Damper Solenoid - RR

Courtesy of GENERAL MOTORS CORP.

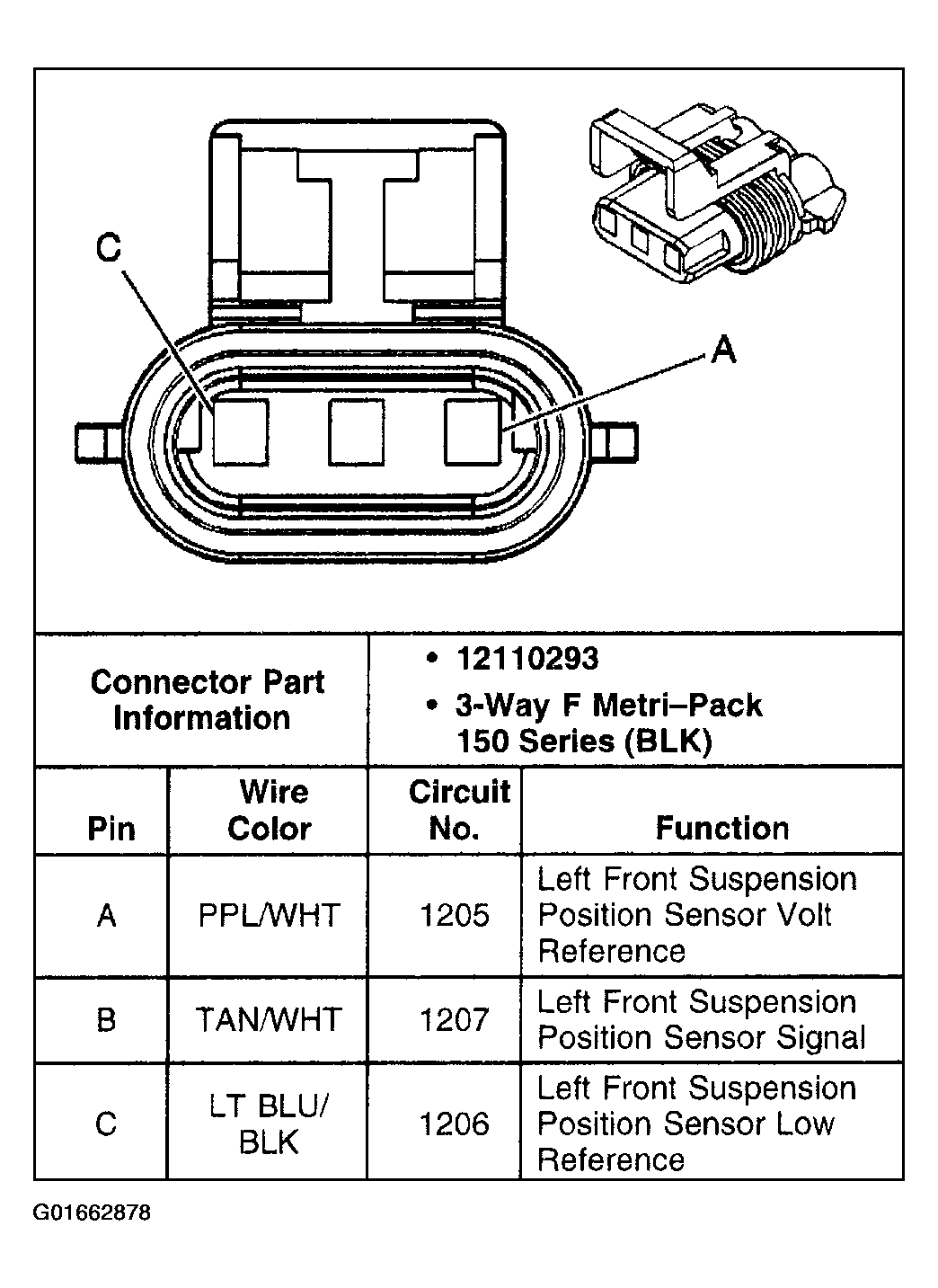

Fig 5: Suspension Position Sensor - LF

Courtesy of GENERAL MOTORS CORP.

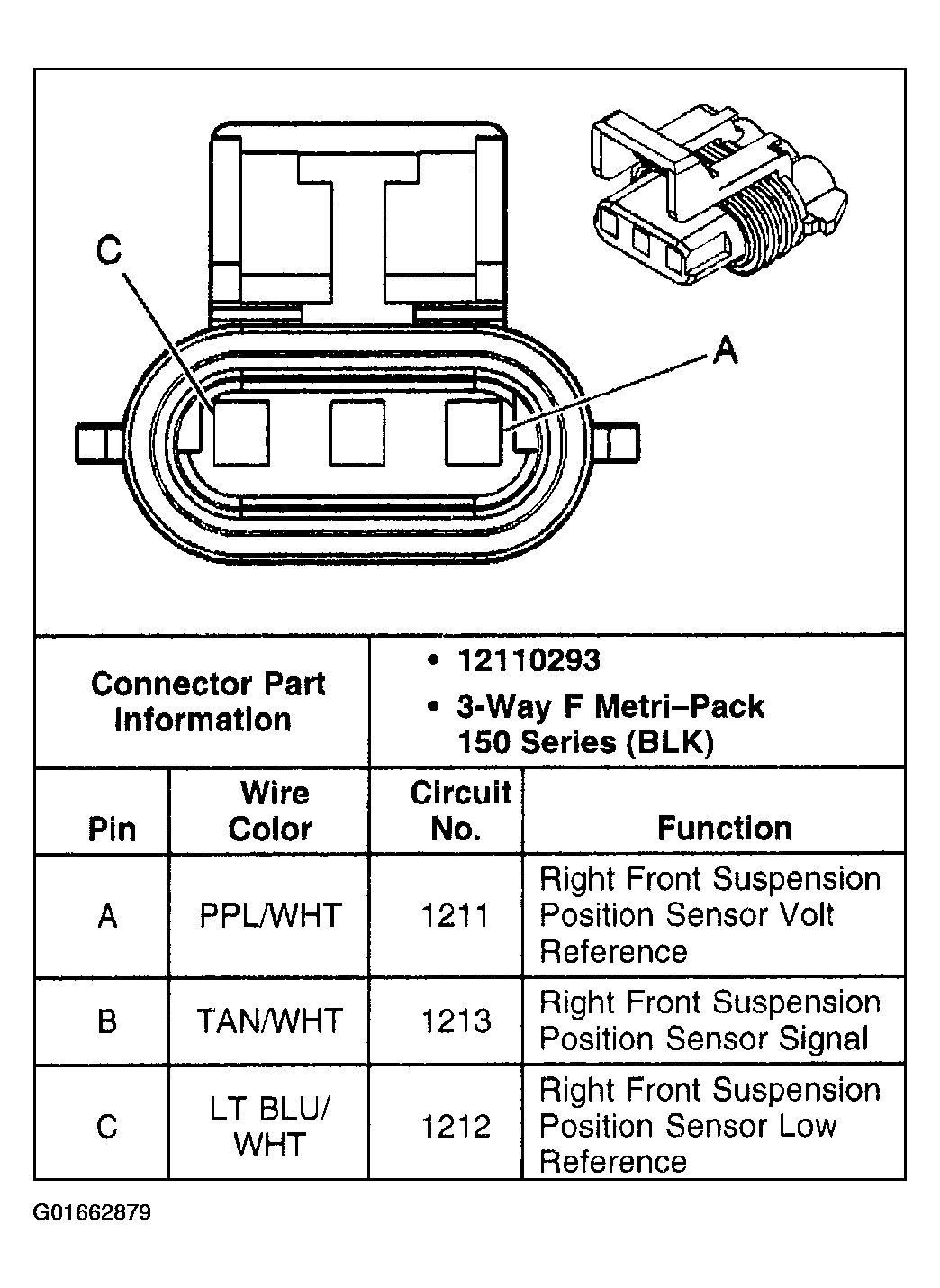

Fig 6: Suspension Position Sensor - RF

Courtesy of GENERAL MOTORS CORP.

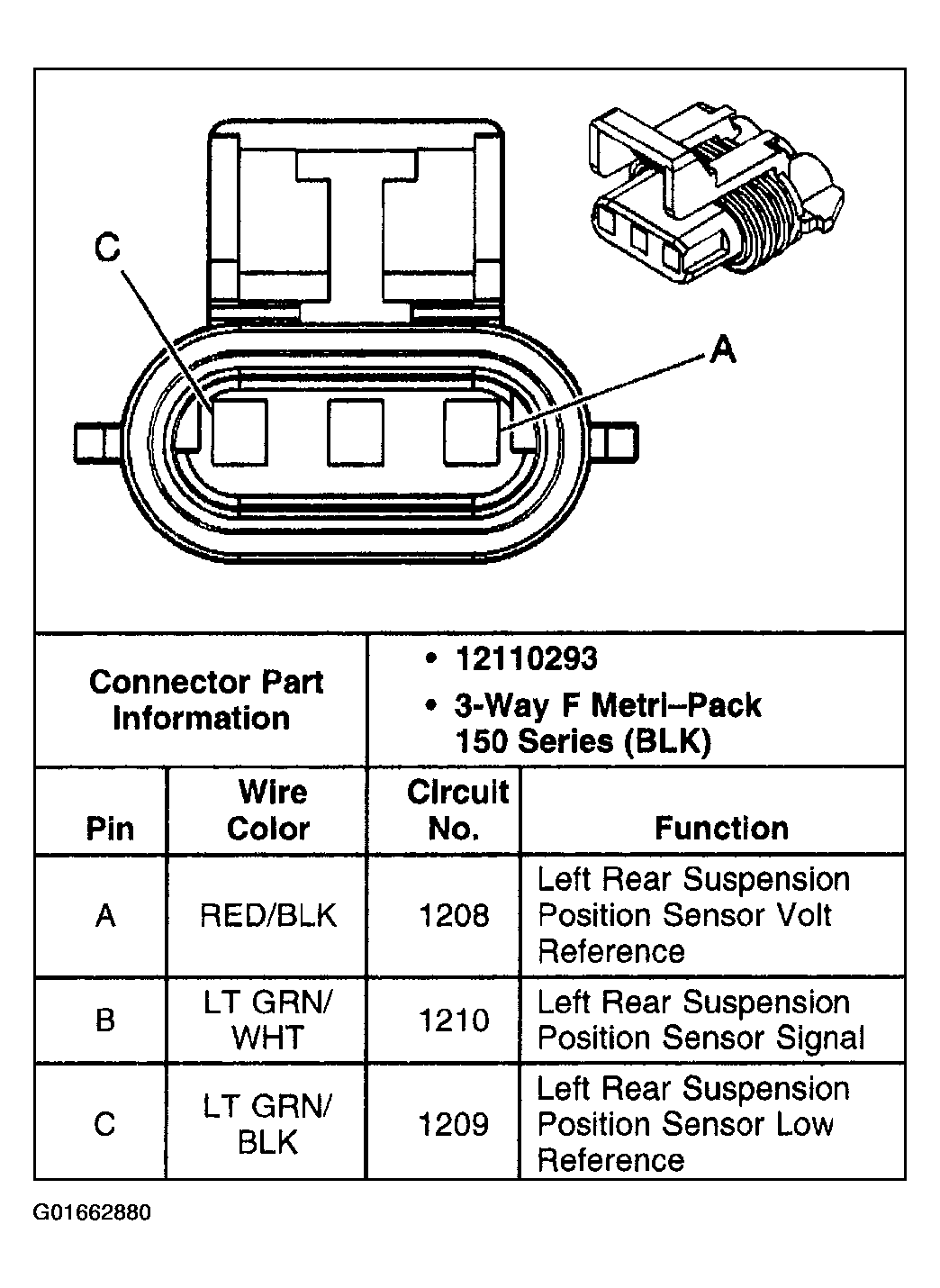

Fig 7: Suspension Position Sensor - LR

Courtesy of GENERAL MOTORS CORP.

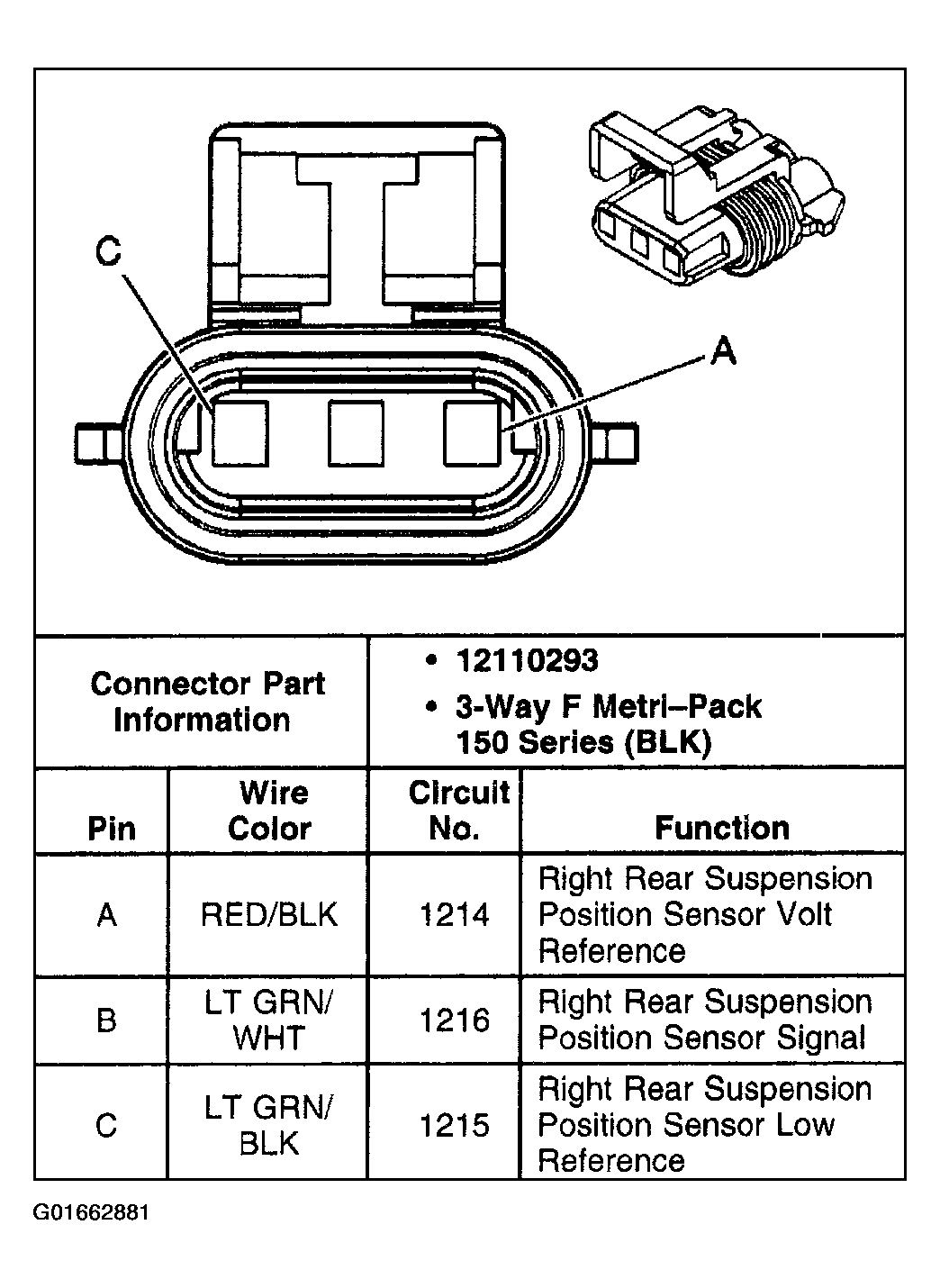

Fig 8: Suspension Position Sensor - RR

Courtesy of GENERAL MOTORS CORP.

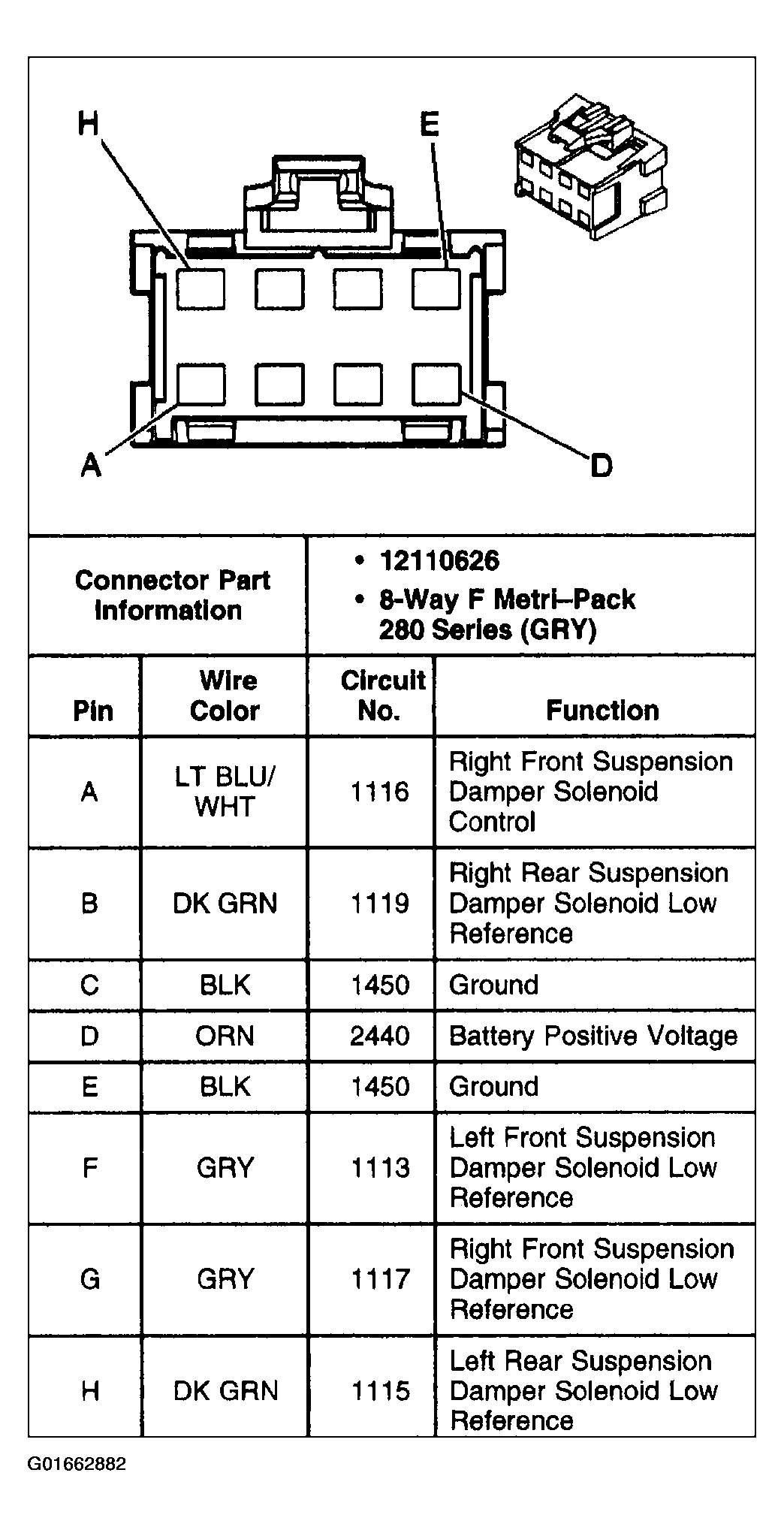

Fig 9: Suspension Control Module - C1

Courtesy of GENERAL MOTORS CORP.

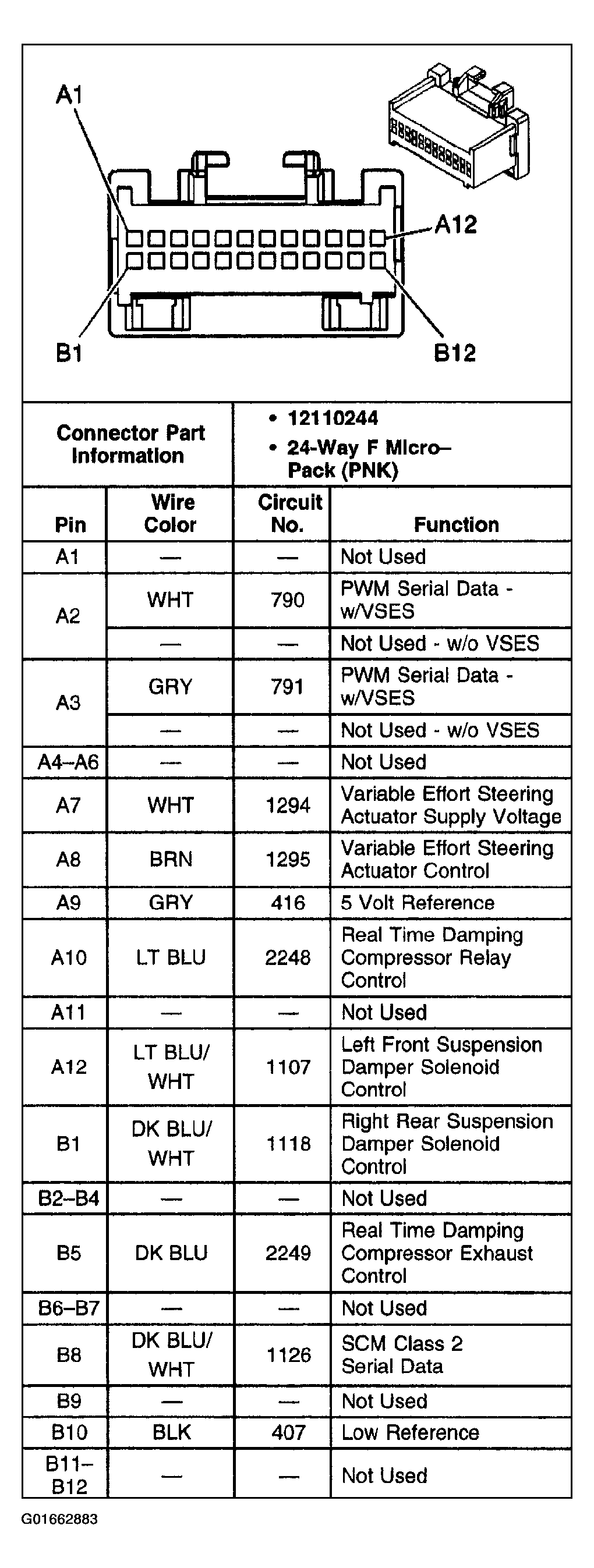

Fig 10: Suspension Control Module - C2

Courtesy of GENERAL MOTORS CORP.

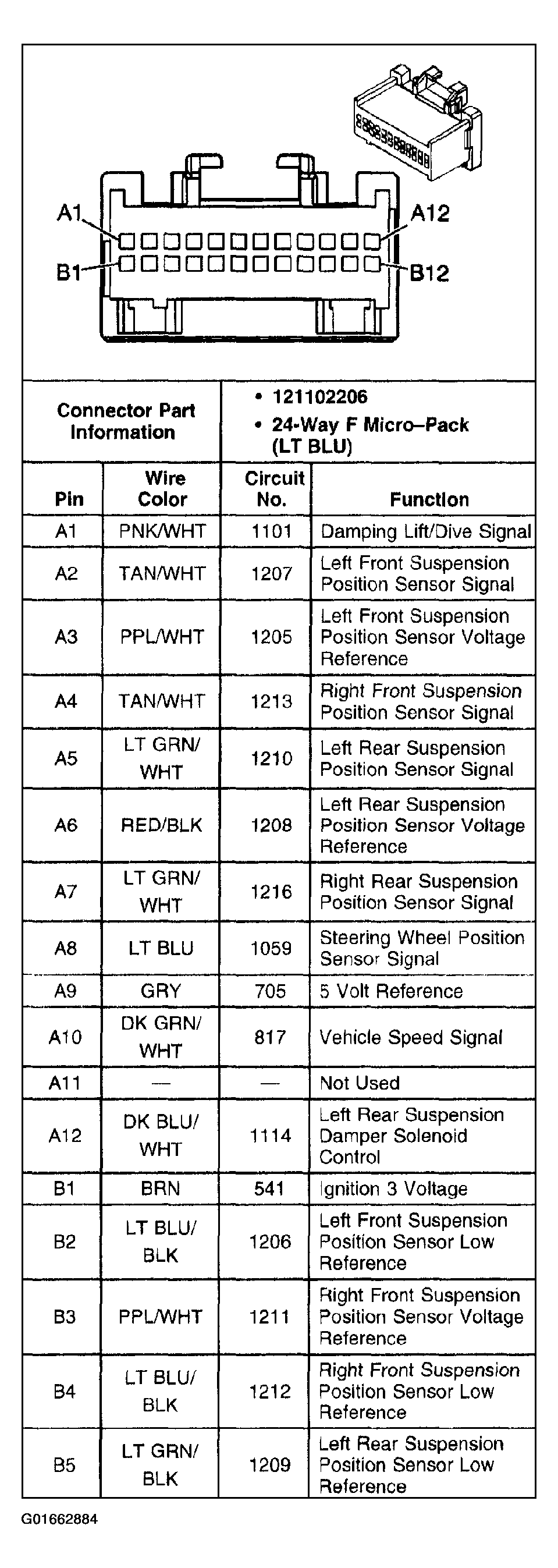

Fig 11: Suspension Control Module - C3 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

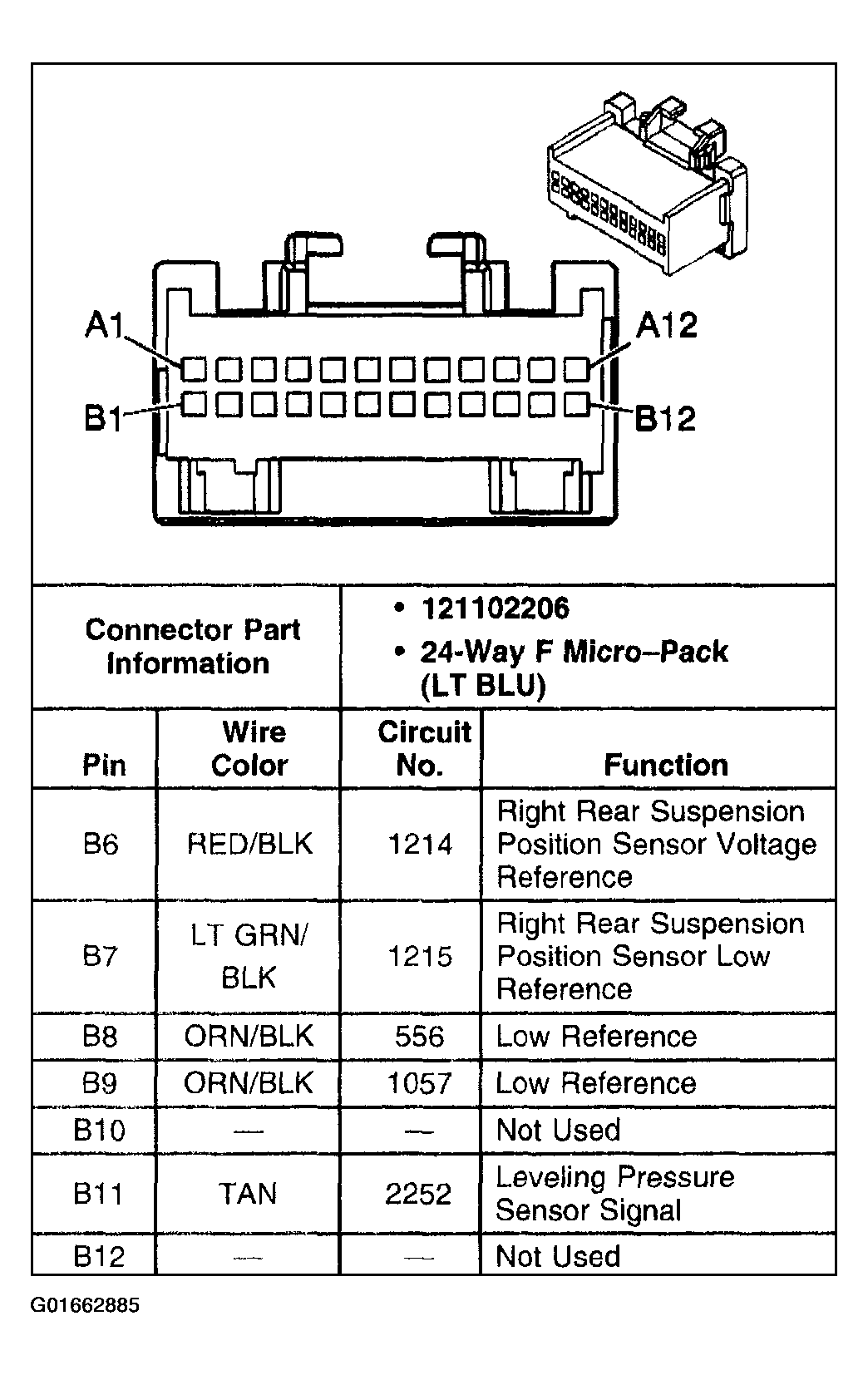

Fig 12: Suspension Control Module - C3 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
