Suspension Controls Component Views

WARNING: This page is about a different car, the 2002 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.

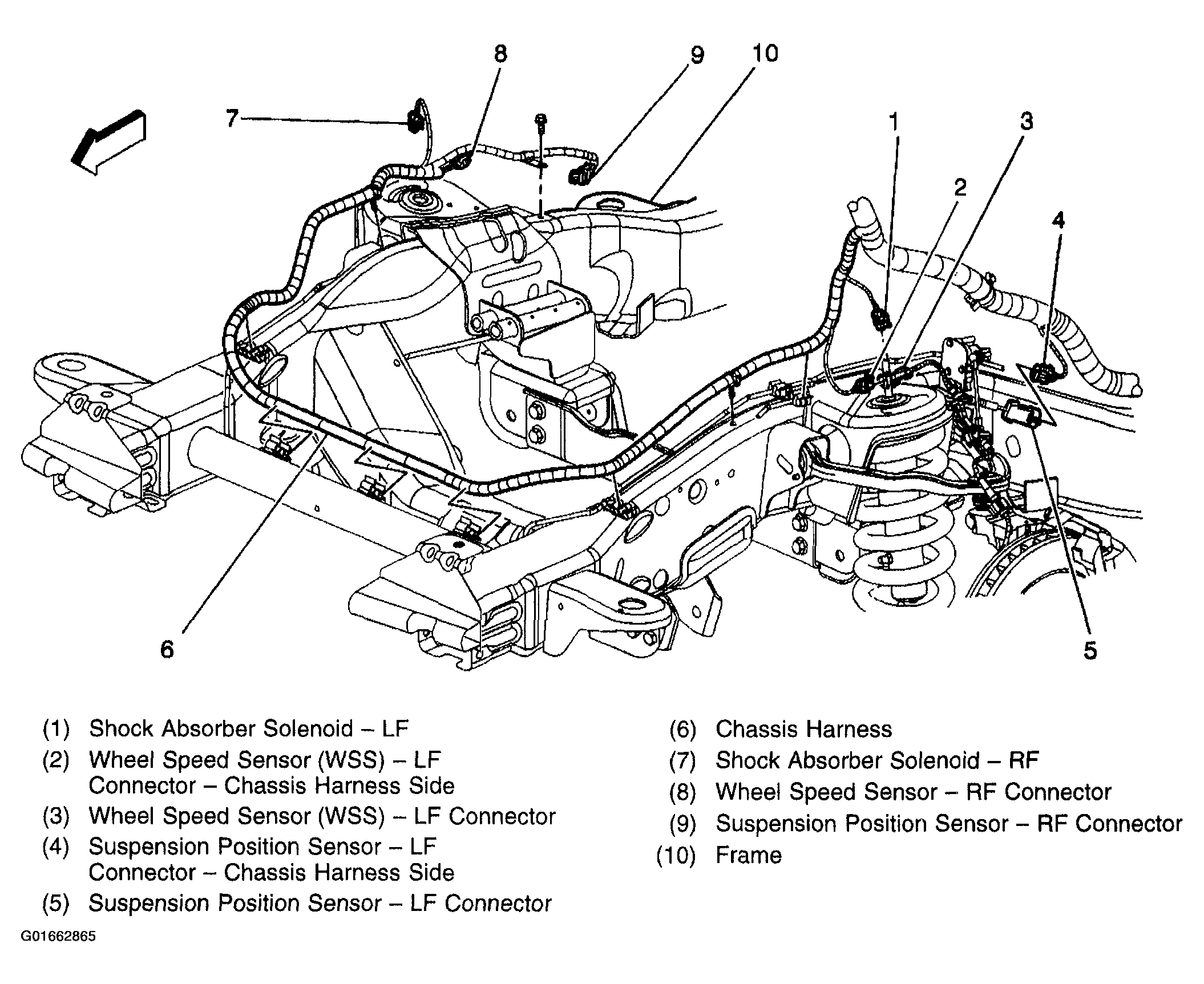

Fig 1: Chassis Wiring Harness to Front Frame Components - 25 Series 3/4 Ton

Courtesy of GENERAL MOTORS CORP.

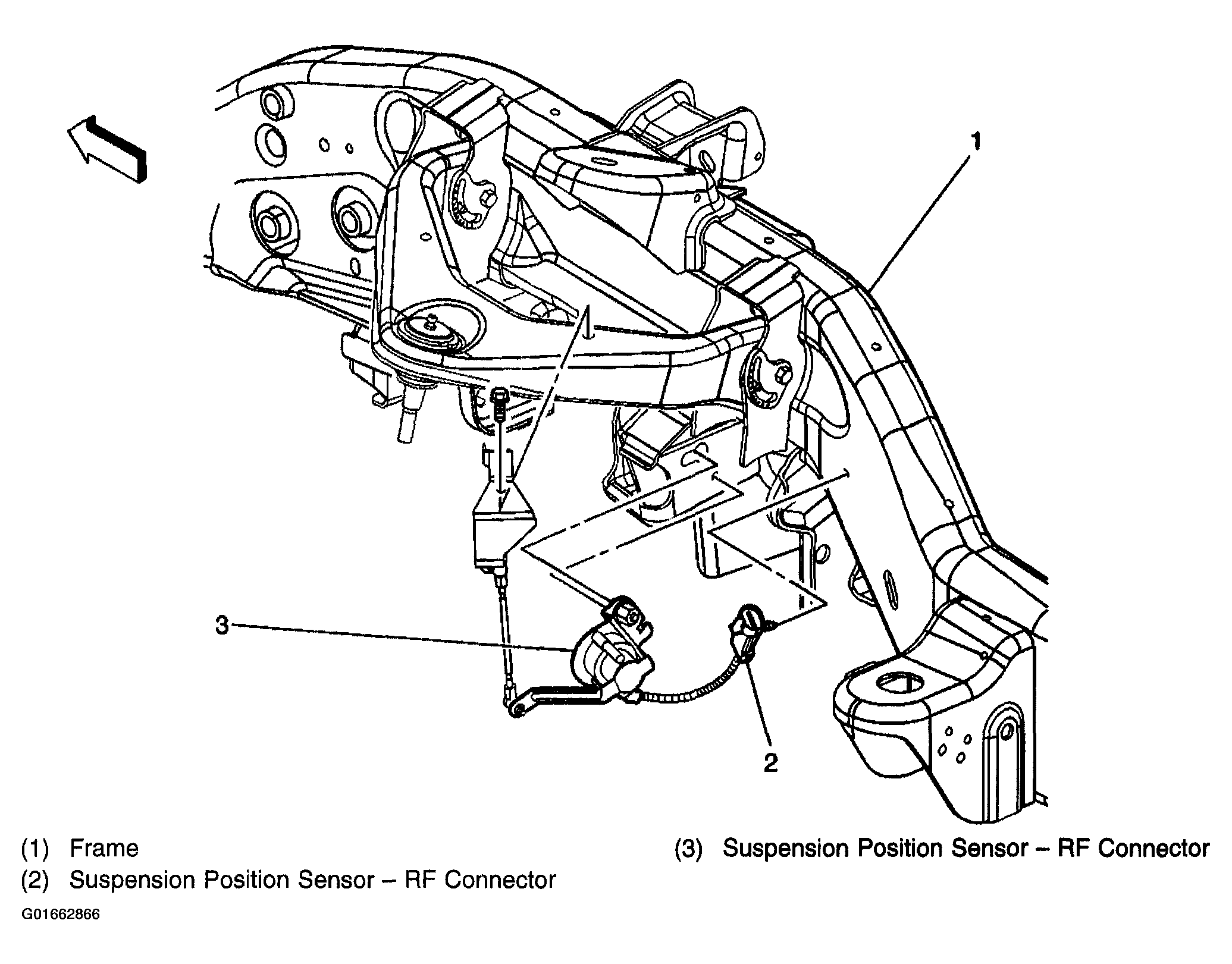

Fig 2: Suspension Position Sensor Components - RF - 25 Series Suburban Only

Courtesy of GENERAL MOTORS CORP.

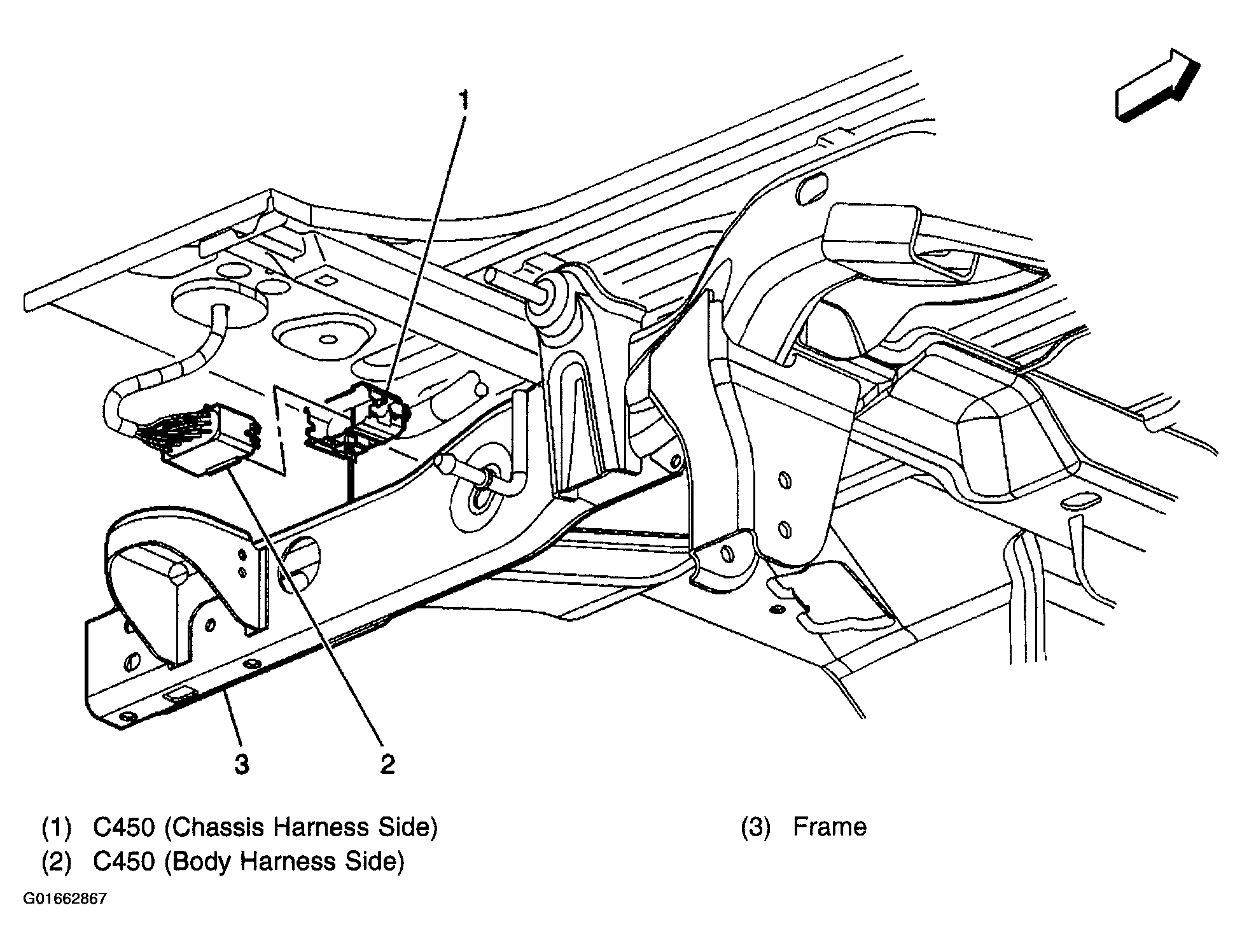

Fig 3: Real Time Damping Connector to Body Wiring Harness Components

Courtesy of GENERAL MOTORS CORP.

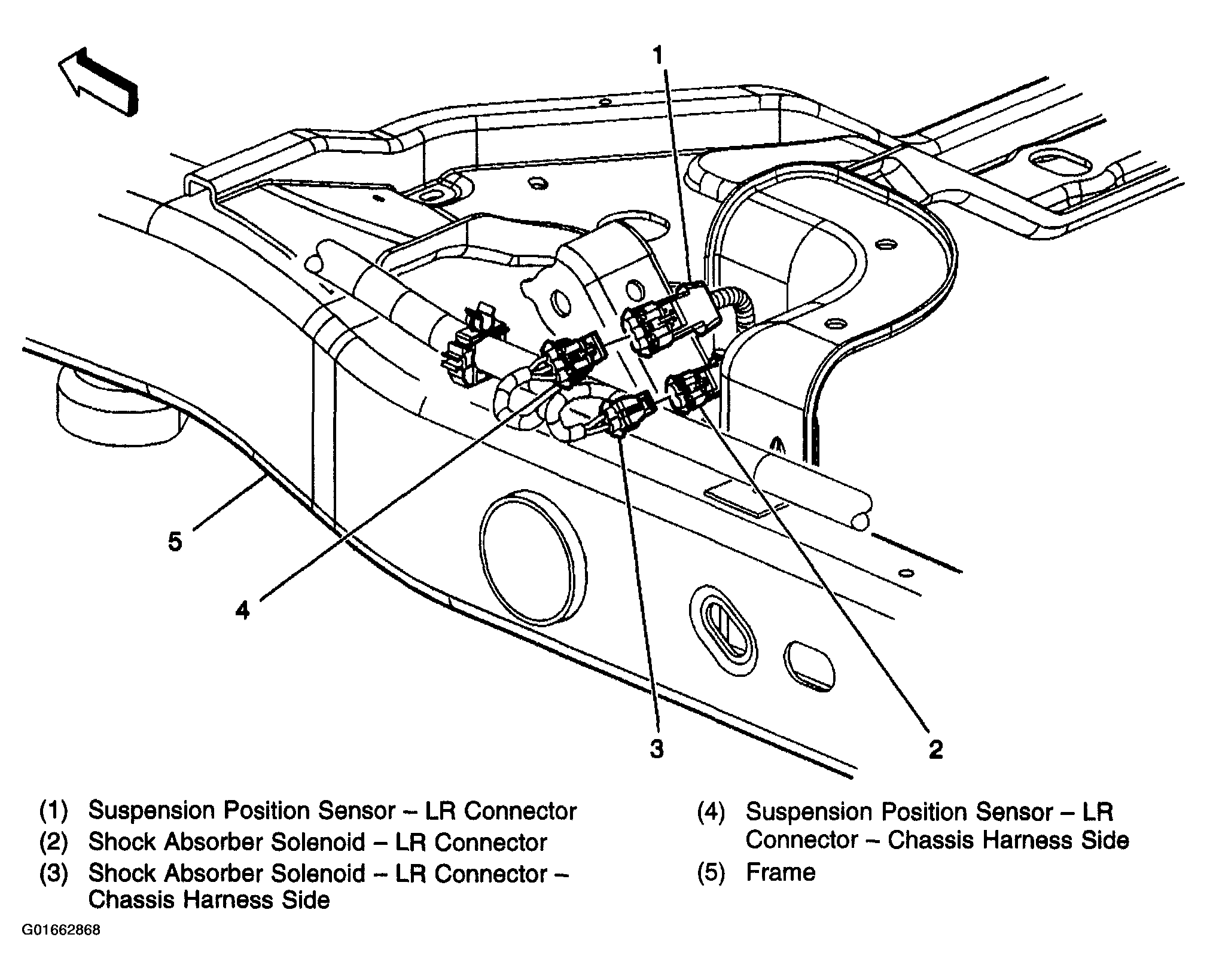

Fig 4: Chassis Wiring Harness to Rear Position Sensor Components - LR - 25 Series

Courtesy of GENERAL MOTORS CORP.

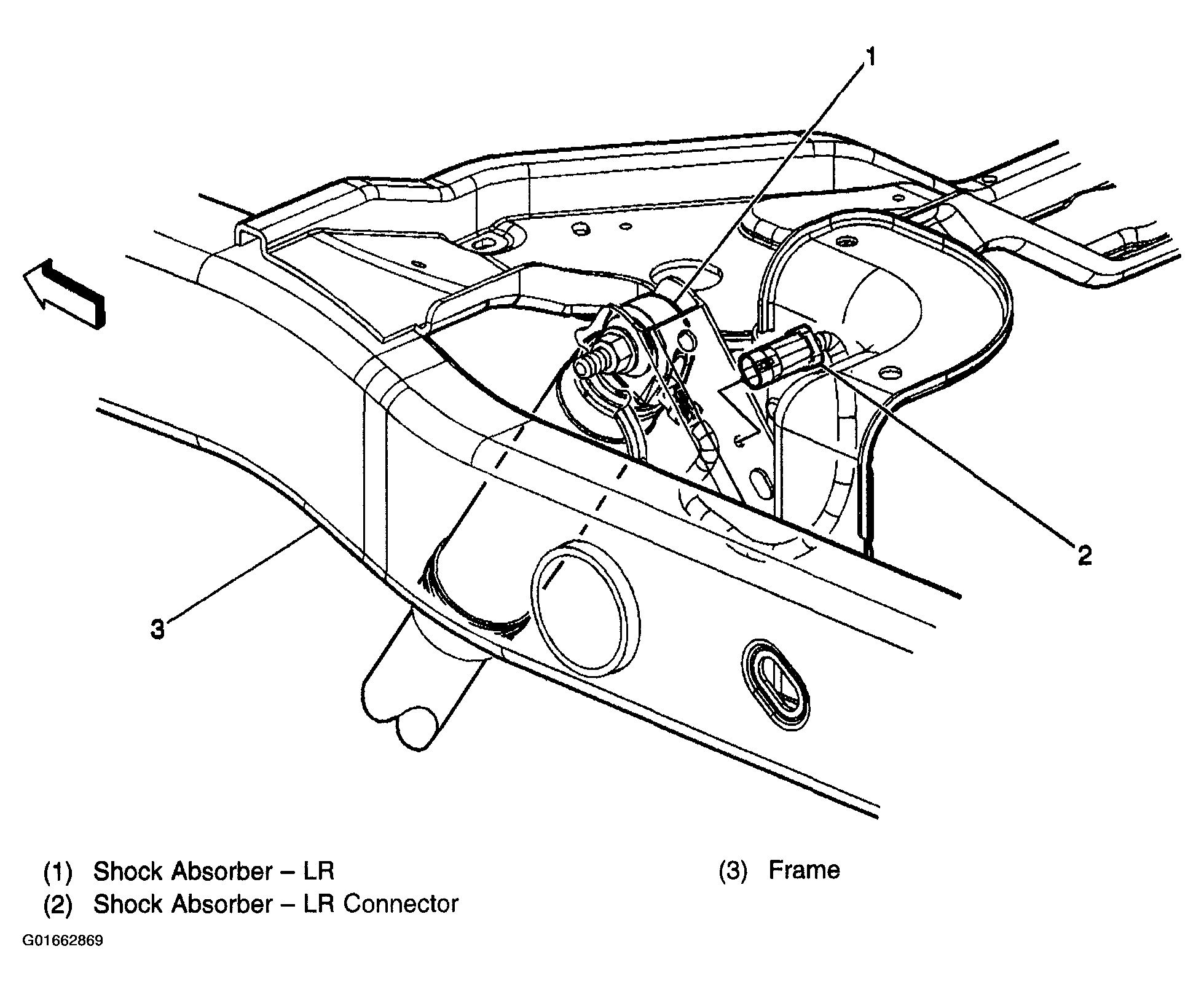

Fig 5: Shock Absorber Jumper Harness Components - LR Connector - 25 Series Only

Courtesy of GENERAL MOTORS CORP.

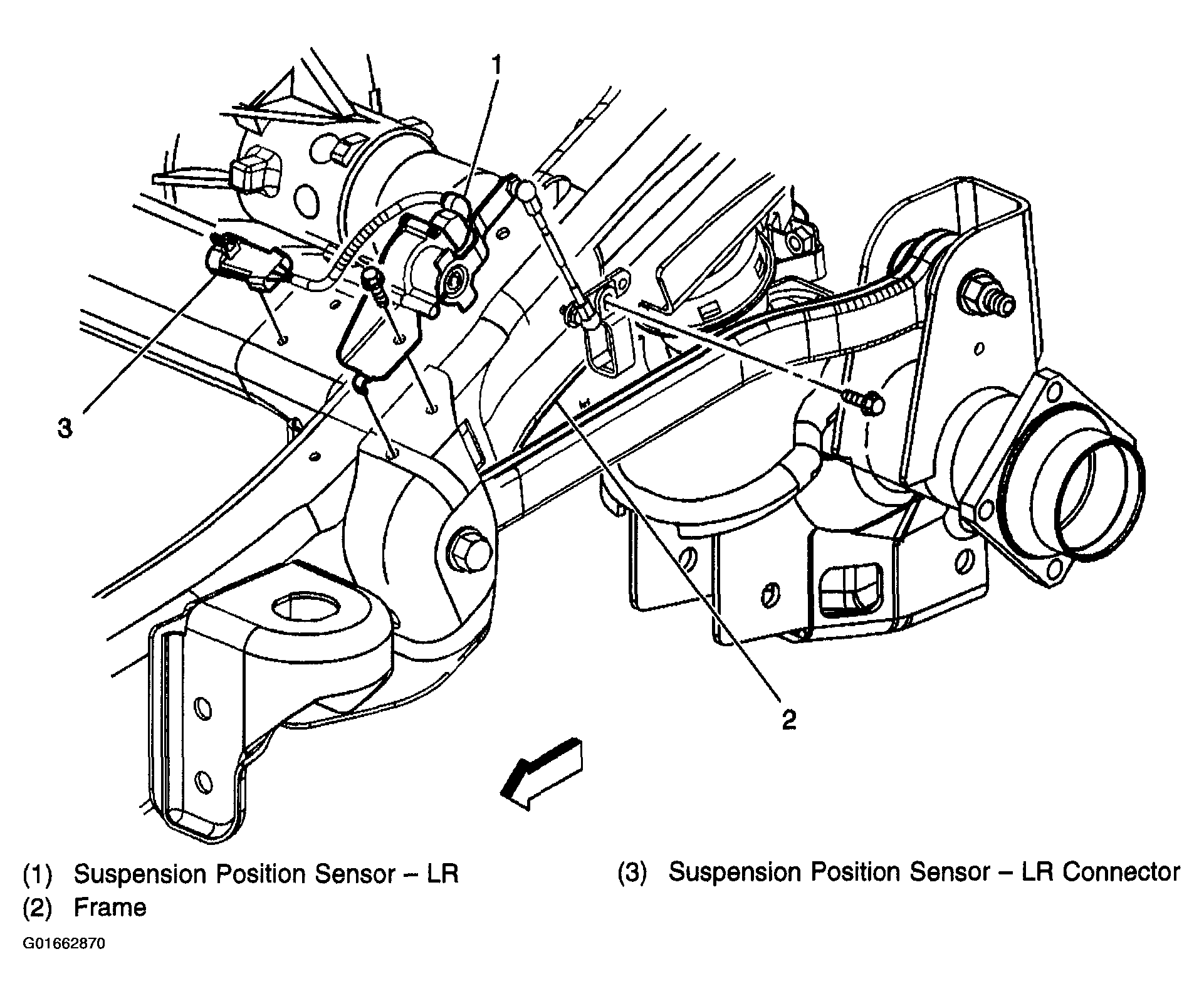

Fig 6: Suspension Position Sensor Components - LR - 15 Series

Courtesy of GENERAL MOTORS CORP.

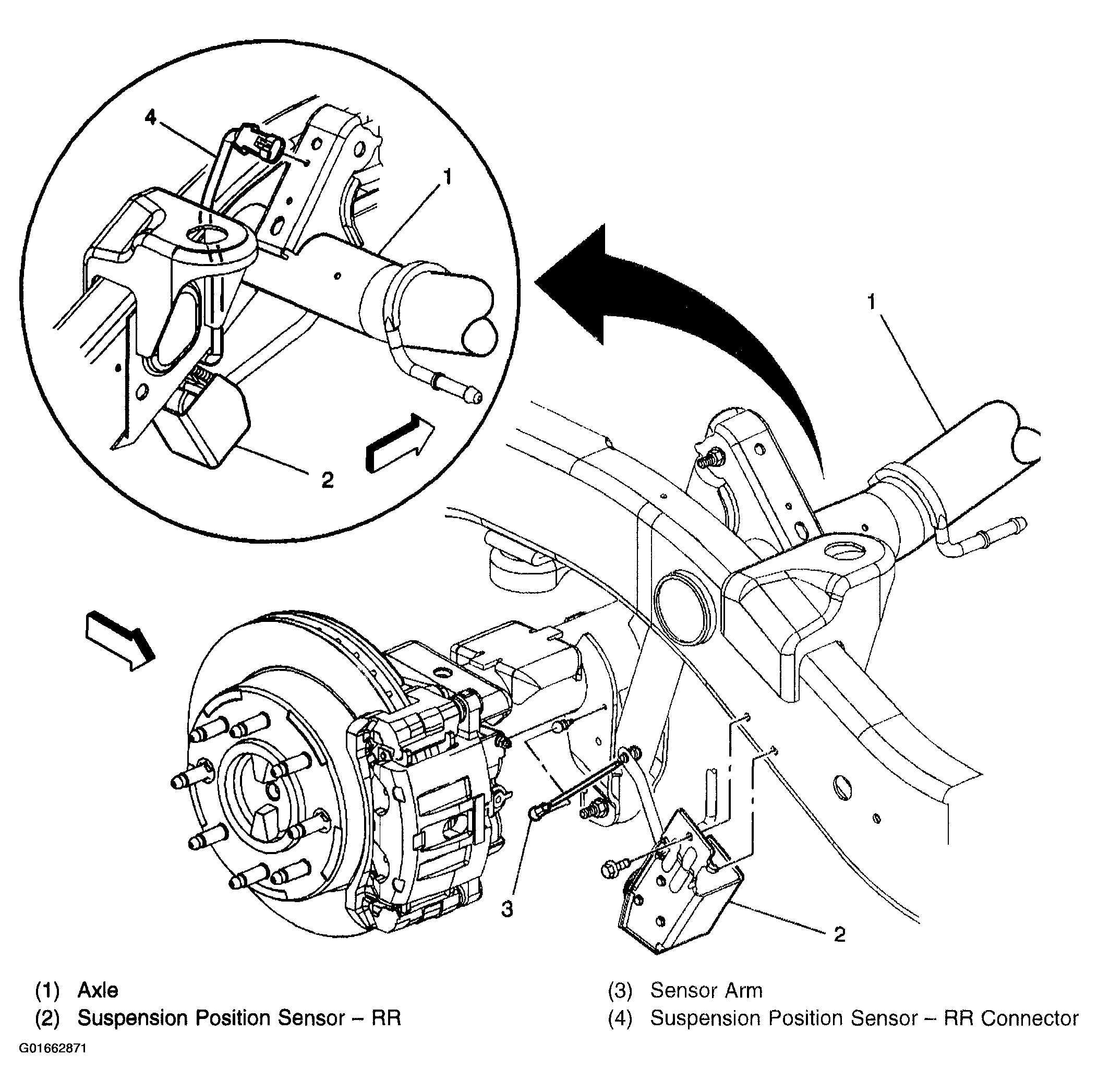

Fig 7: Suspension Position Sensor Components - RR - 25 Series

Courtesy of GENERAL MOTORS CORP.

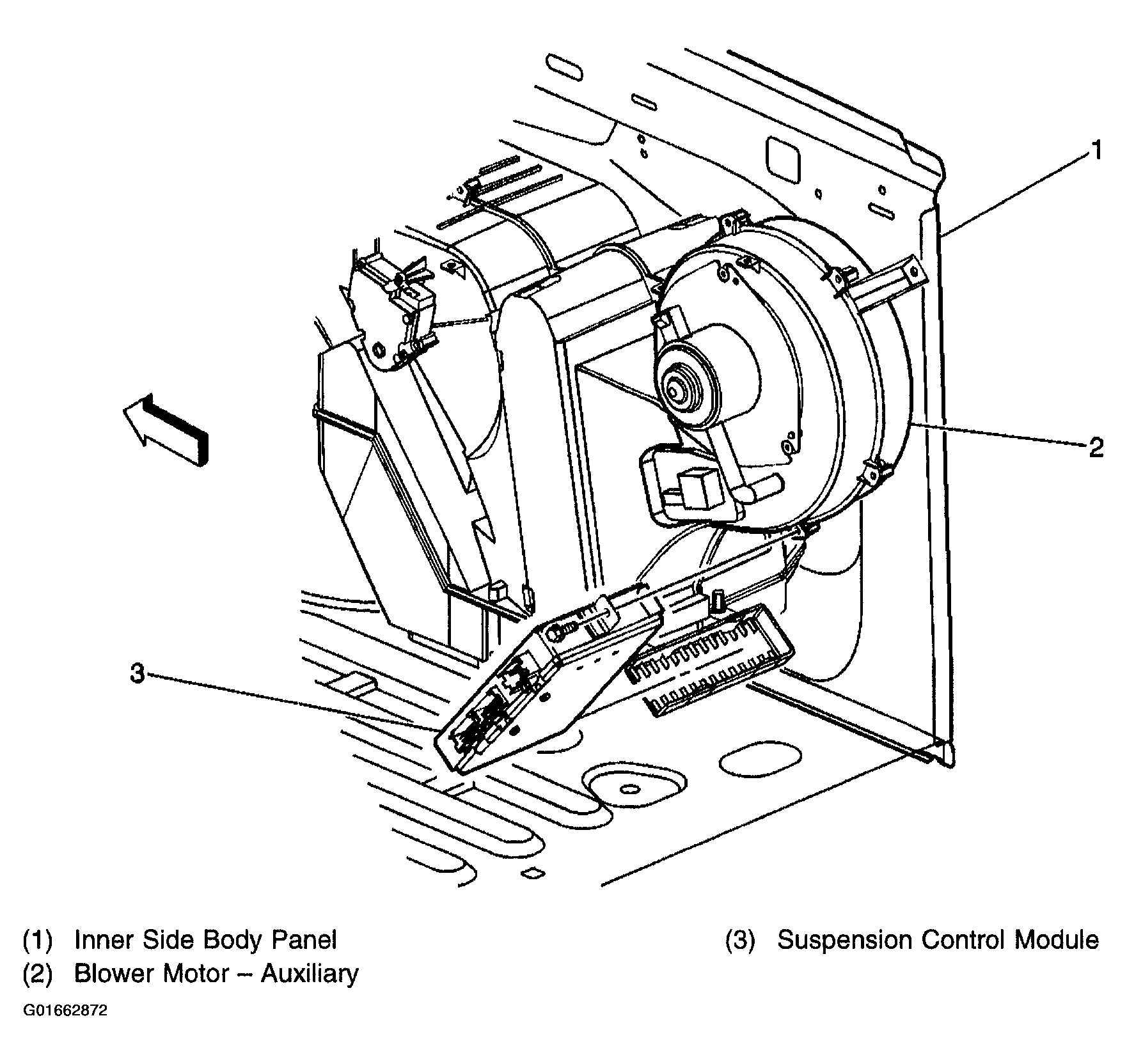

Fig 8: Suspension Control Module Components - Suburban/Yukon XL

Courtesy of GENERAL MOTORS CORP.

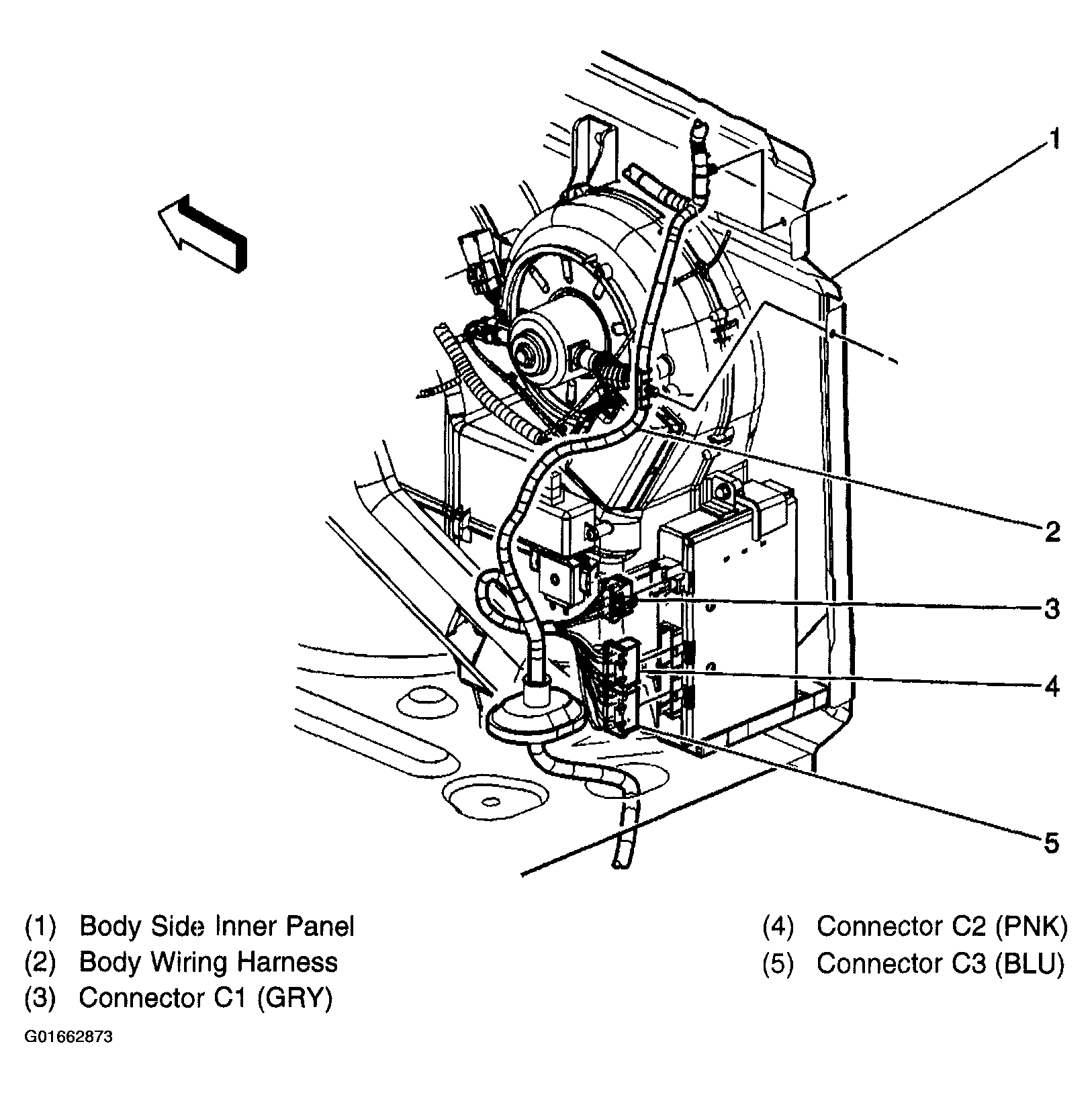

Fig 9: Suspension Control Module Connectors

Courtesy of GENERAL MOTORS CORP.
