Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

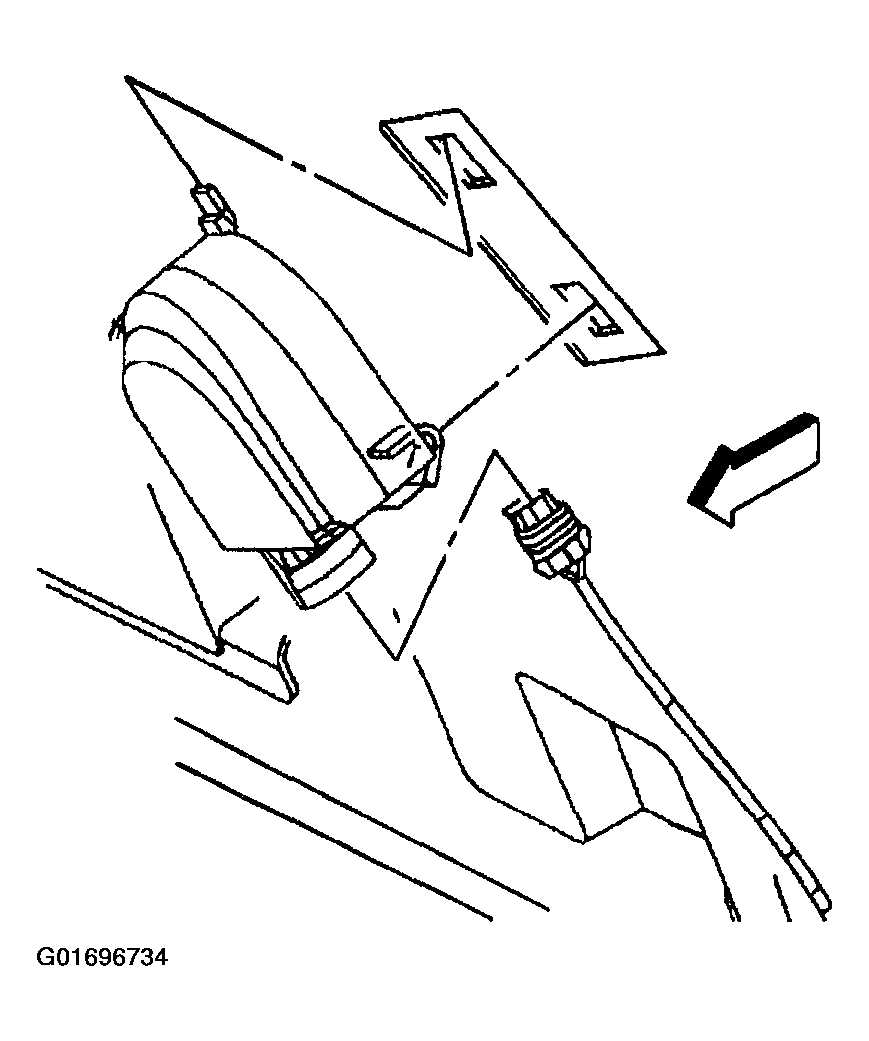

Fig 1: Underhood Lamp

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connector.
Squeeze the lower tab. Remove the underhood lamp from the hood.

Fig 2: Lens Cover

Courtesy of GENERAL MOTORS CORP.

Remove the lens cover. Use a small screw driver in order to pry the cover off.

Fig 3: Bulb

Courtesy of GENERAL MOTORS CORP.

Remove the bulb from the socket.
