Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure the headlamp switch is in the OFF position.
  2. Remove the headlamp. Refer to Headlamp Assembly or Headlamp Bulb Replacement (Except Avalanche)  or Headlamp Assembly or Headlamp Bulb Replacement (Avalanche)  or Headlamp Assembly or Headlamp Bulb Replacement (Escalade) .

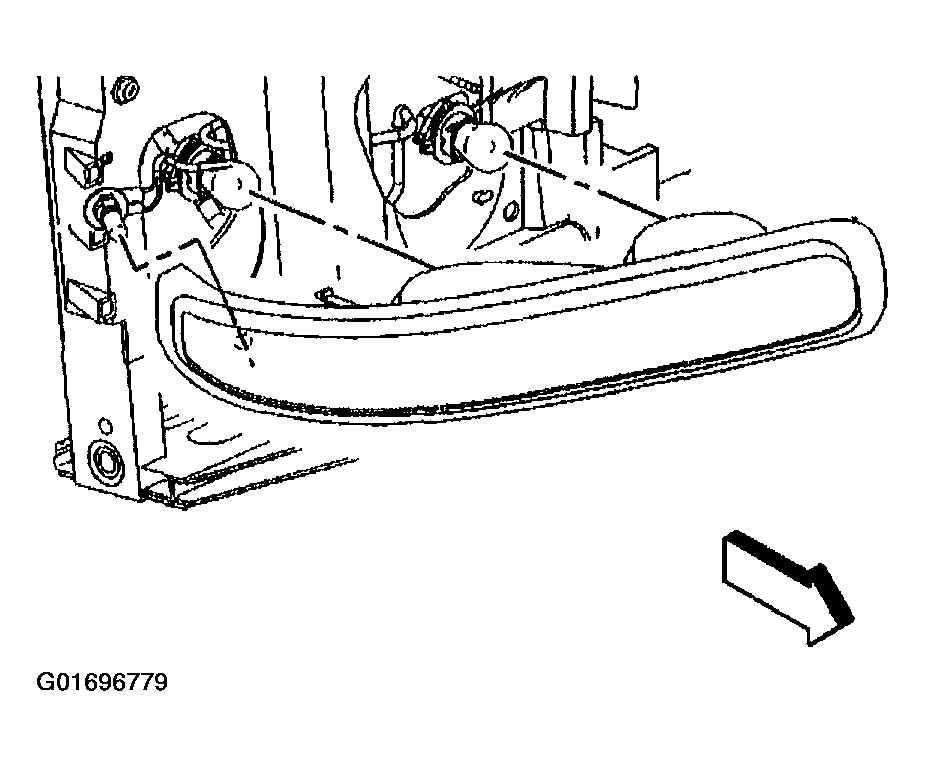

    3. Fig 1: Park/Turn Signal Lamp Assembly
    G01696779Courtesy of GENERAL MOTORS CORP.
  3. Remove the park/turn signal lamp assembly by pushing on the inboard retainer clip.
  4. Disconnect the electrical connector from the assembly.
