Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the electrical connector to the park/turn signal lamp assembly.

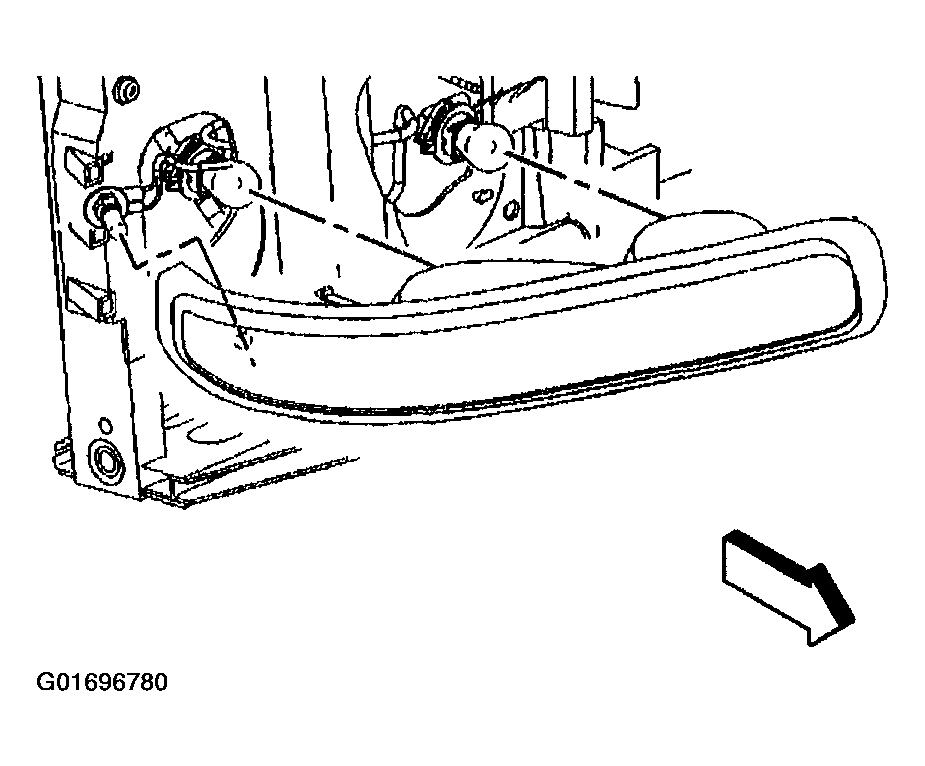

Fig 1: Park/Turn Signal Lamp Assembly

Courtesy of GENERAL MOTORS CORP.

Install the lamp assembly.
Install the headlamp. Refer to Headlamp Assembly or Headlamp Bulb Replacement (Except Avalanche) or Headlamp Assembly or Headlamp Bulb Replacement (Avalanche) or Headlamp Assembly or Headlamp Bulb Replacement (Escalade) .
