Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear license plate attaching hardware from the rear bumper.
  2. Remove the spare tire wheel hoist guide and retaining clip. Refer to TIRE HOIST AND SHAFT REPLACEMENT .
  3. Remove the top fascia step pads. Refer to STEP PAD REPLACEMENT - TOP REAR BUMPER .
  4. Remove the center fascia step pads. Refer to STEP PAD REPLACEMENT - CENTER REAR BUMPER .
  5. Remove the rear object sensors. Refer to REAR OBJECT SENSOR REPLACEMENT .

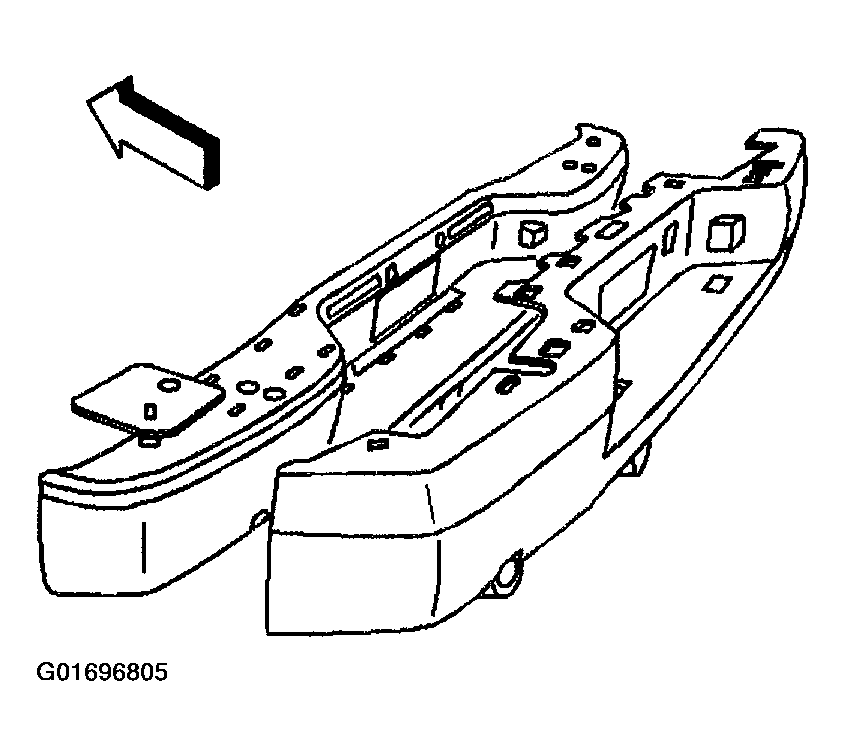

    6. Fig 1: Rear Fascia
    G01696805Courtesy of GENERAL MOTORS CORP.
  6. Remove the rear fascia from the bumper bar.

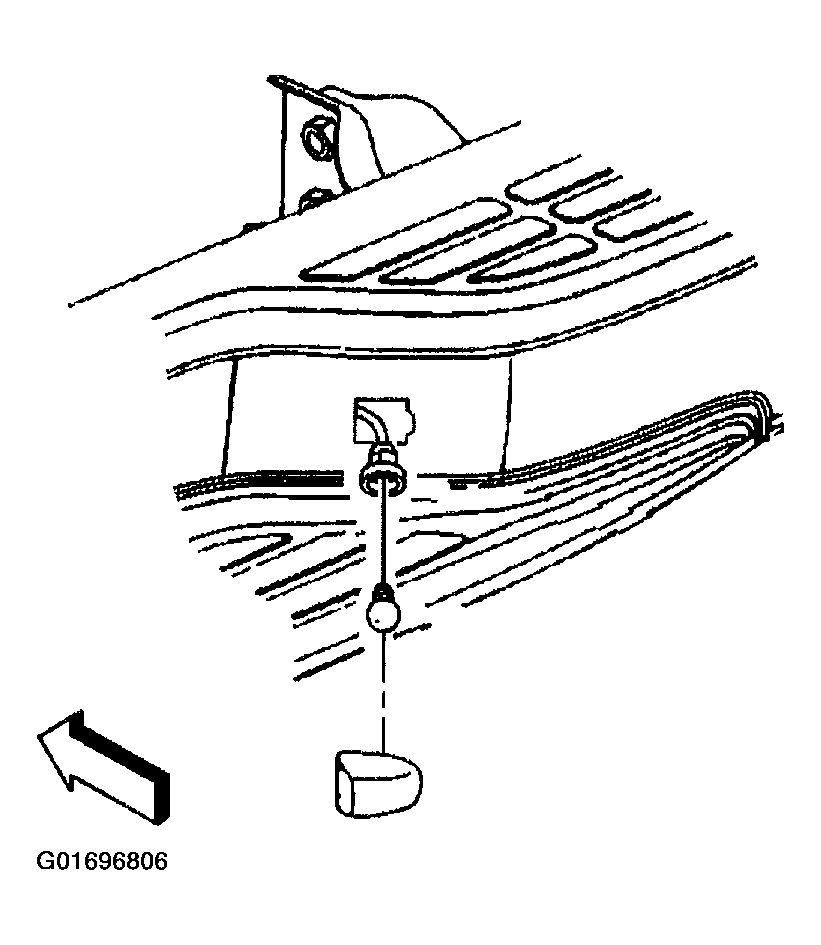

    7. Fig 2: License Lamp Assembly
    G01696806Courtesy of GENERAL MOTORS CORP.
  7. Release the lamp assembly tab from the rear fascia to remove.
  8. Release the lamp socket by turning 1/4 turn counterclockwise.
  9. Remove the lamp assembly from the vehicle.
