Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

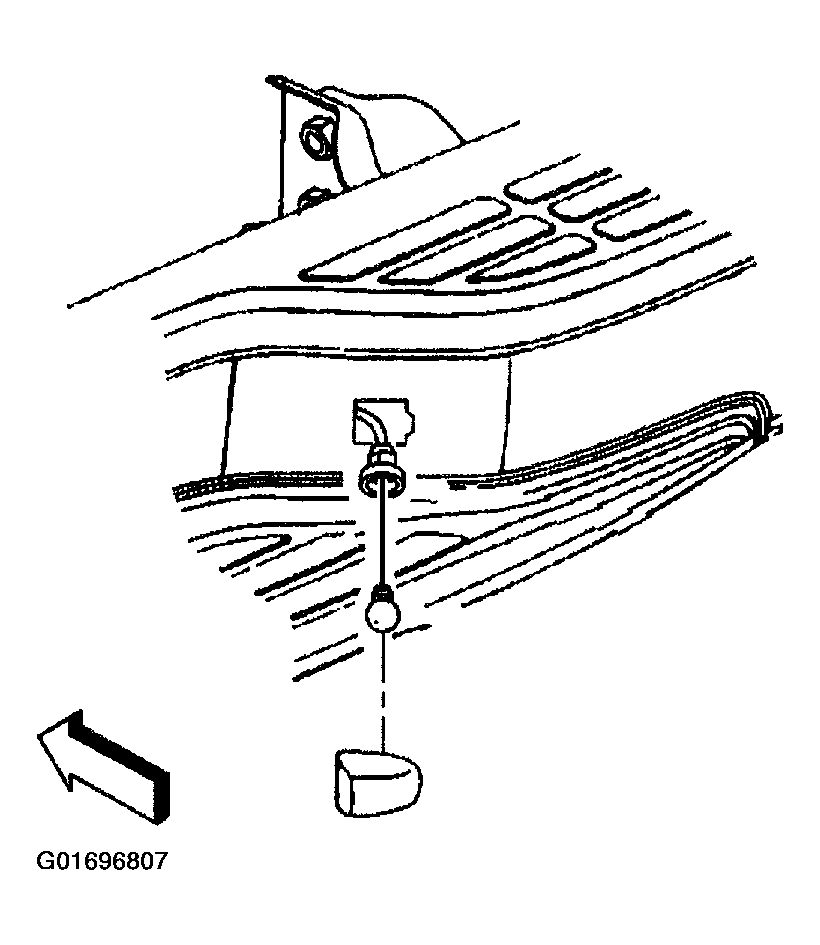

    Fig 1: License Lamp Assembly
    G01696807Courtesy of GENERAL MOTORS CORP.
  1. Install the lamp assembly to the vehicle.
  2. Install the lamp socket and turn 1/4 turn clockwise.
  3. Press the lamp firmly to attach.

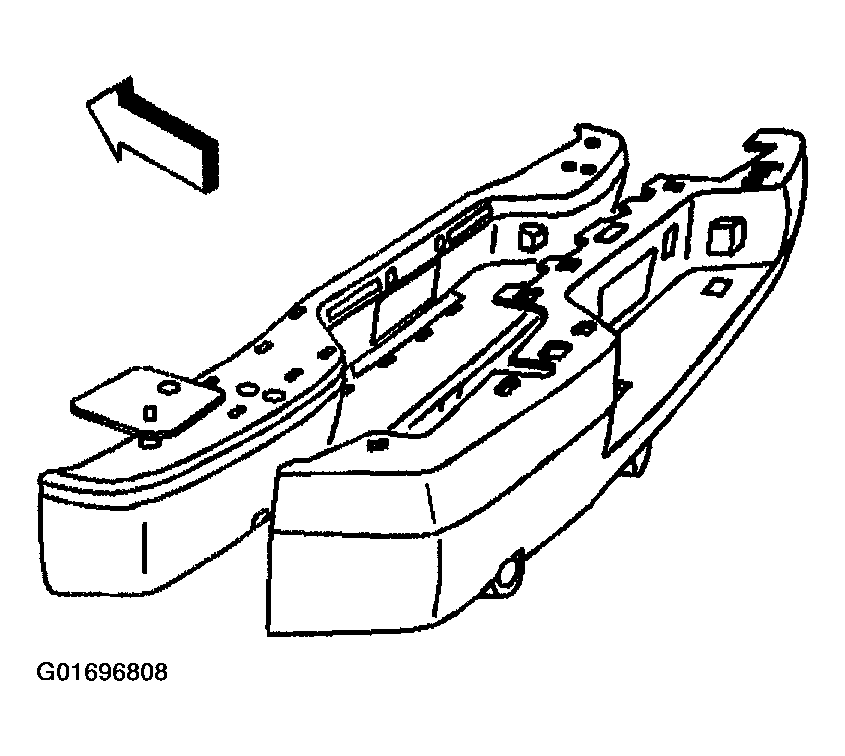

    4. Fig 2: Rear Fascia
    G01696808Courtesy of GENERAL MOTORS CORP.
  4. Install the rear fascia to the bumper bar.
  5. Install the rear object sensor. Refer to REAR OBJECT SENSOR REPLACEMENT .
  6. Install the center fascia step pad. Refer to STEP PAD REPLACEMENT - CENTER REAR BUMPER .
  7. Install the top fascia step pads. Refer to STEP PAD REPLACEMENT - TOP REAR BUMPER .
  8. Install the spare tire wheel hoist guide and retaining clip. Refer to TIRE HOIST AND SHAFT REPLACEMENT .
  9. Install the rear license plate attaching hardware and licence plate.
