Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Raise the lift glass.

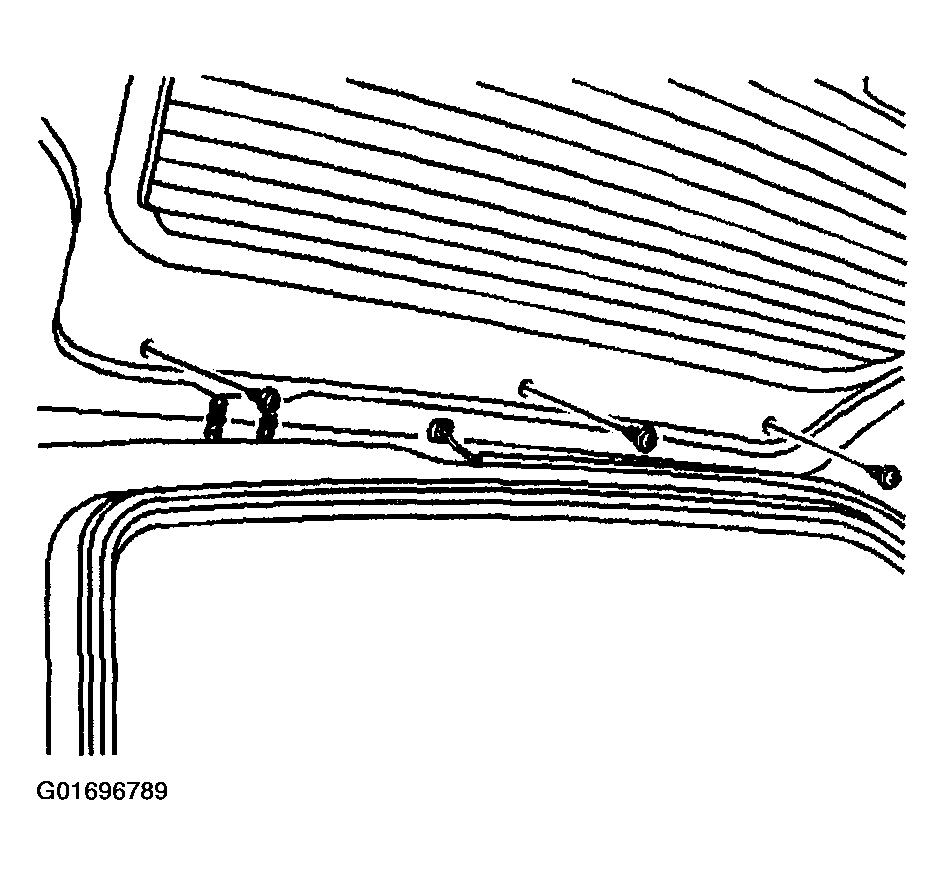

Fig 1: Retainers For Stop Lamp

Courtesy of GENERAL MOTORS CORP.

Remove the retainers from the stop lamp.
Lower the lift glass.

Fig 2: High Mounted Stop Lamp

Courtesy of GENERAL MOTORS CORP.

Raise the stop lamp to disconnect the electrical connector from the lamp.
Remove the center high-mounted stop lamp from the vehicle.
