Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: High Mounted Stop Lamp
    G01696791Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical harness to the stop lamp.
  2. Install the center high-mounted stop lamp onto the vehicle.
  3. Raise the lift glass.
    NOTE: Refer to FASTENER NOTICE .

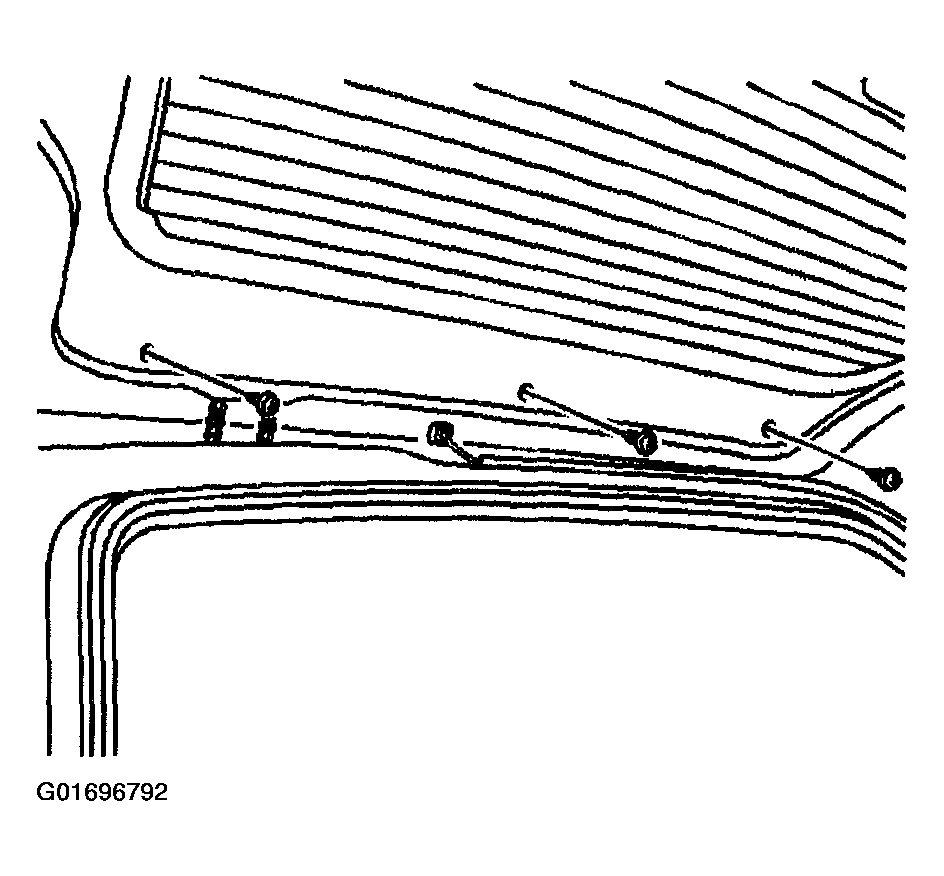

    4. Fig 2: Retainers For Stop Lamp
    G01696792Courtesy of GENERAL MOTORS CORP.
  4. Install the retainers into the holes.

    Tighten

    Tighten the retainers to 1.2 N.m (10 lb in).

  5. Close the lift glass.
