Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to HALOGEN BULB CAUTION .
NOTE: Avoid touching the bulb or letting the bulb come in contact with anything damp. Oil from your skin or moisture on the bulb can cause the bulb to explode when the bulb is turned on. If either comes in contact with the bulb, clean the bulb with alcohol or a suitable degreaser and wipe the bulb dry.

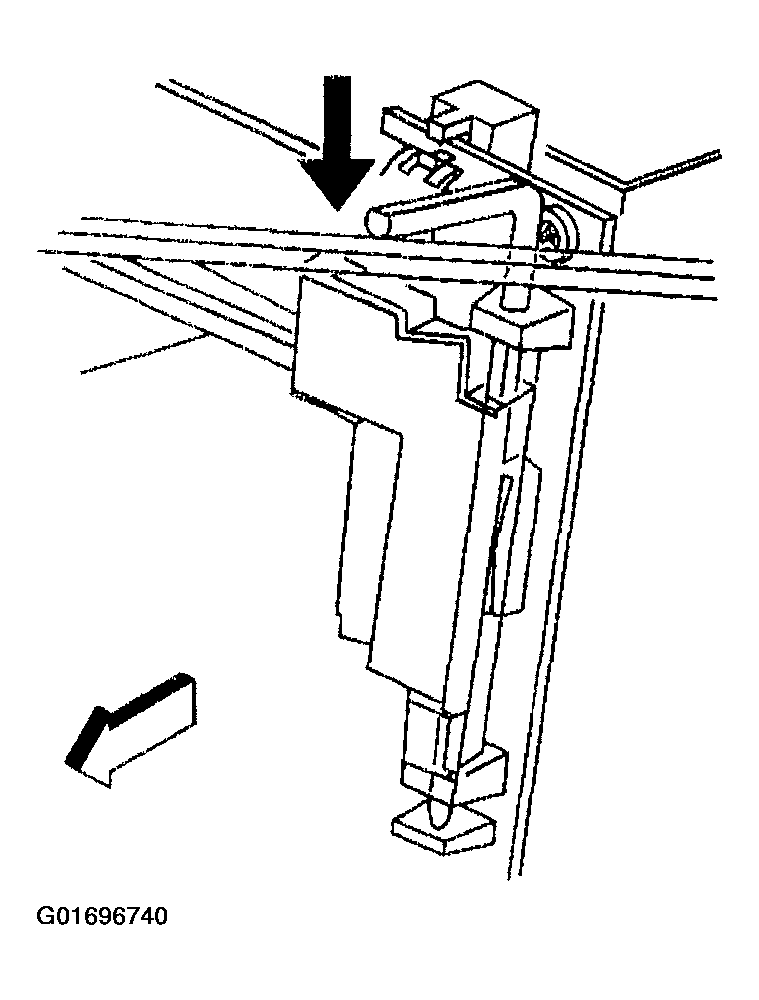

    Fig 1: Rotating Headlamp Retainer Pins
    G01696740Courtesy of GENERAL MOTORS CORP.
  1. Open the hood. Rotate the headlamp retainer pins.

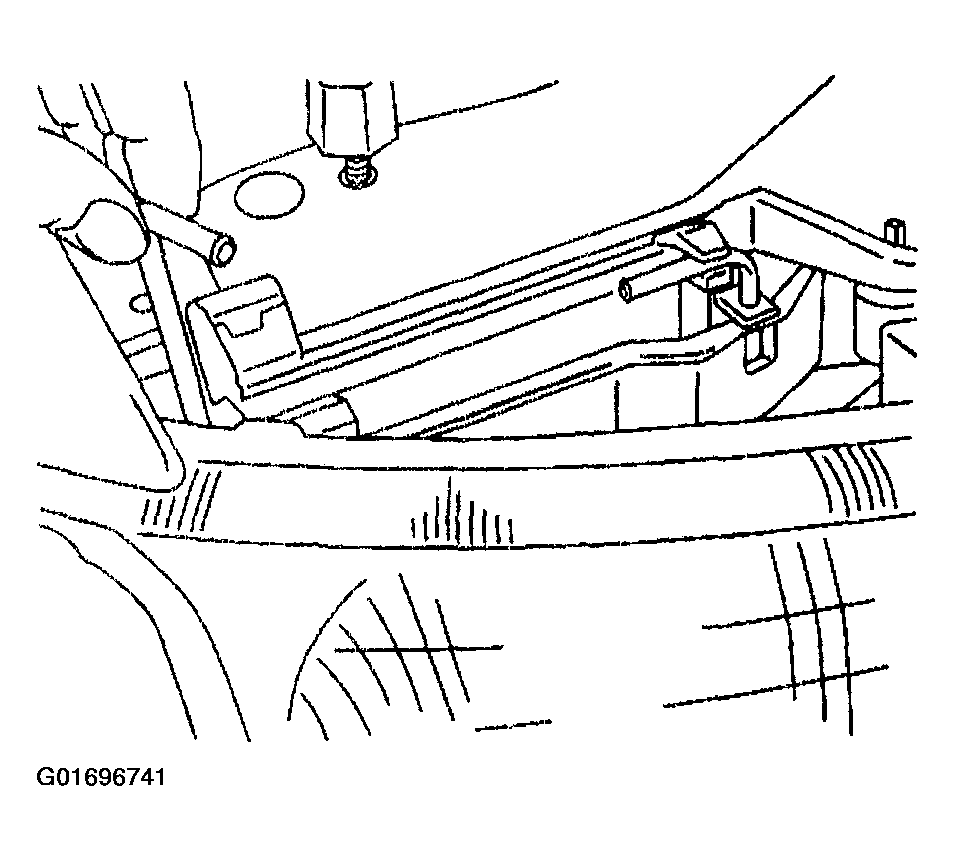

    2. Fig 2: Removing Headlamp Retainer Pins
    G01696741Courtesy of GENERAL MOTORS CORP.
  2. Remove the headlamp retainer pins.
  3. Pull out the headlamp assembly in order to access the electrical connector.
  4. Disconnect the electrical connector.

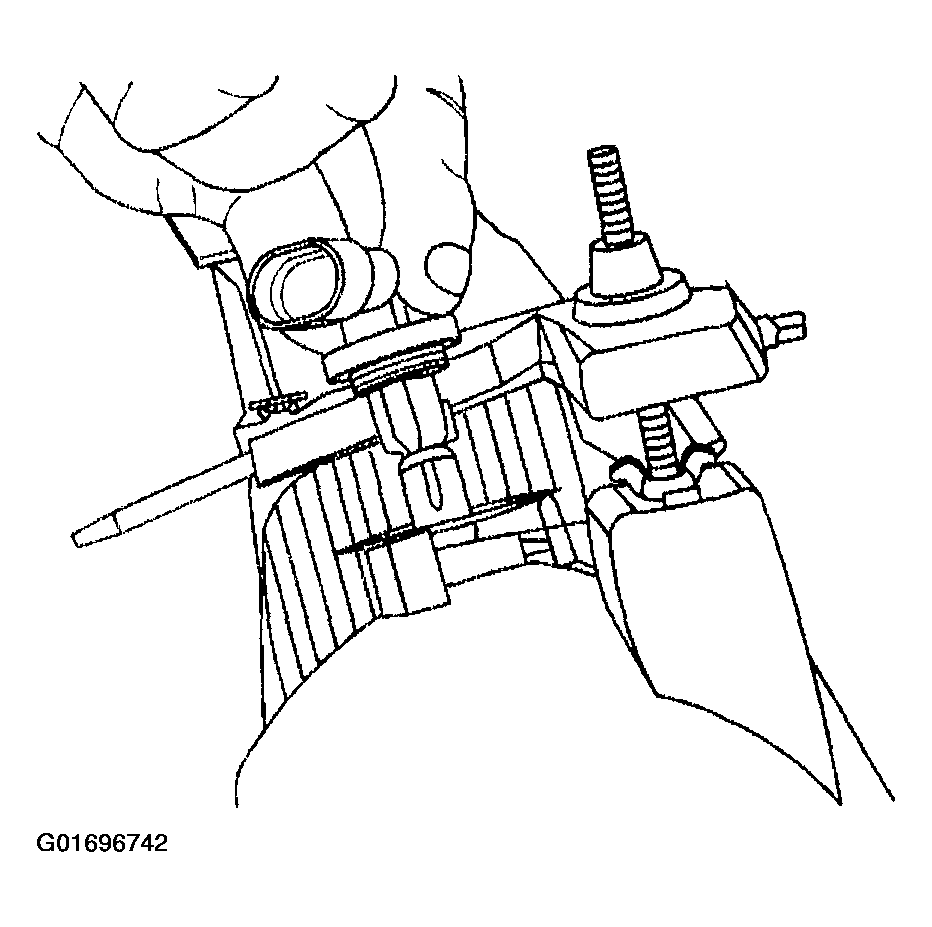

    5. Fig 3: Bulb
    G01696742Courtesy of GENERAL MOTORS CORP.
  5. Remove the bulb from the headlamp assembly by twisting the bulb counterclockwise.
