Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to HALOGEN BULB CAUTION .
NOTE: Avoid touching the bulb or letting the bulb come in contact with anything damp. Oil from your skin or moisture on the bulb can cause the bulb to explode when the bulb is turned on. If either comes in contact with the bulb, clean the bulb with alcohol or a suitable degreaser and wipe the bulb dry.
  1. Remove the front grille. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) .

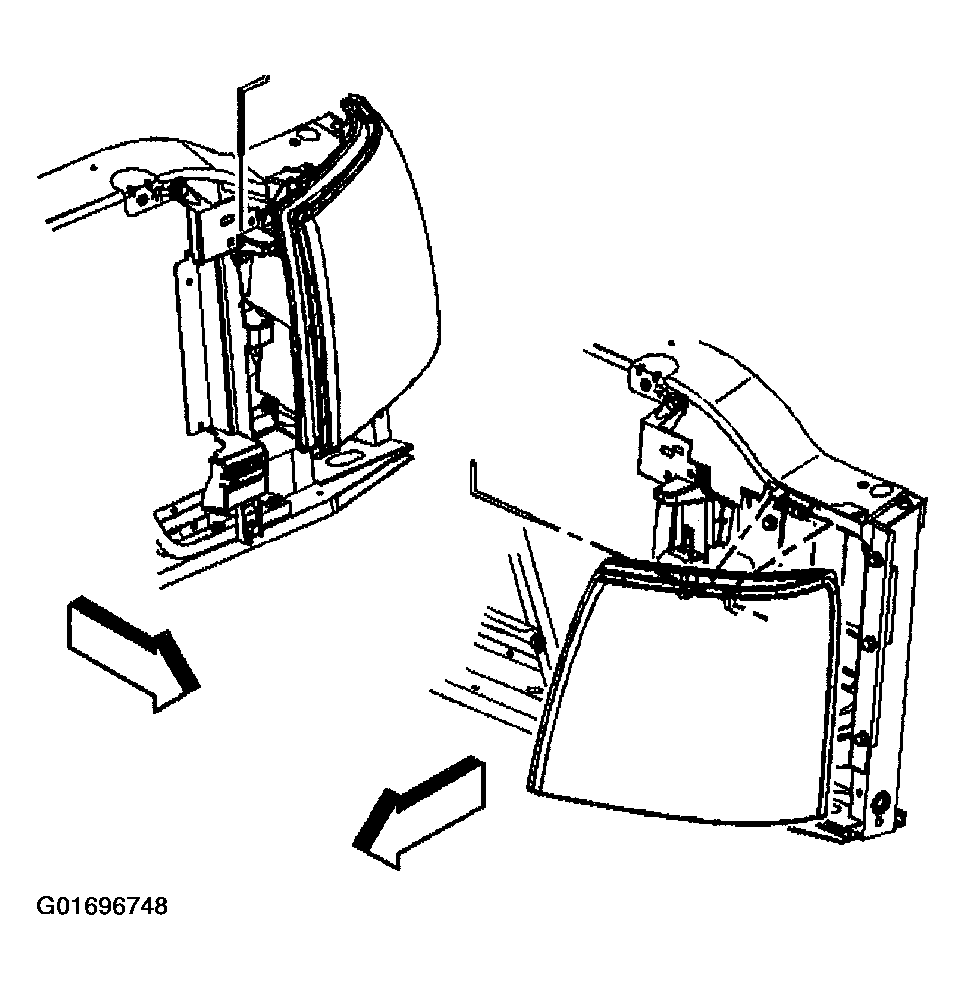

    2. Fig 1: Headlamp Assembly
    G01696748Courtesy of GENERAL MOTORS CORP.
  2. Remove the headlamp retainer pins.
  3. Pull out the headlamp assembly in order to access the electrical connector.

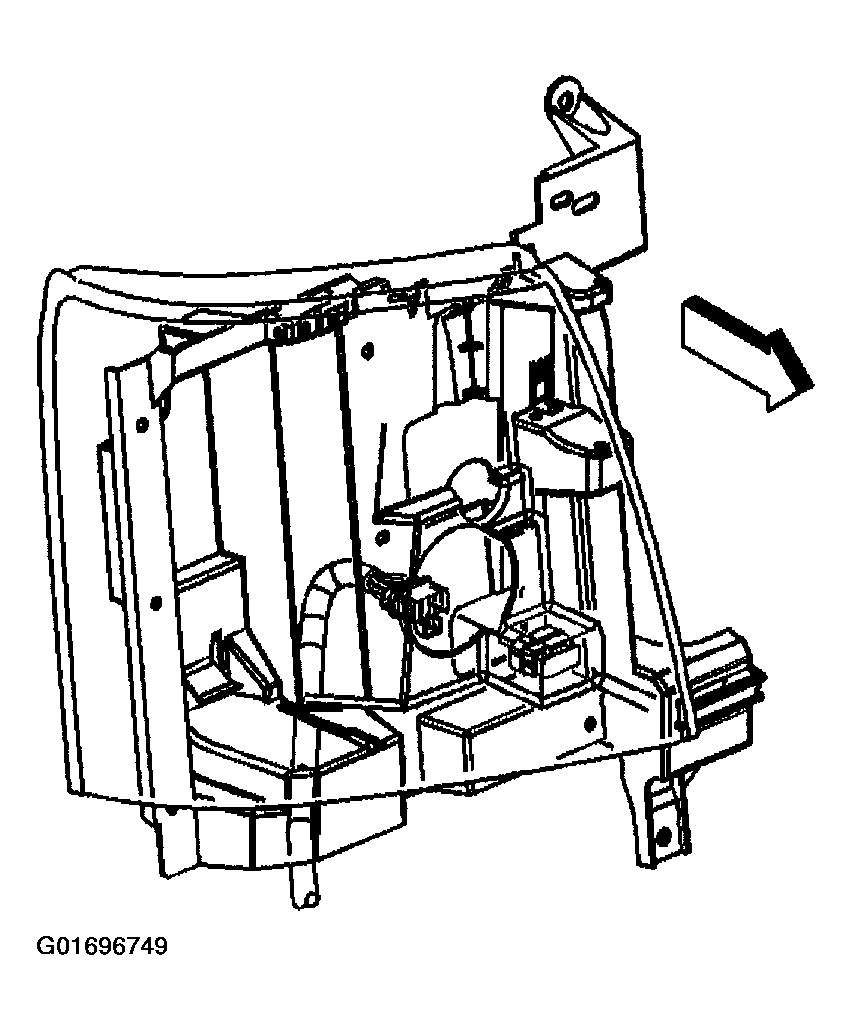

    4. Fig 2: Electrical Connector
    G01696749Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector.
  5. Remove the rubber cup to gain access the headlamp bulbs.
  6. Remove the bulbs.
