Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to HALOGEN BULB CAUTION .

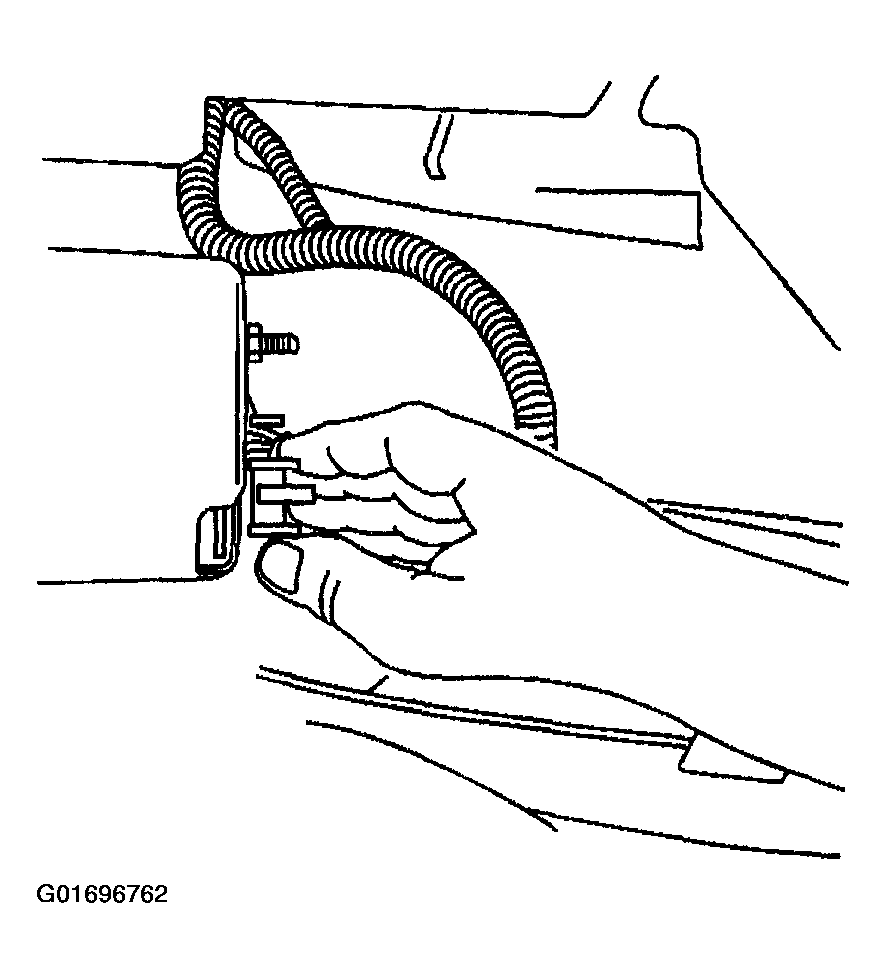

Fig 1: Fog Lamp Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connector from the fog lamp.

Fig 2: Fog Lamp Nuts

Courtesy of GENERAL MOTORS CORP.

Remove the nuts from the fog lamp.

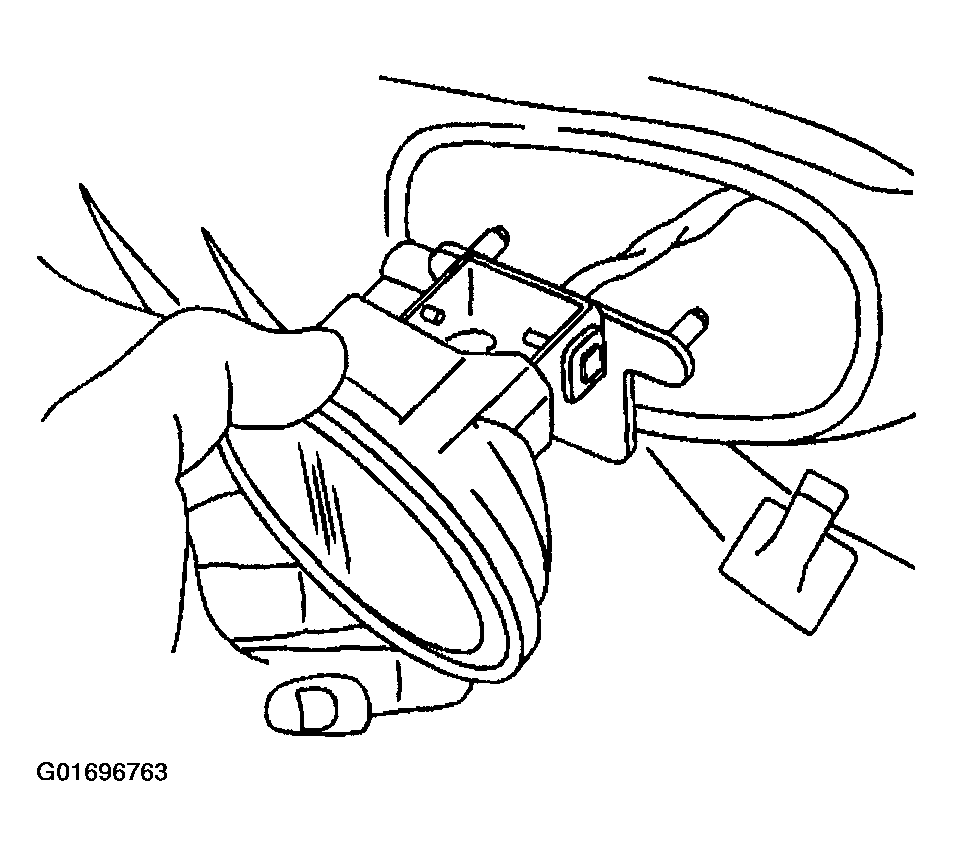

Fig 3: Fog Lamp

Courtesy of GENERAL MOTORS CORP.

Remove the fog lamp from the front bumper fascia.

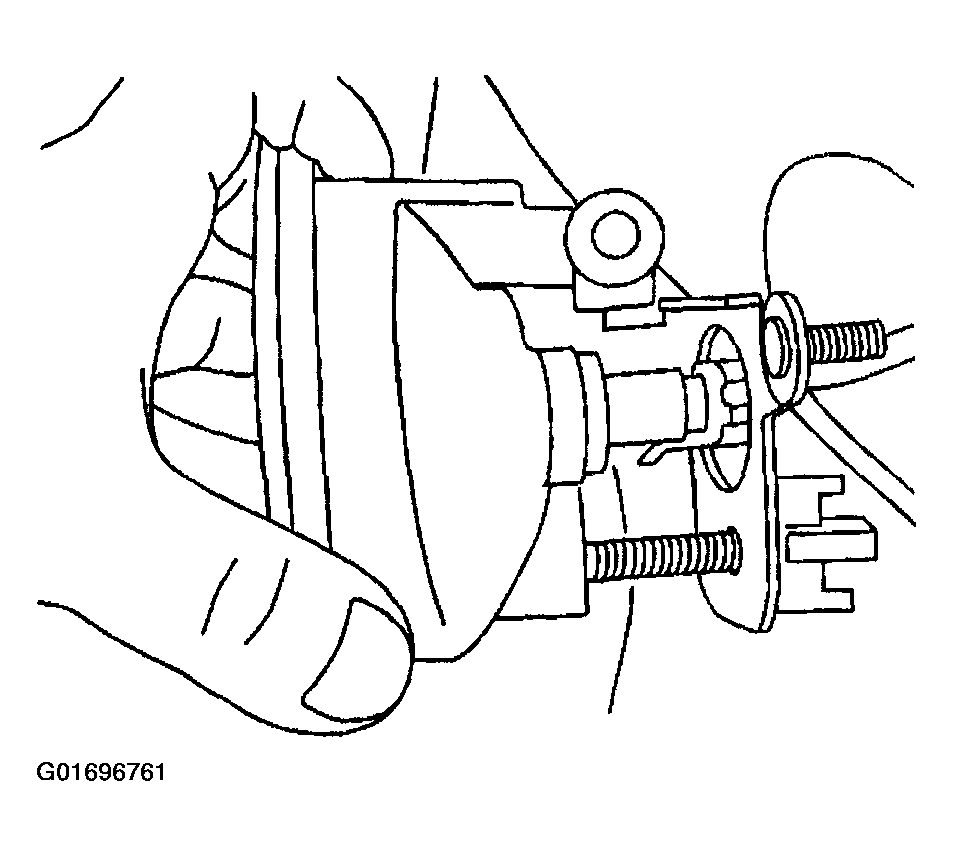

Fig 4: Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Remove the fog lamp bulb from the fog lamp, turning counterclockwise, if required.
