Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

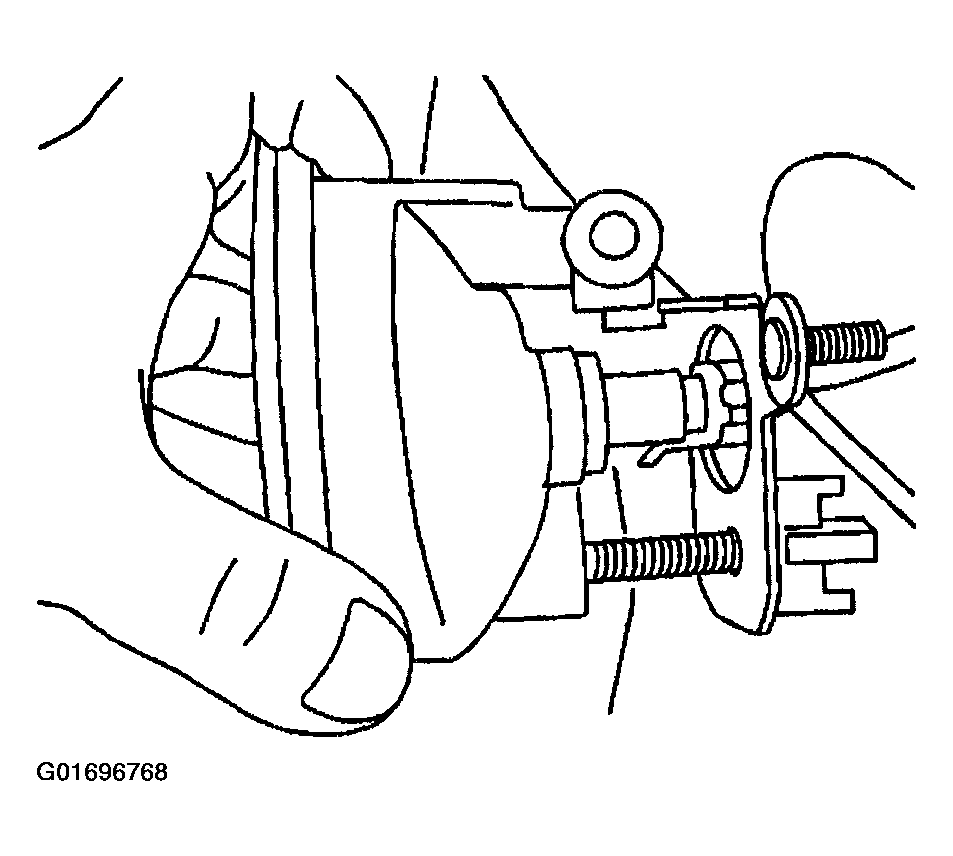

Fig 1: Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Install the fog lamp bulb to the fog lamp, turning clockwise, if required.

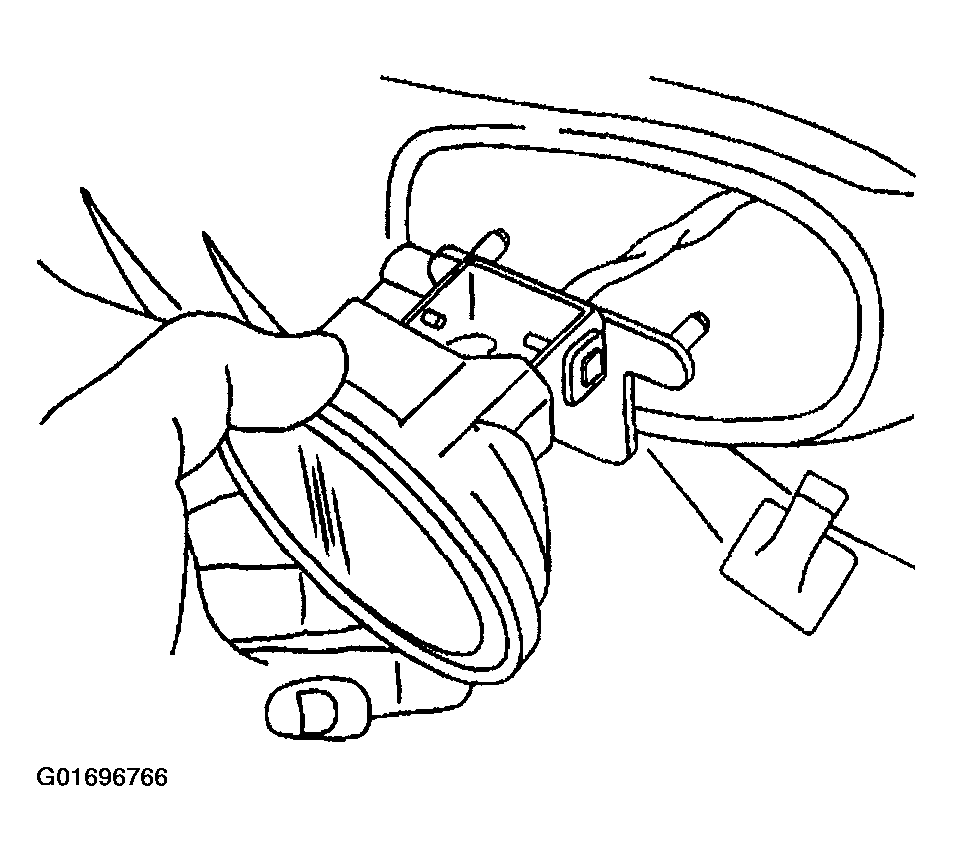

Fig 2: Fog Lamp

Courtesy of GENERAL MOTORS CORP.

Install the fog lamp to the front bumper fascia.
NOTE: Refer to FASTENER NOTICE .

Fig 3: Fog Lamp Nuts

Courtesy of GENERAL MOTORS CORP.

Install the nuts to the fog lamp.
Tighten

Tighten the nuts to 2 N.m (18 lb in).

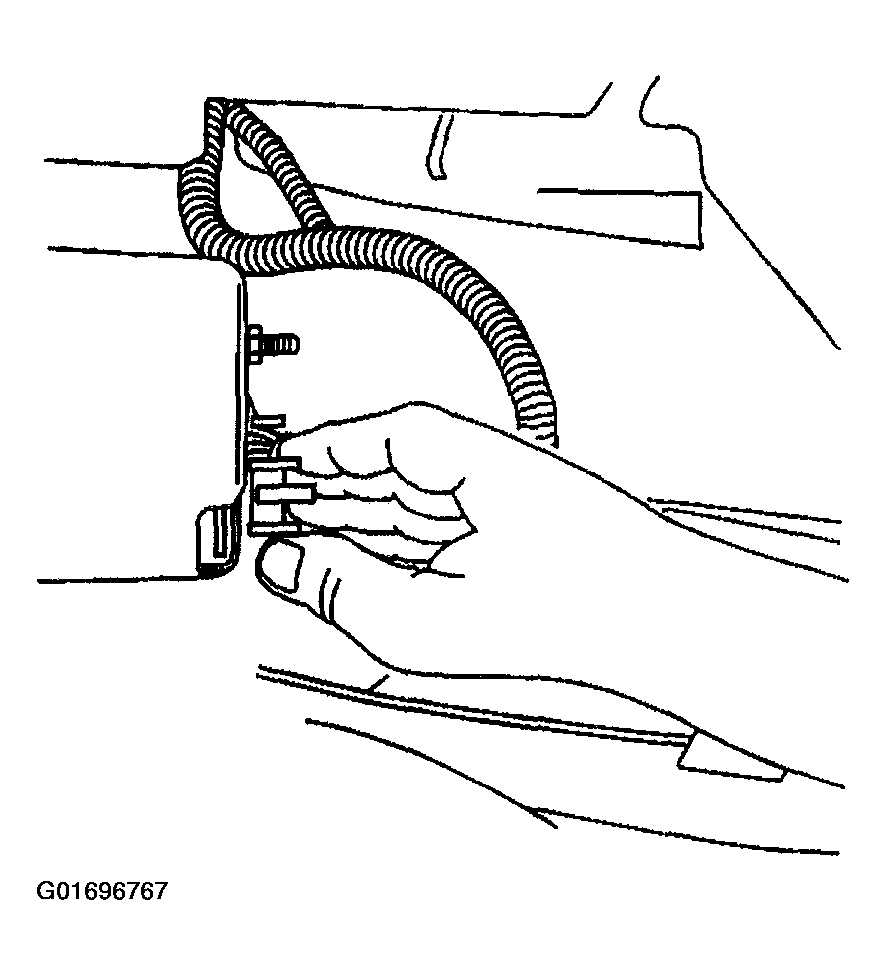

Fig 4: Fog Lamp Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the fog lamp.
