Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

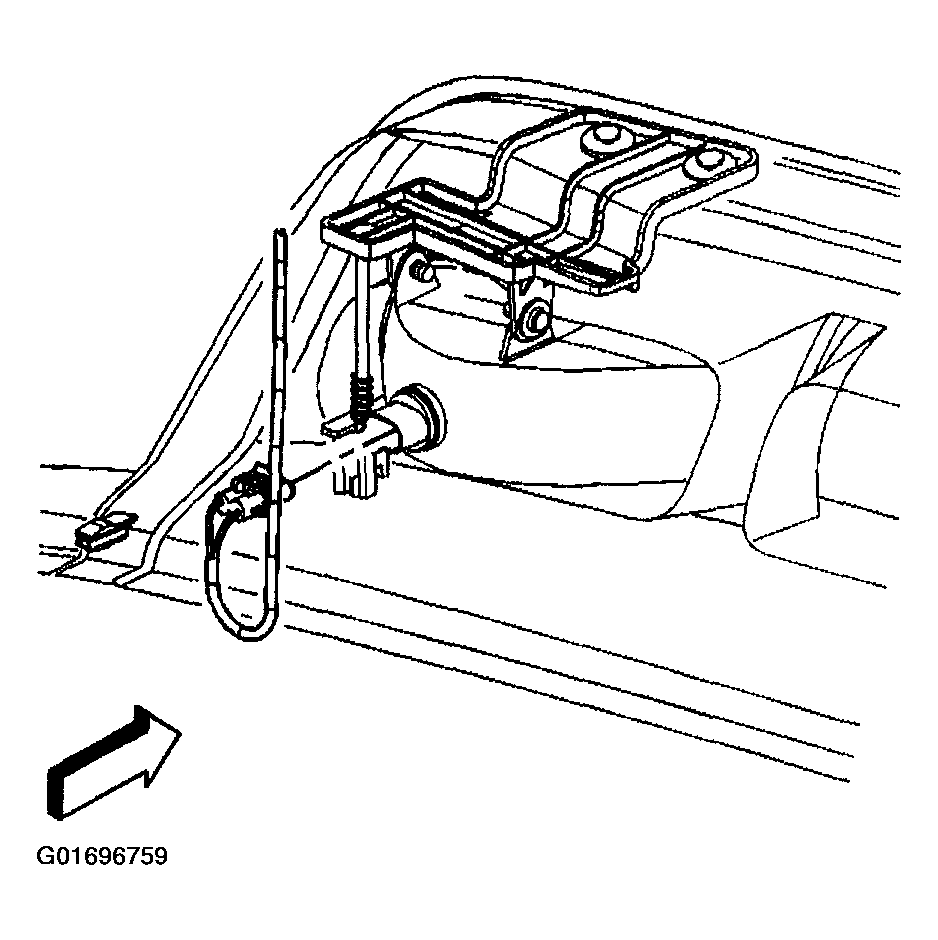

    Fig 1: Fog Lamp
    G01696759Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the electrical connector from the fog lamp.
  2. Remove the push pin retainers that attach the fog lamp to the bracket.
  3. Remove the fog lamp adjuster bolt and spring from the adjuster nut.
  4. Remove the fog lamp from the fog lamp bracket.
  5. Remove the fog lamp bracket bolts and bracket, as needed.
