Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .

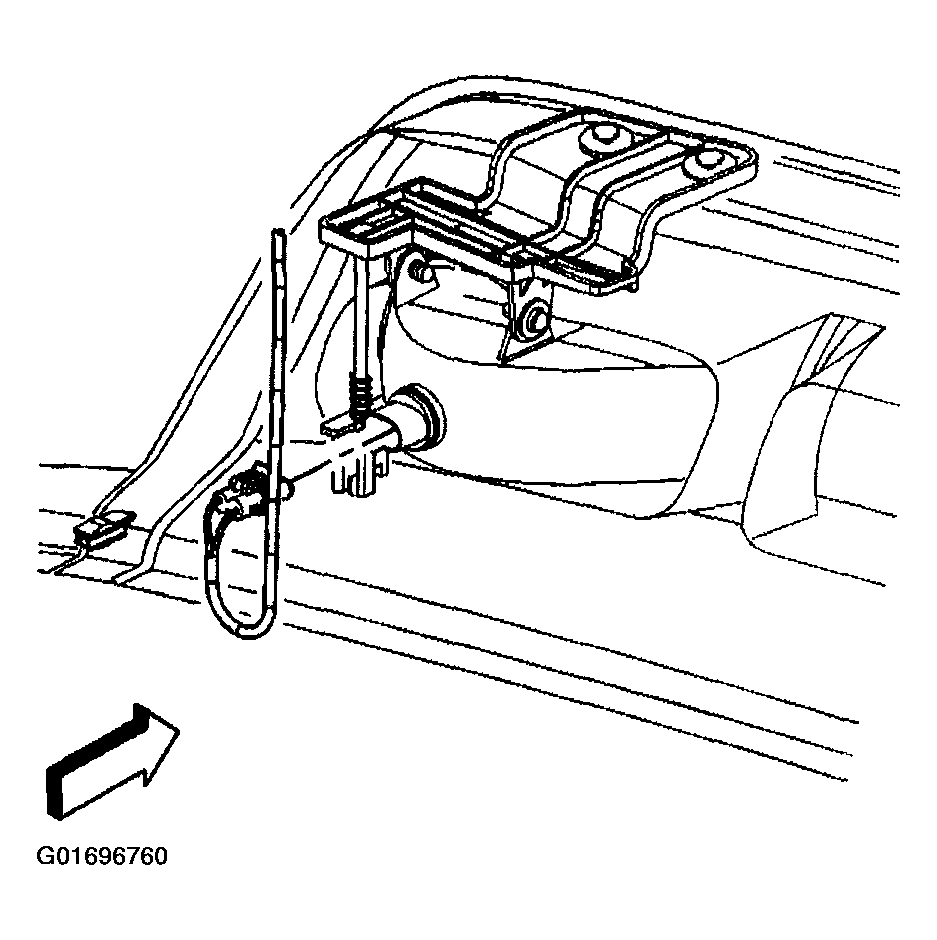

    Fig 1: Fog Lamp
    G01696760Courtesy of GENERAL MOTORS CORP.
  1. Install the fog lamp bracket bolts and bracket, as needed.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

  2. Install the fog lamp to the fog lamp bracket.
  3. Install the fog lamp adjuster bolt and spring to the adjuster nut.
  4. Install the push pin retainers that attach the fog lamp to the bracket.
  5. Connect the electrical connector to the fog lamp.
  6. Inspect the fog lamp aiming.
