Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

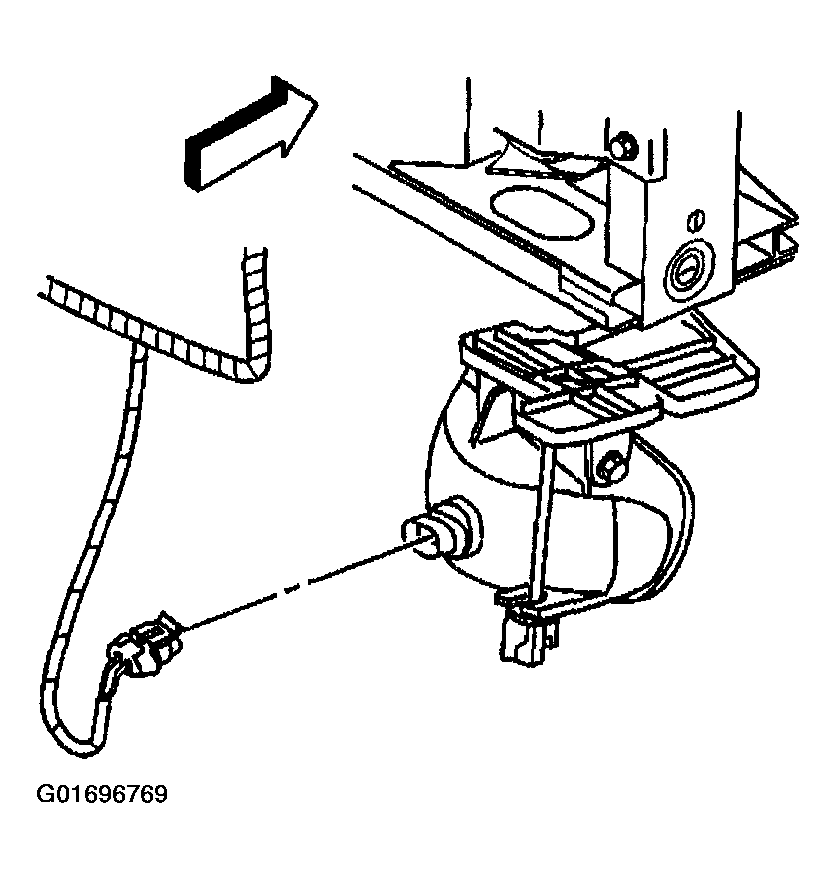

    Fig 1: Front Fog Lamp Bulb
    G01696769Courtesy of GENERAL MOTORS CORP.
  1. Remove the electrical connector.
    CAUTION: Refer to HALOGEN BULB CAUTION .
  2. Remove the bulb from the fog lamp assembly by twisting the bulb counterclockwise and pulling the bulb out.
