Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

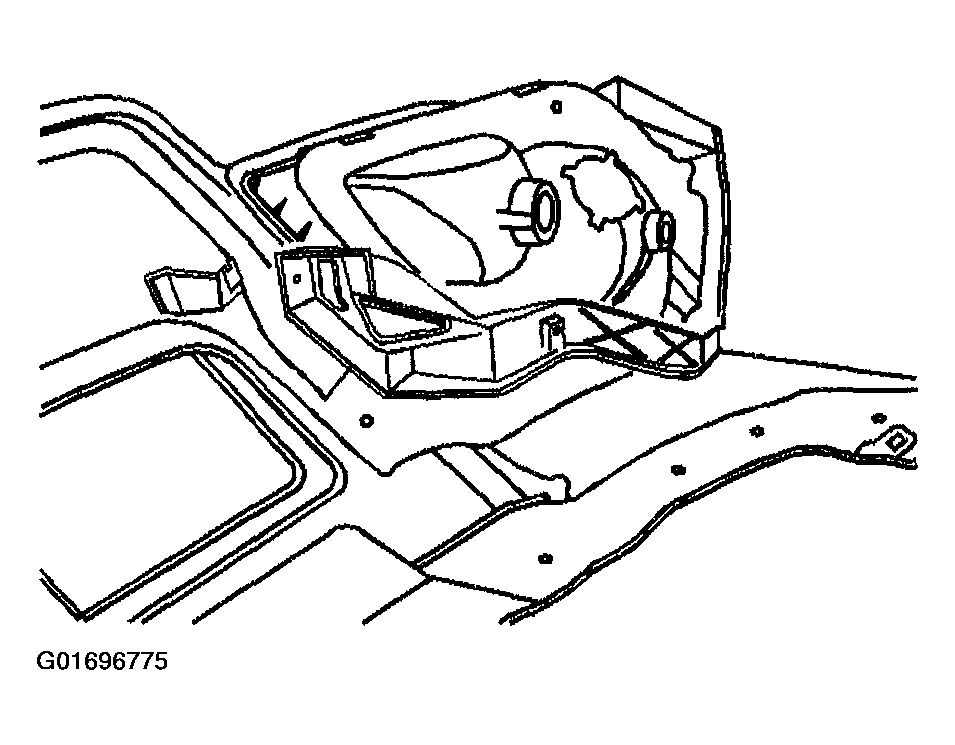

    2. Fig 1: Daytime Running and Fog Lamp Assembly
    G01696775Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical harness connectors.
    CAUTION: Refer to HALOGEN BULB CAUTION .
  3. Remove the bulbs from the daytime running and fog lamp assembly by turning the bulb 1/4 turn counterclockwise.
  4. Remove the fasteners (2) retaining the lamp assembly to the fascia.
  5. Remove the lamp assembly from the vehicle.
