Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

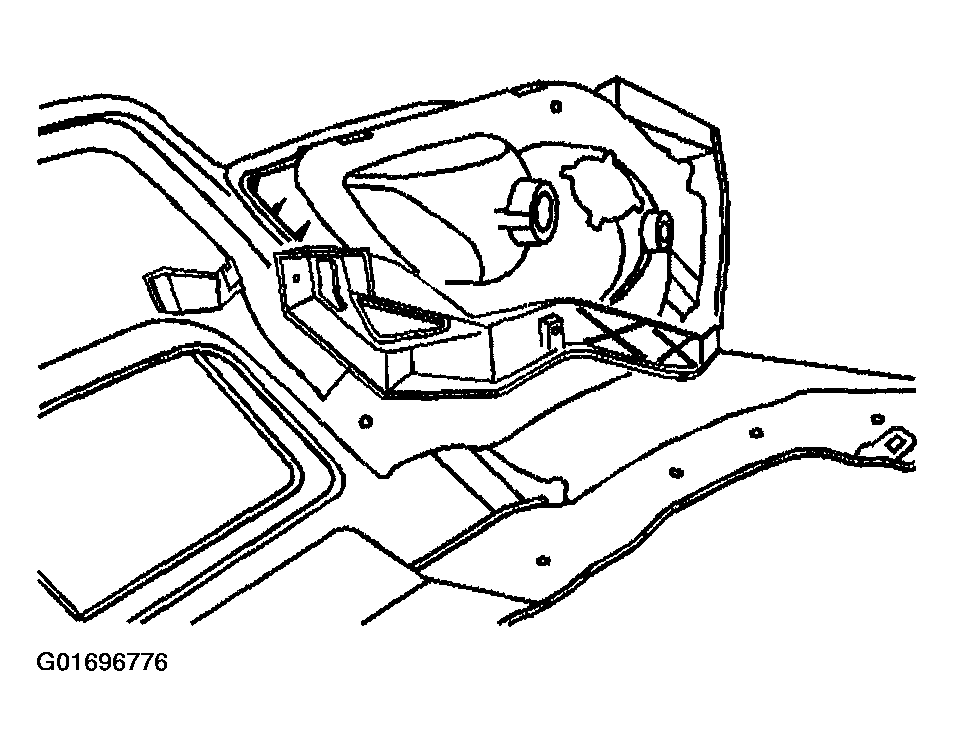

Fig 1: Daytime Running and Fog Lamp Assembly
G01696776Courtesy of GENERAL MOTORS CORP.
  1. Install the lamp assembly to the vehicle.
  2. Install the fasteners to the lamp assembly. Tighten the fasteners 1.1 N.m (10 in).
  3. Install the bulbs to the daytime running and fog lamp assembly by turning the bulb 1/4 turn clockwise.
  4. Connect the electrical harness connectors.
  5. Lower the vehicle.
  6. Re-aim the fog lamps. Refer to Fog Lamp Aiming Procedure .
