Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to the diagram for the relays/fuses in the cover locate the position of the relay.
  2. Install the relay in the electrical center.

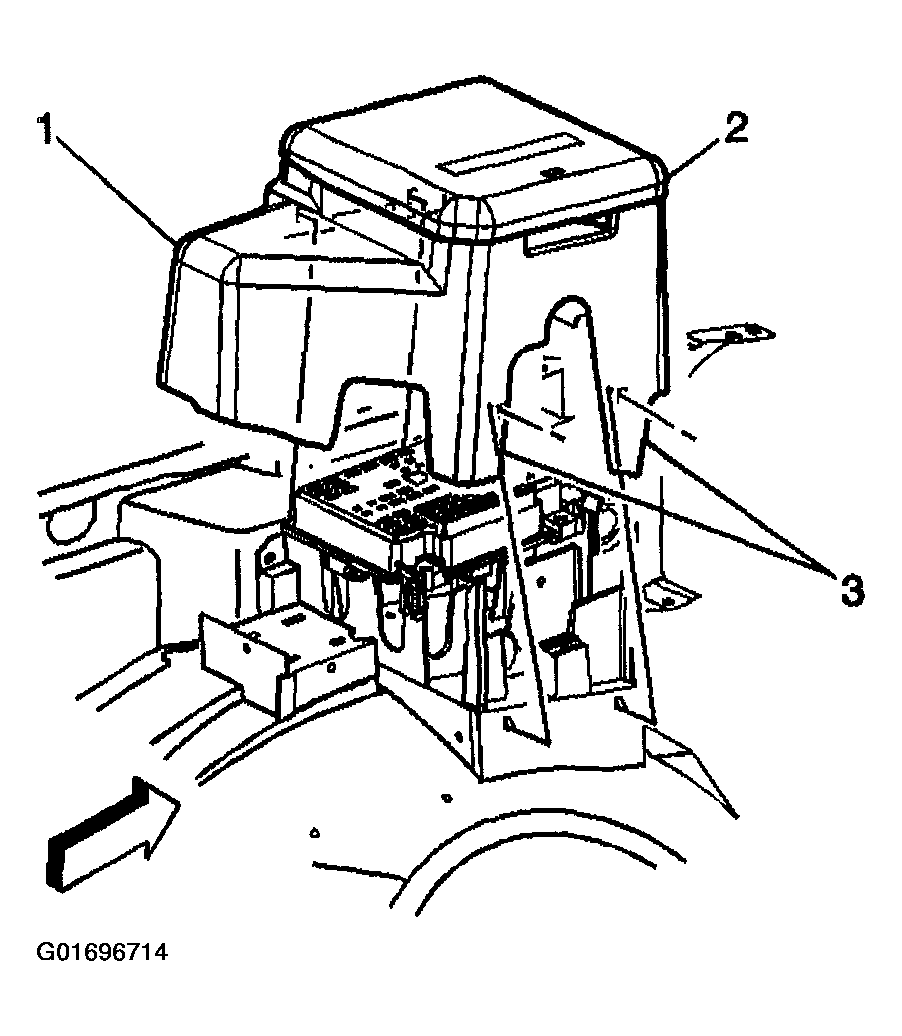

    3. Fig 1: Electrical Center Cover
    G01696714Courtesy of GENERAL MOTORS CORP.
  3. Install the cover (2).
  4. Start and vehicle and shift gear lever out of park. Ask an assistant to look in front of vehicle to ensure the DRL are operating.
