Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Retaining Screws
G01696719Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the 2 retaining screws.

    Tighten

    Tighten the screws to 2 N.m (17 lb in).

  3. Connect the electrical wires.
  4. Install the exterior courtesy lamp into the rear view mirror pressing into place until fully seated.

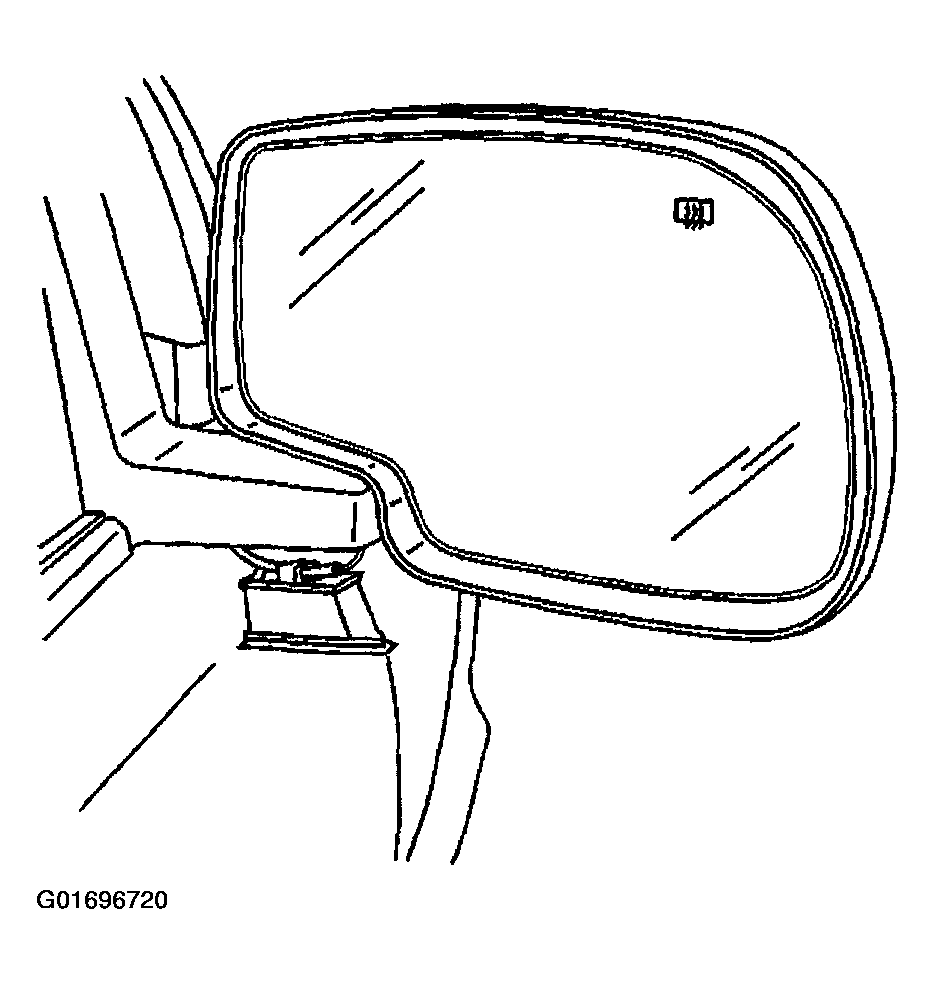

    Fig 2: Exterior Courtesy Lamp Assembly
    G01696720Courtesy of GENERAL MOTORS CORP.
