Test Description

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

  1. 2.  OFF is the normal state of the switch before activation.
  2. 4.  OFF is the normal state of the switch before activation.
  3. 5.  This step tests for a short to ground on the front fog lamp switch signal circuit.
  4. 6.  After replacement of the BCM you must calibrate the new module for proper operation.

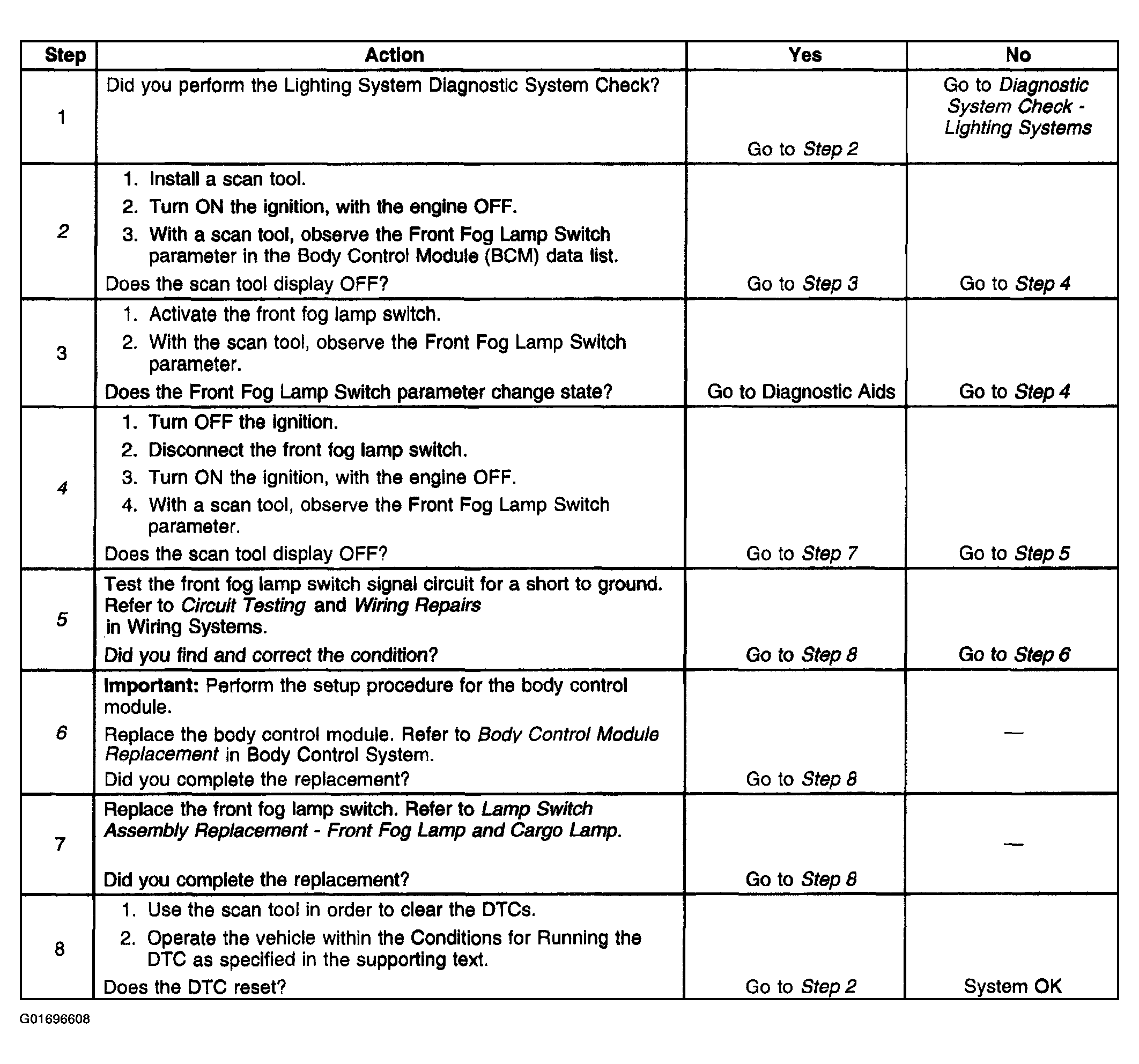

Fig 1: DTC B2527
G01696608Courtesy of GENERAL MOTORS CORP.
