Removal Procedure
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The cruise control cable does not require mechanical adjusting after replacement. The cruise control module internally adjusts the cable. Refer to CRUISE CONTROL DESCRIPTION & OPERATION (W/ETC) or CRUISE CONTROL DESCRIPTION & OPERATION (W/O ETC)
for complete operational details.
- Remove the engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT (4.8L, 5.3L, & 6.0L (LQ4)) or ENGINE SIGHT SHIELD REPLACEMENT (6.0L (LQ9)) in Engine Mechanical - 4.8L, 5.3L, and 6.0L.

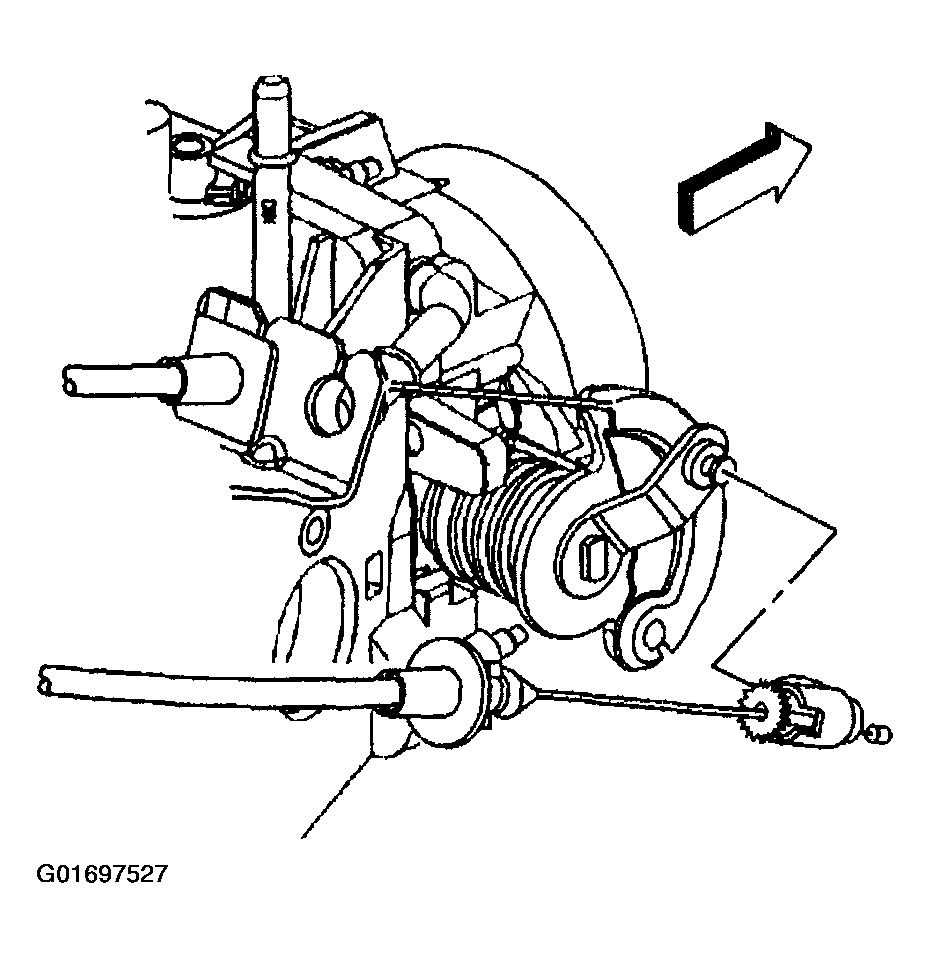

- Disconnect the cruise control cable locator clip from the outboard rectangular hole in the routing bracket at the left front corner of the engine.

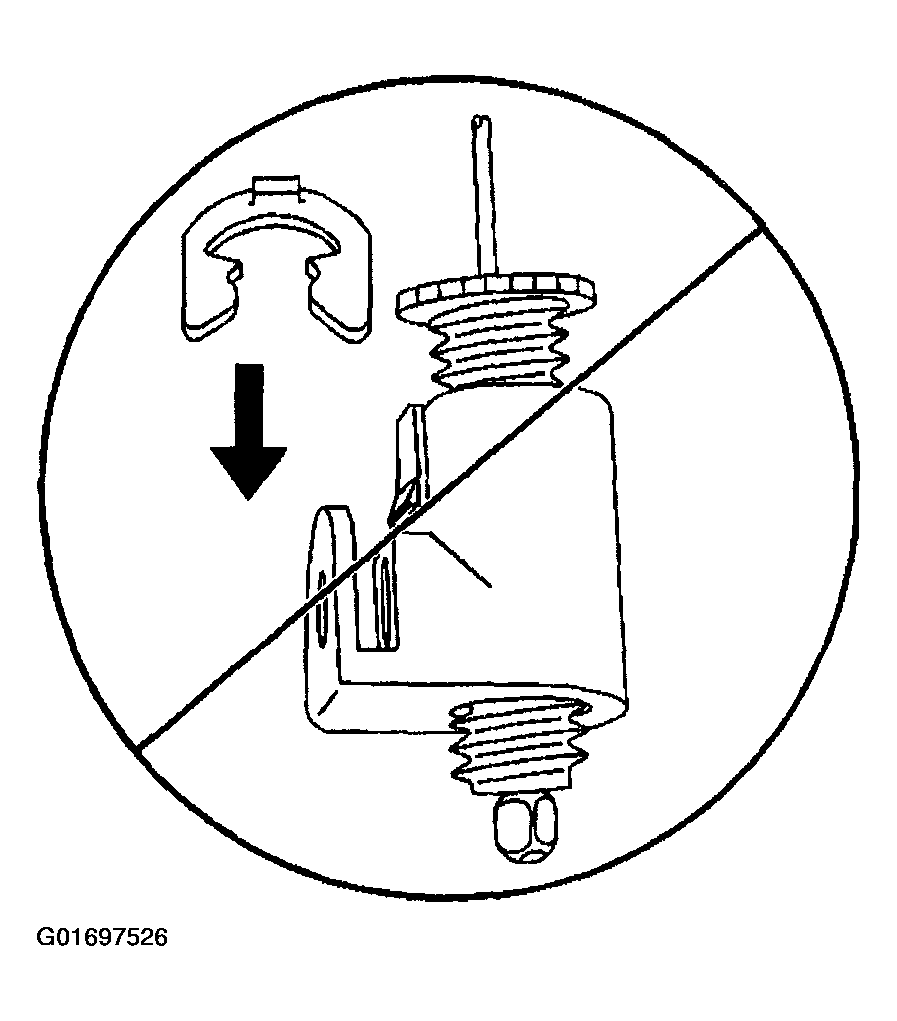

- Disconnect the cruise control cable conduit fitting from the round hole in the engine cable bracket.CAUTION: Do not remove the C-clip from the cruise control connector. The C-clip was not designed for removal. Damage may occur when removing.
- Disconnect the cruise control cable engine-end fitting from the stud on the throttle lever.
- Disconnect the cruise control cable fitting from the cruise control module.
- Disconnect the cruise control cable bead from the fitting on the cruise control module ribbon.
- Remove the cruise control cable from the vehicle.
