Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Secure all of the components of the accelerator and the cruise control cables as specified. Ensure that the throttle linkage operates freely without binding between the idle position and the wide open throttle.
  1. Remove and discard the plastic cable retainer.
  2. Install the cruise control cable to the vehicle.
  3. Connect the cruise control cable bead to the fitting on the cruise control module ribbon.
    4. Fig 1: Connecting Cruise Control Cable Bead To Cruise Control Module Ribbon Fitting
    G01697529Courtesy of GENERAL MOTORS CORP.
  4. Pull the cruise control cable until the cable is taut.
    5. Fig 2: Tightening Cruise Control Cable
    G01697530Courtesy of GENERAL MOTORS CORP.
  5. Use care not to twist the ribbon.
    6. Fig 3: Do Not Twist Ribbon
    G01697531Courtesy of GENERAL MOTORS CORP.
  6. Turn the cruise control cable at the engine-end fitting in order to straighten the cruise control module ribbon, as needed. Ensure that the ribbon is flat and vertical.
  7. Slide the cruise control cable conduit over the ribbon.
    • Install the tangs to the cruise control module housing.
    • Ensure that the tangs snap securely into place.
    8. Fig 4: Installing Tangs To Cruise Control Module Housing
    G01697532Courtesy of GENERAL MOTORS CORP.
  8. Snap the cruise control cable engine-end fitting over the stud on the throttle lever.
  9. Connect the cruise control cable conduit fitting to the engine cable bracket.
    • Ensure that the tabs snap securely into the hole.
    • Route the cruise control cable above the accelerator cable.
    • Ensure that the clip snaps securely into place.

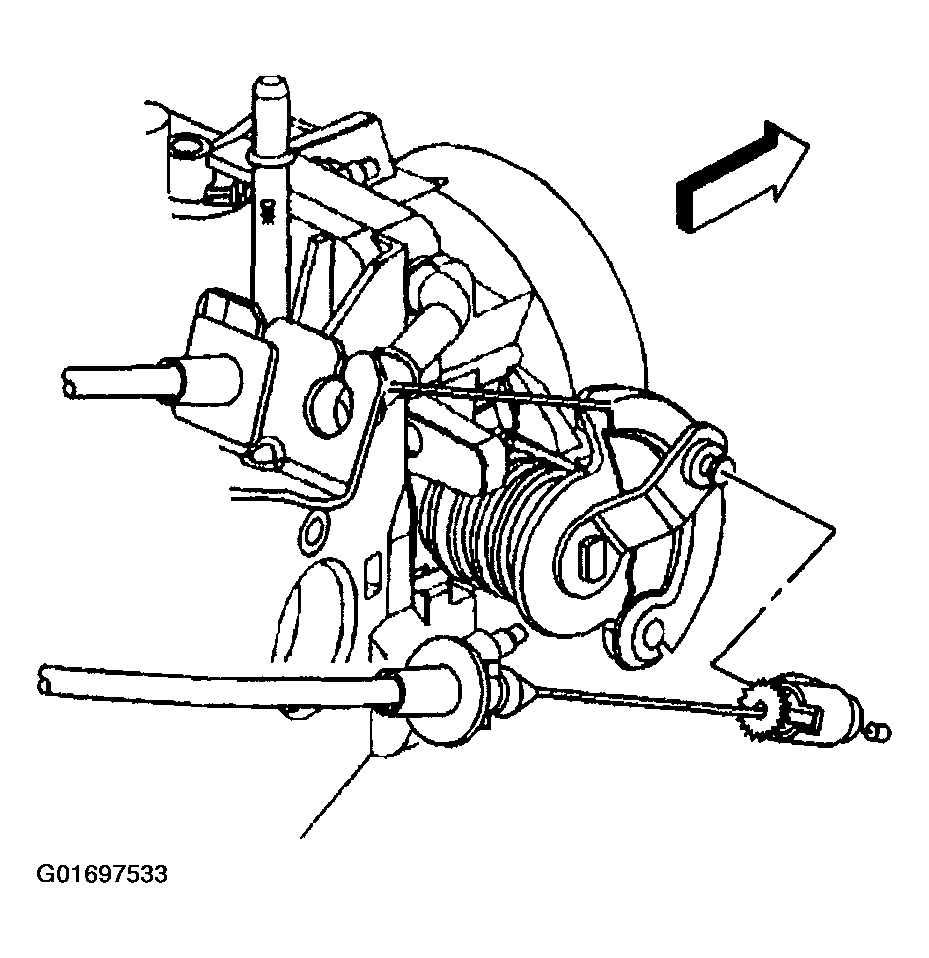

    10. Fig 5: Connecting Cruise Control Cable Conduit Fitting To Engine Cable Bracket
    G01697533Courtesy of GENERAL MOTORS CORP.
  10. Install the engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT (4.8L, 5.3L, & 6.0L (LQ4)) or ENGINE SIGHT SHIELD REPLACEMENT (6.0L (LQ9)) in Engine Mechanical - 4.8L, 5.3L, and 6.0L.
