Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the transfer case speed sensor electrical connector.
    Fig 1: Transfer Case Speed Sensor Electrical Connector
    G01668928Courtesy of GENERAL MOTORS CORP.
  3. Remove the transfer case speed sensor.

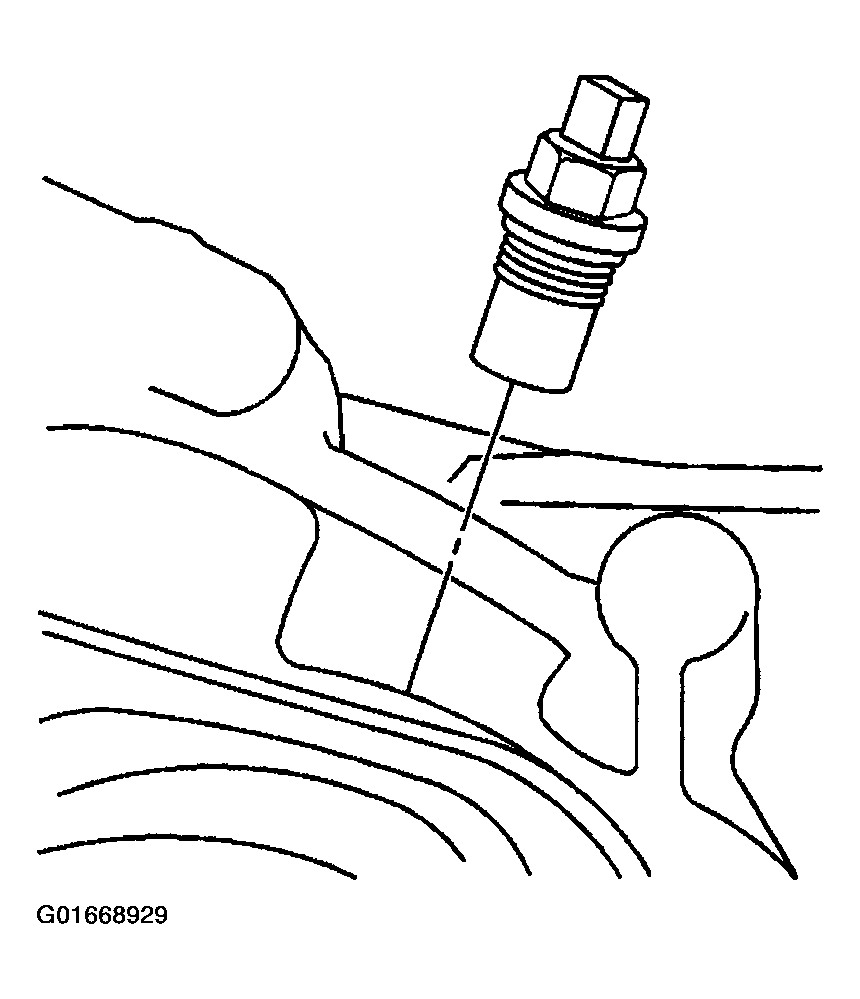

    Fig 2: Transfer Case Speed Sensor
    G01668929Courtesy of GENERAL MOTORS CORP.
