Transfer Case Control Component Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

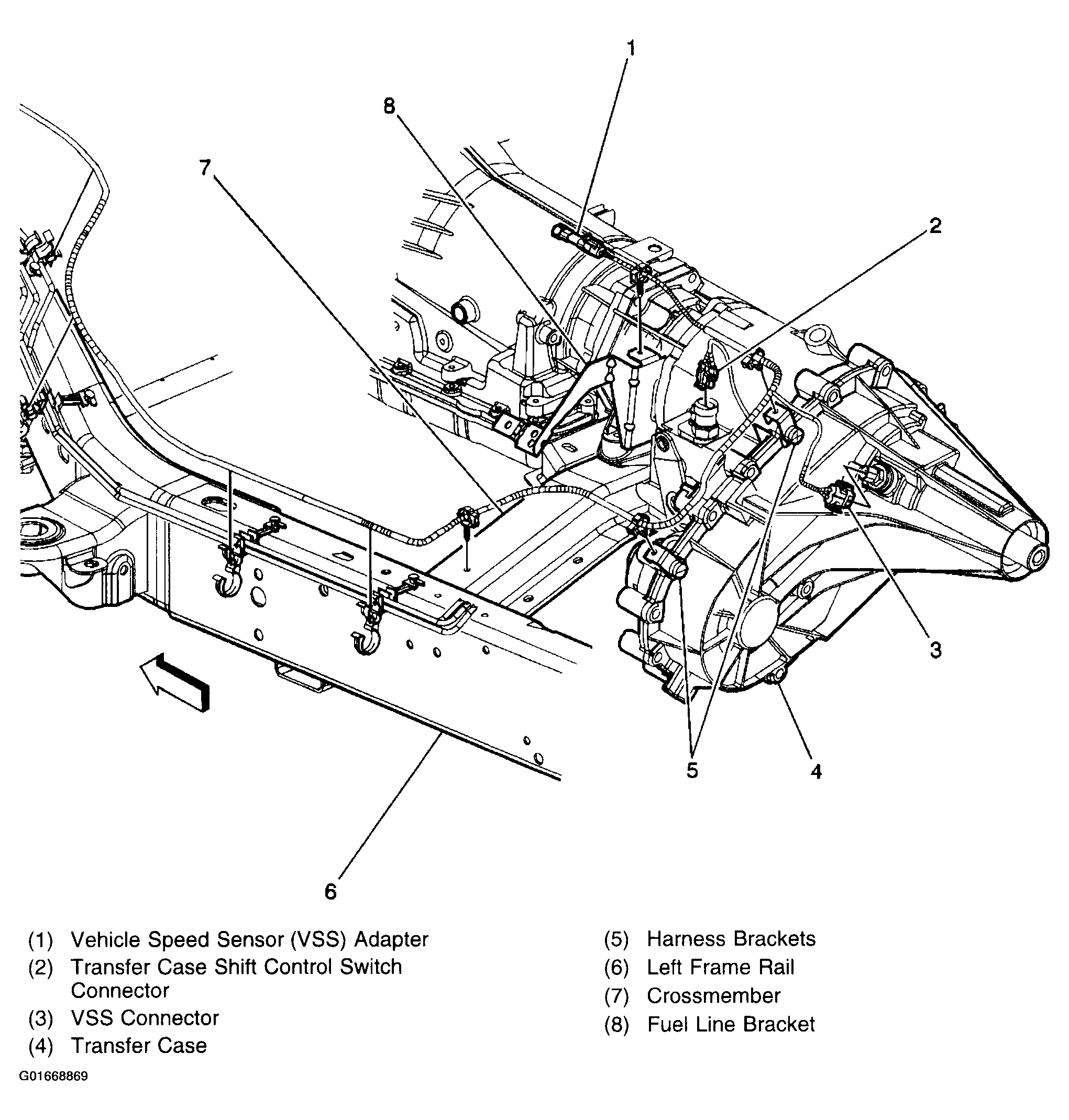

Fig 1: Locating Transfer Case Harness Routing

Courtesy of GENERAL MOTORS CORP.

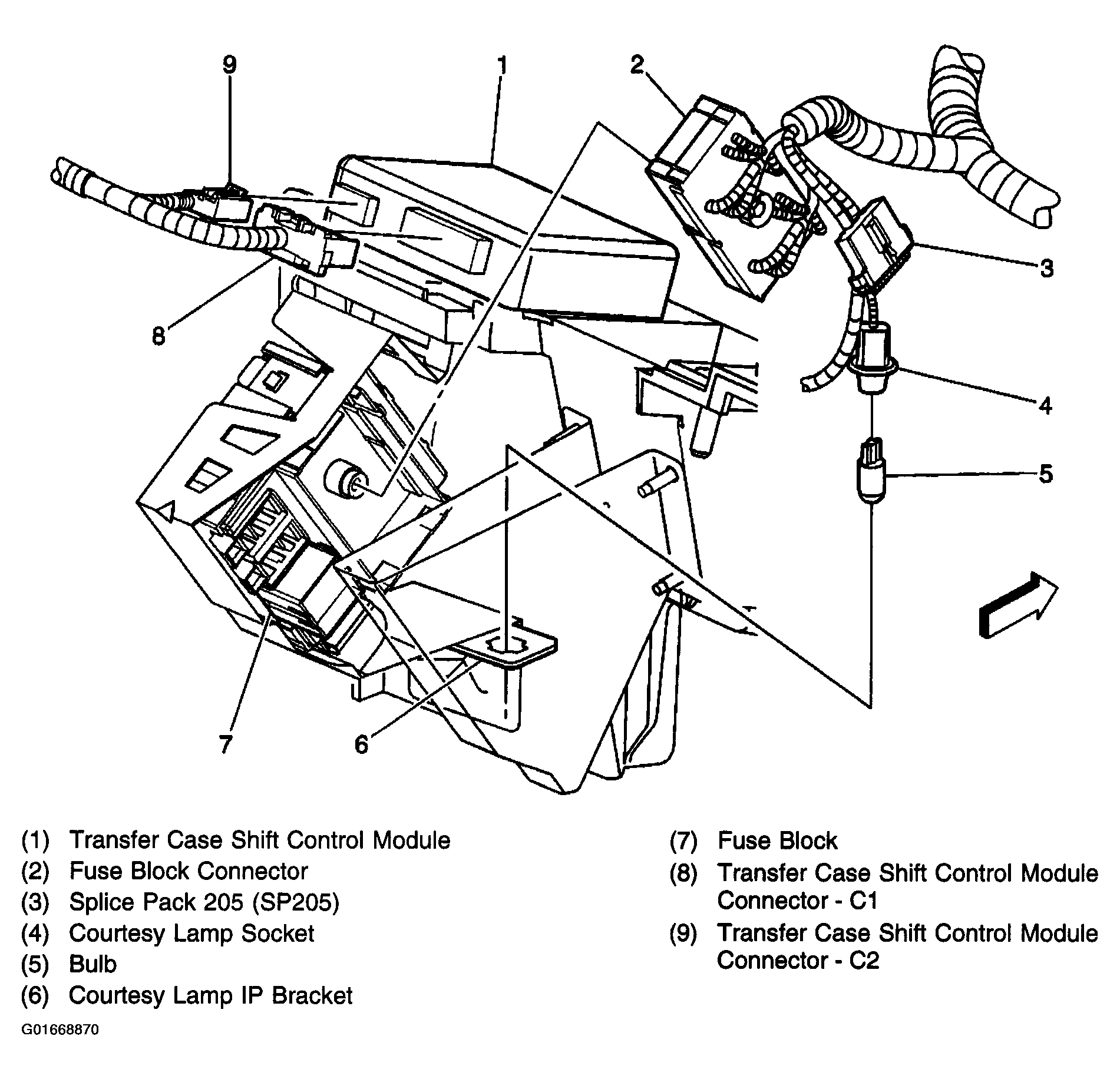

Fig 2: Locating Transfer Case Shift Control Module

Courtesy of GENERAL MOTORS CORP.

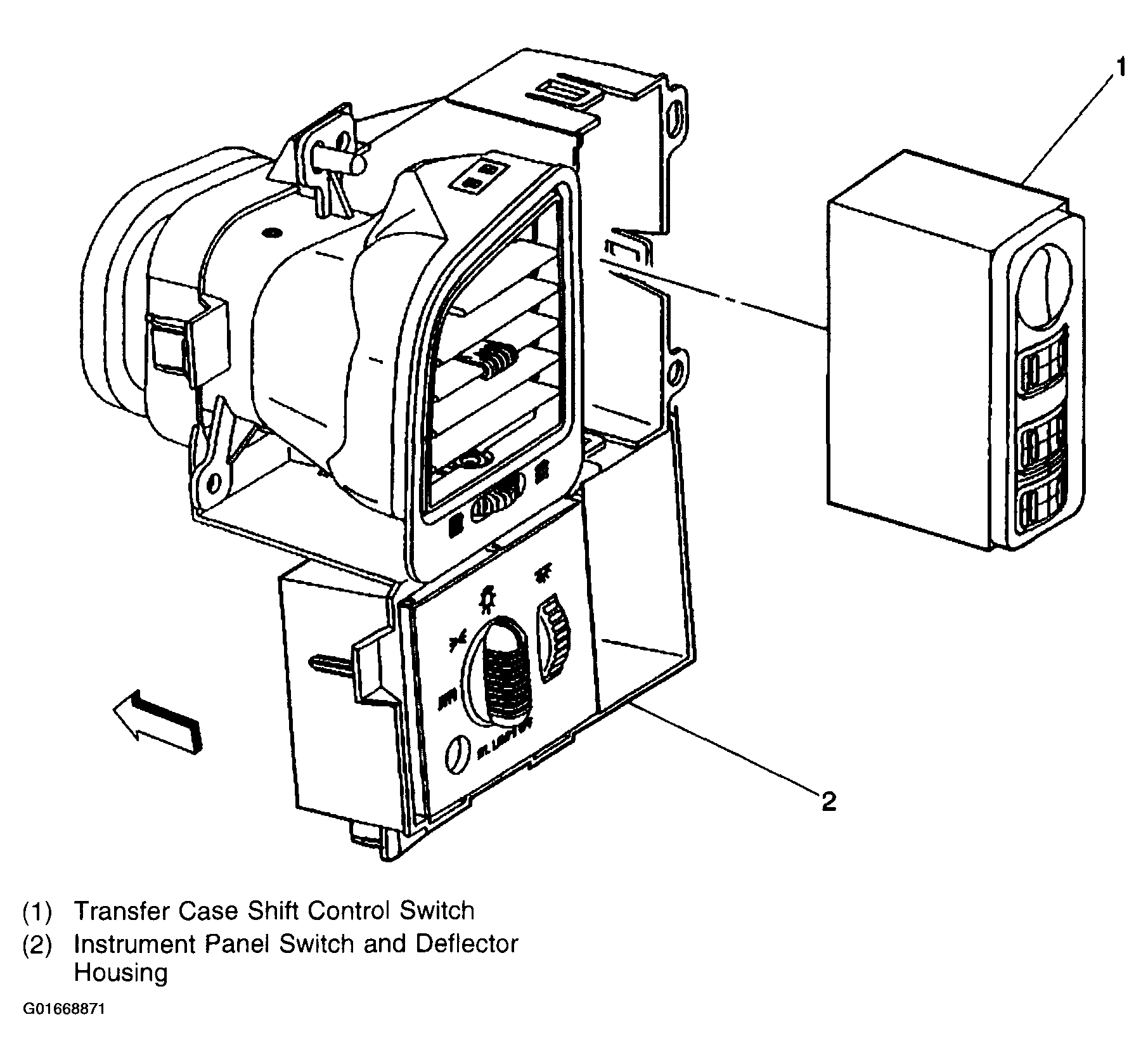

Fig 3: Locating Transfer Case Shift Control Switch

Courtesy of GENERAL MOTORS CORP.

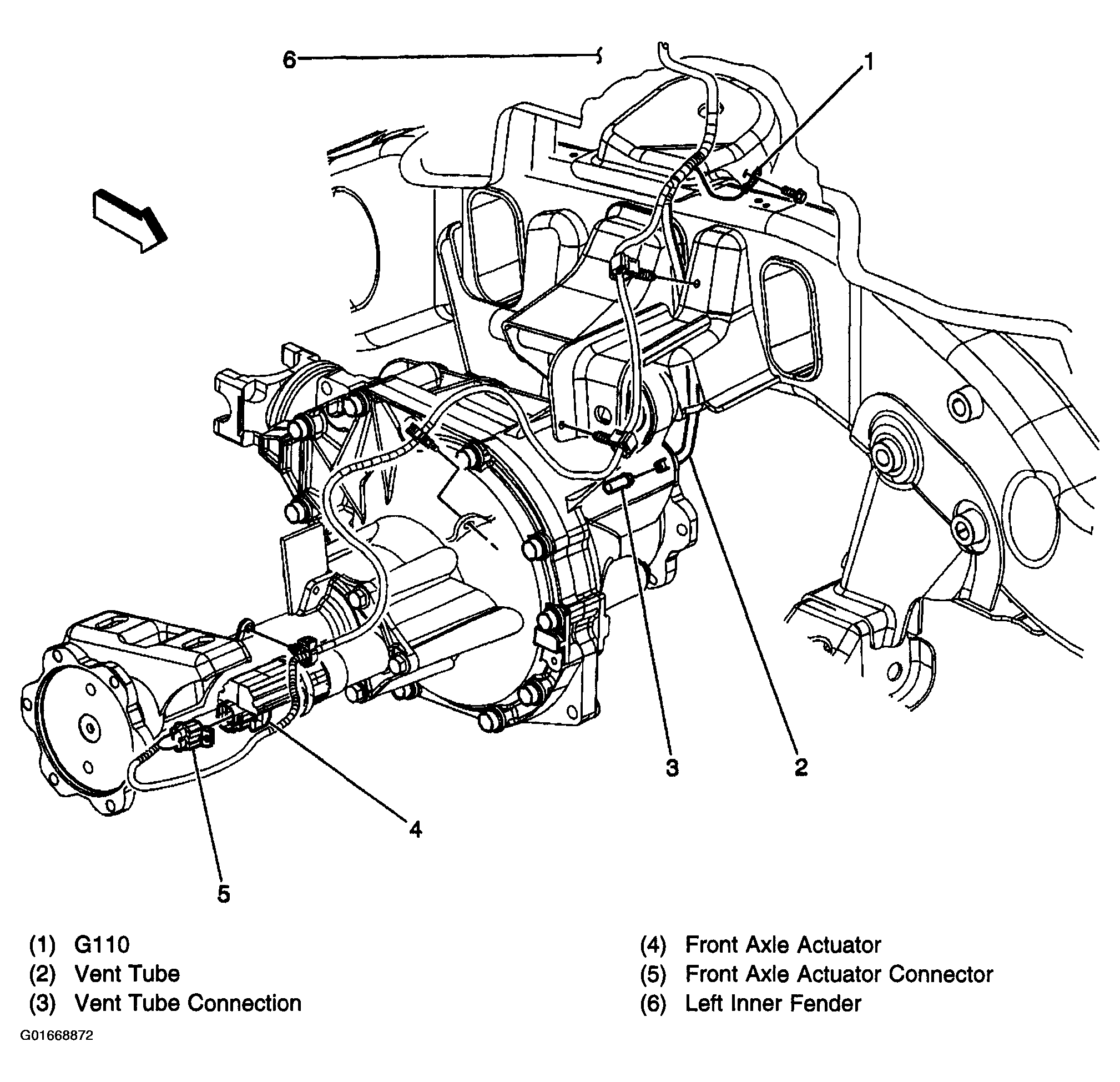

Fig 4: Locating Front Drive Axle Harness Routing (K25 Series)

Courtesy of GENERAL MOTORS CORP.

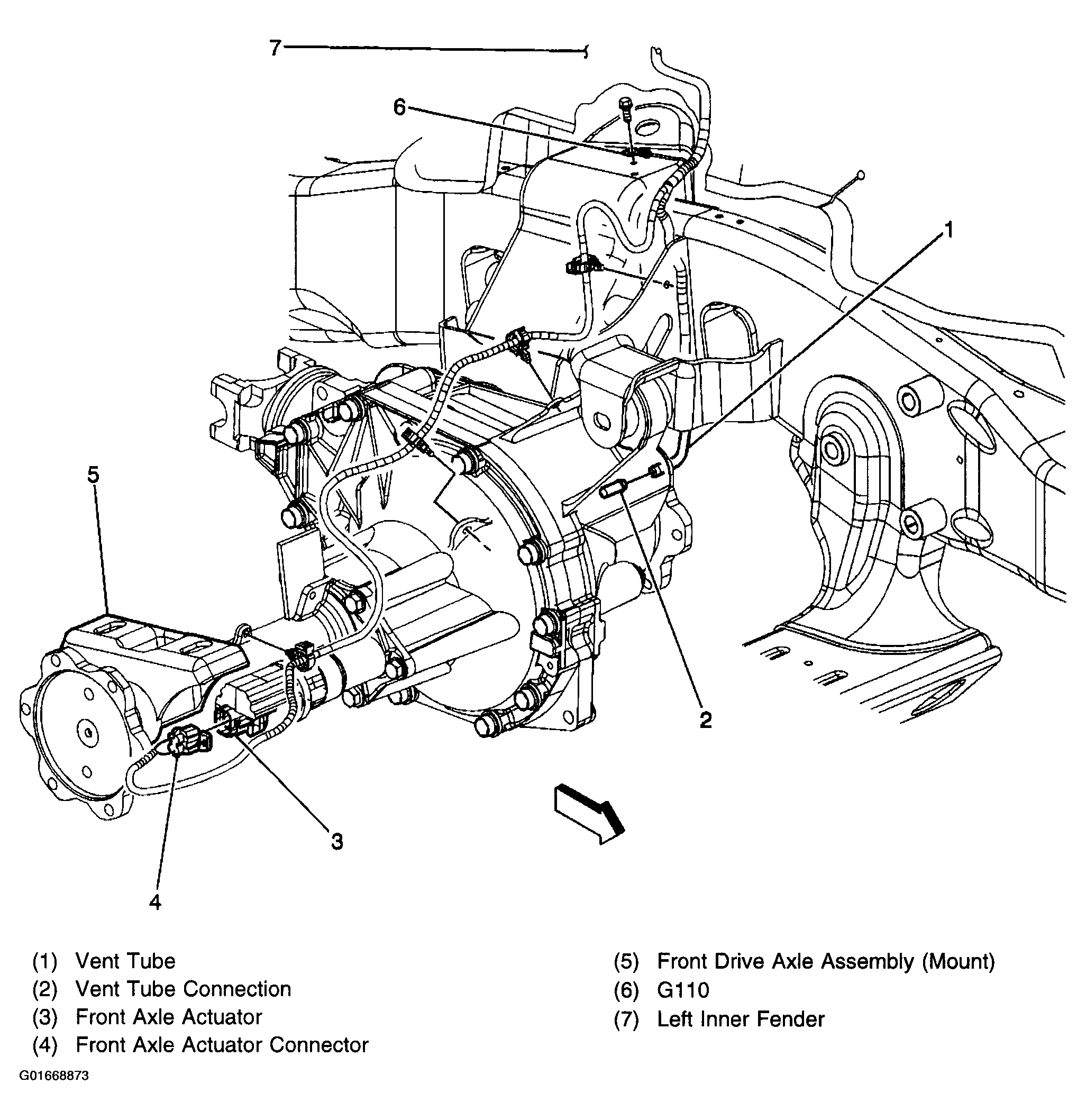

Fig 5: Locating Front Drive Axle Harness Routing (K15 Series)

Courtesy of GENERAL MOTORS CORP.
