Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the transfer case shield. Refer to Transfer Case Shield Replacement .
  3. Remove the transfer case gear indicator switch electrical connector.
  4. Remove the transfer case gear indicator switch.

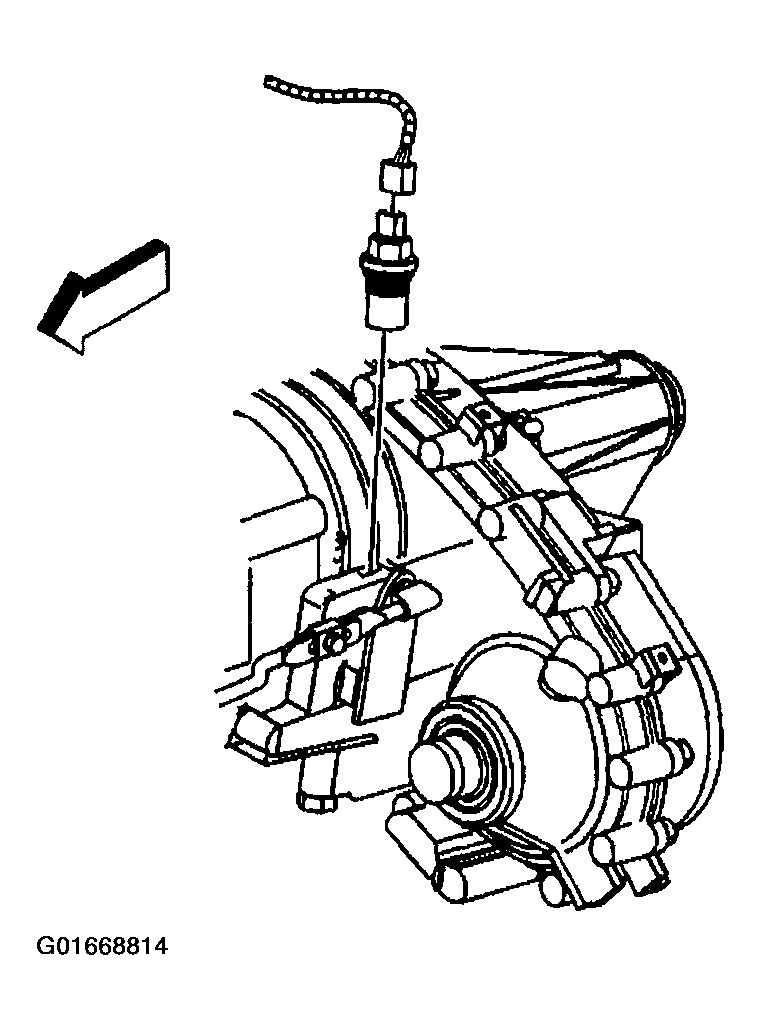

    Fig 1: Transfer Case Gear Indicator Switch
    G01668814Courtesy of GENERAL MOTORS CORP.
