Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Important: Before starting the following service procedure, position the automatic transmission in the PARK POSITION. If the vehicle that is being serviced is equipped with a manual transmission, position the transmission in FIRST GEAR and place the transfer case in 2 HI POSITION.

Raise the vehicle.
Remove the transfer case shield. Refer to Transfer Case Shield Replacement .
Remove the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT .
Important: When performing this service procedure, use a small pocket screw driver to release the retaining clip on the ends of the transfer case control shift rod.

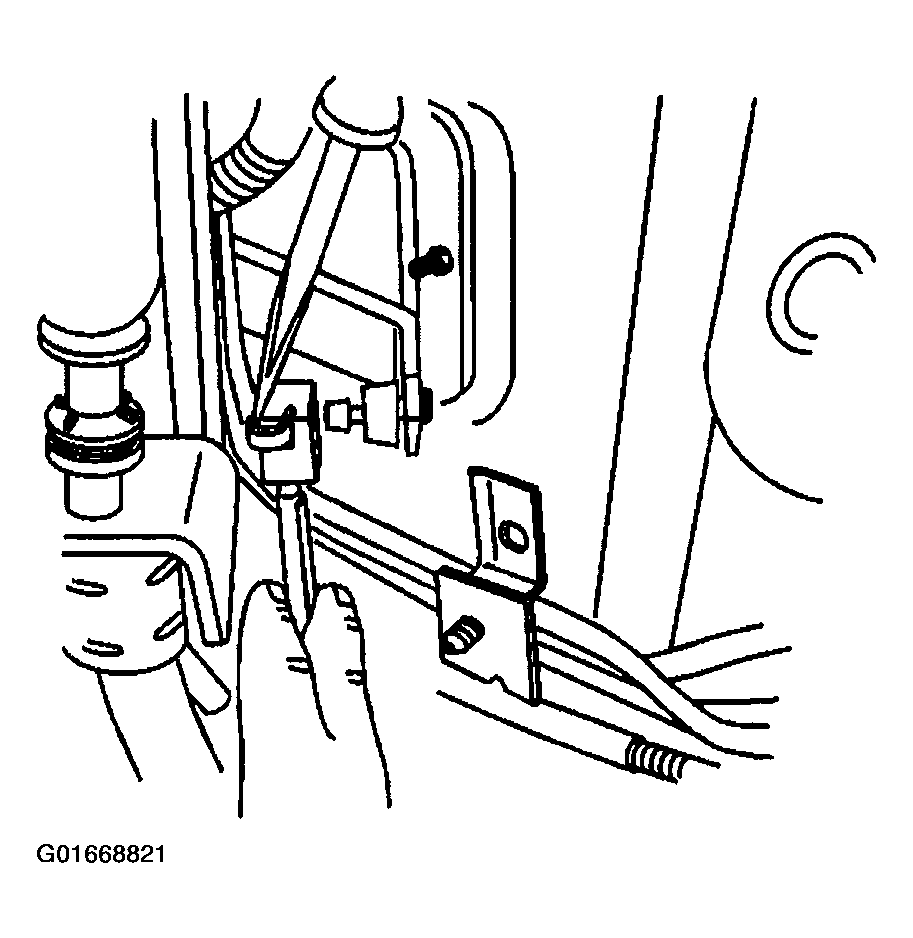

Fig 1: Transfer Case Control Shift Rod Retaining Clip
Courtesy of GENERAL MOTORS CORP.
Remove the transfer case control rod from the transfer case shift control lever.
Remove the transfer case control rod from the transfer case shift lever.
Remove the transfer case control rod.

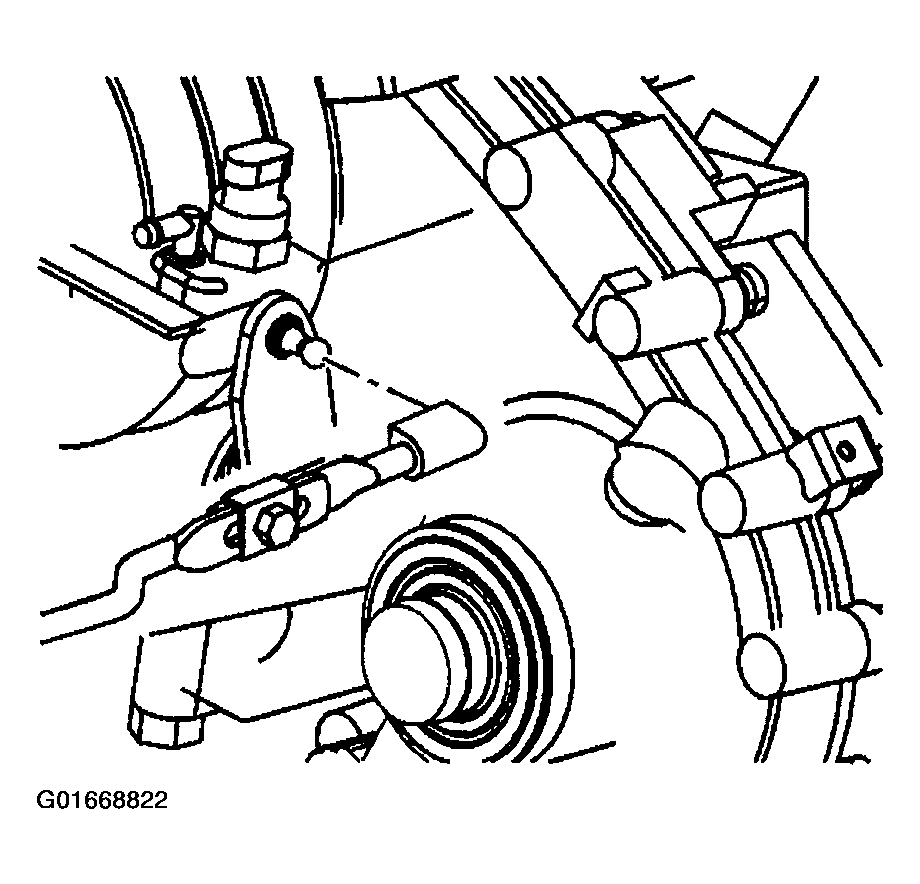

Fig 2: Transfer Case Control Rod
Courtesy of GENERAL MOTORS CORP.
