Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the transfer case shield. Refer to Transfer Case Fluid Replacement .
  3. Remove the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT .
  4. Remove the shift control rod from the transfer case control lever. Refer to Transfer Case Control Rod Replacement .

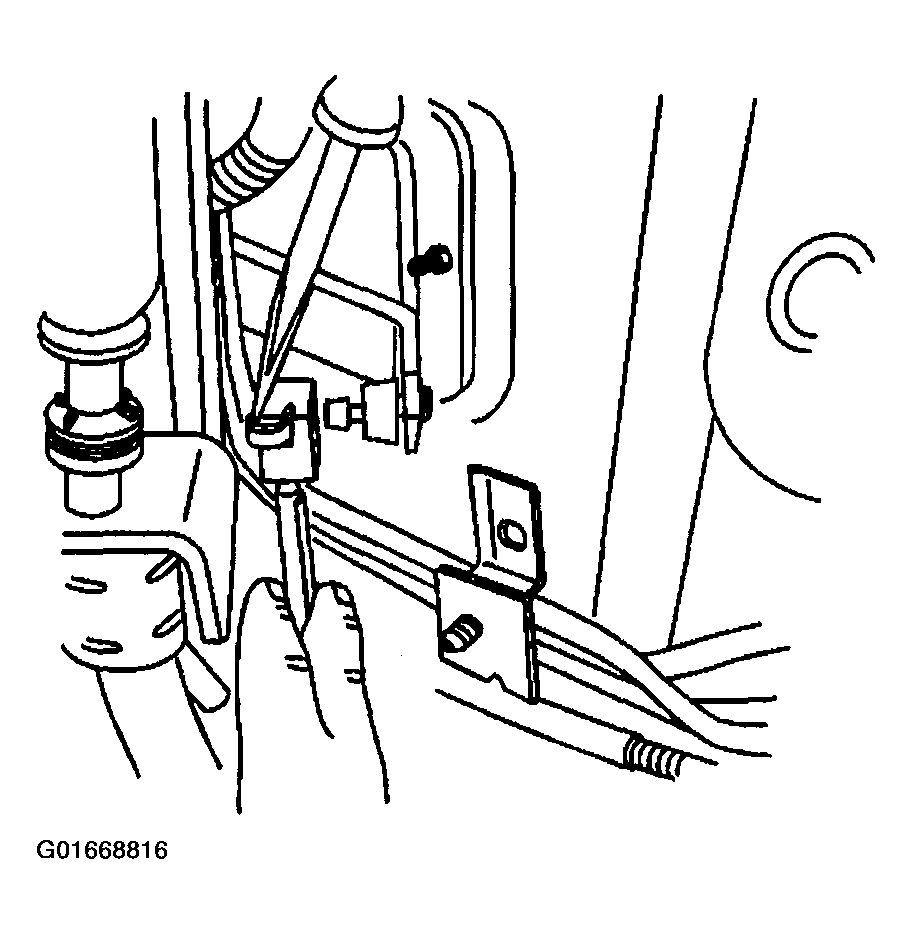

    5. Fig 1: Shift Control Rod
    G01668816Courtesy of GENERAL MOTORS CORP.
  5. Lower the vehicle.
  6. Remove the transfer case control lever knob in the following manner.
    1. Using a adjustable wrench, adjust the wrench to fit the transfer case control lever rod just below the knob.
    2. With the adjustable wrench touching the control lever knob, gently tap the control lever knob in an upward motion until the control lever knob is off the rod.
  7. Remove the transfer case control lever bezel mounting screws.
  8. Remove the transfer case control lever bezel.

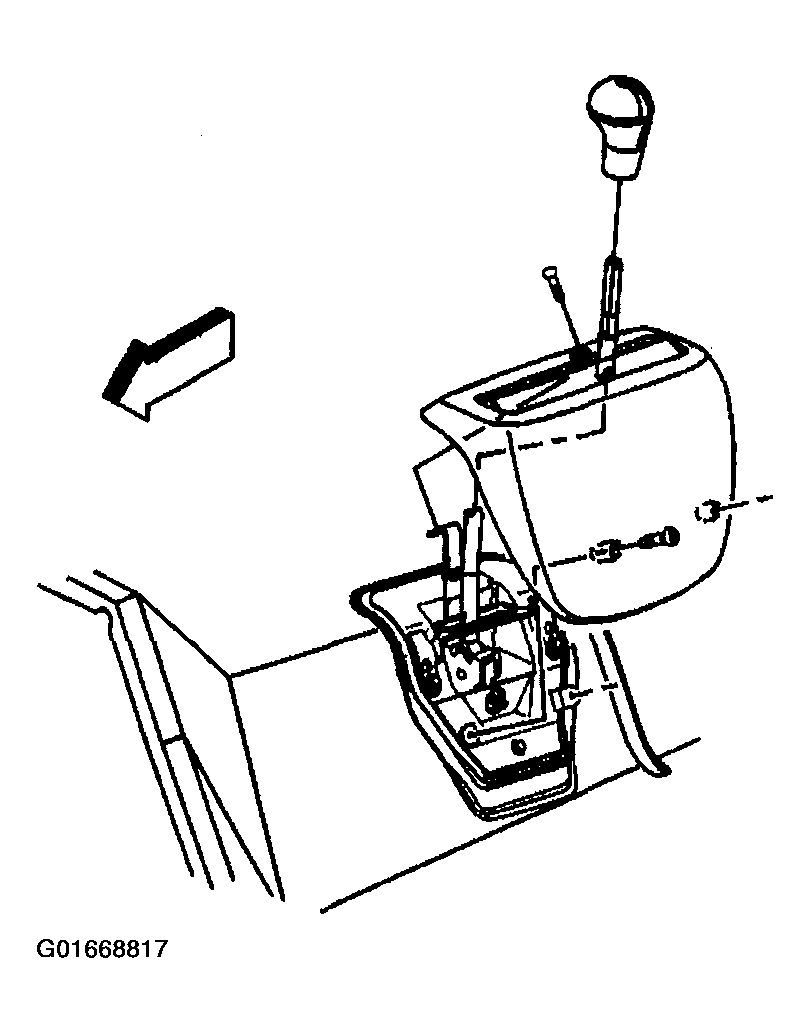

    Fig 2: Transfer Case Control Lever Bezel
    G01668817Courtesy of GENERAL MOTORS CORP.

    Important:  When performing the following service procedure, the transfer case control lever mounting bracket does not have to be removed from the vehicle.

  9. Remove the transfer case control lever mounting bolts.
  10. Remove the transfer case control lever assembly.

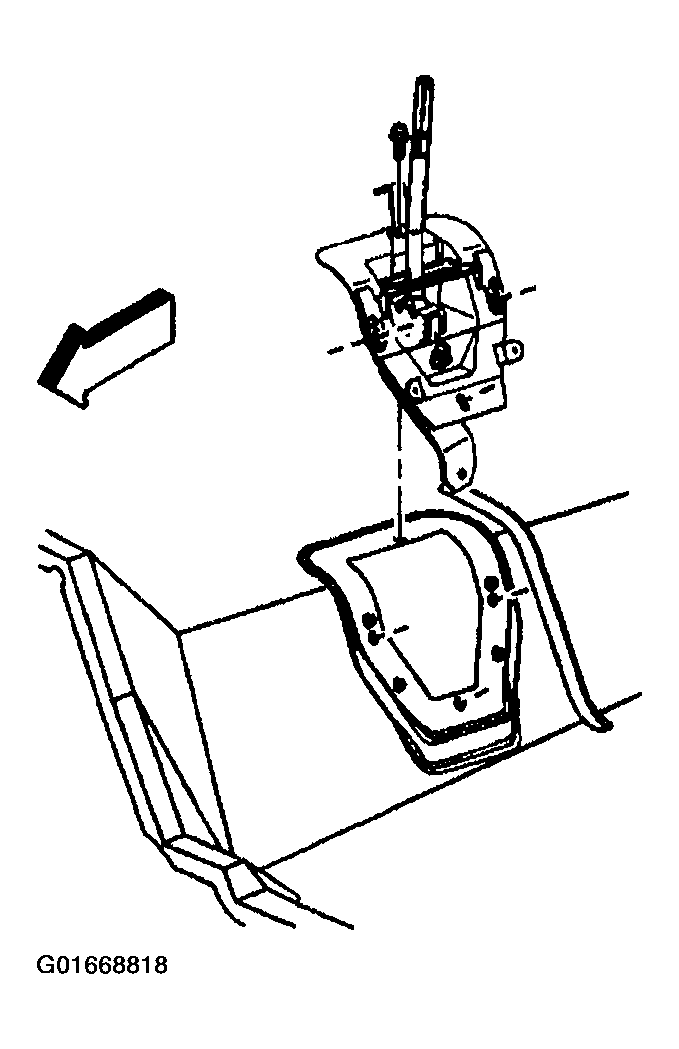

    Fig 3: Transfer Case Control Lever Assembly
    G01668818Courtesy of GENERAL MOTORS CORP.
