Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the transfer case assembly. Refer to Transfer Case Assembly Replacement .
  3. Lower the transmission assembly slightly.
  4. Remove the transfer case adapter mounting bolts.
  5. Remove the transfer case adapter.
  6. Remove the transfer case adapter seal.

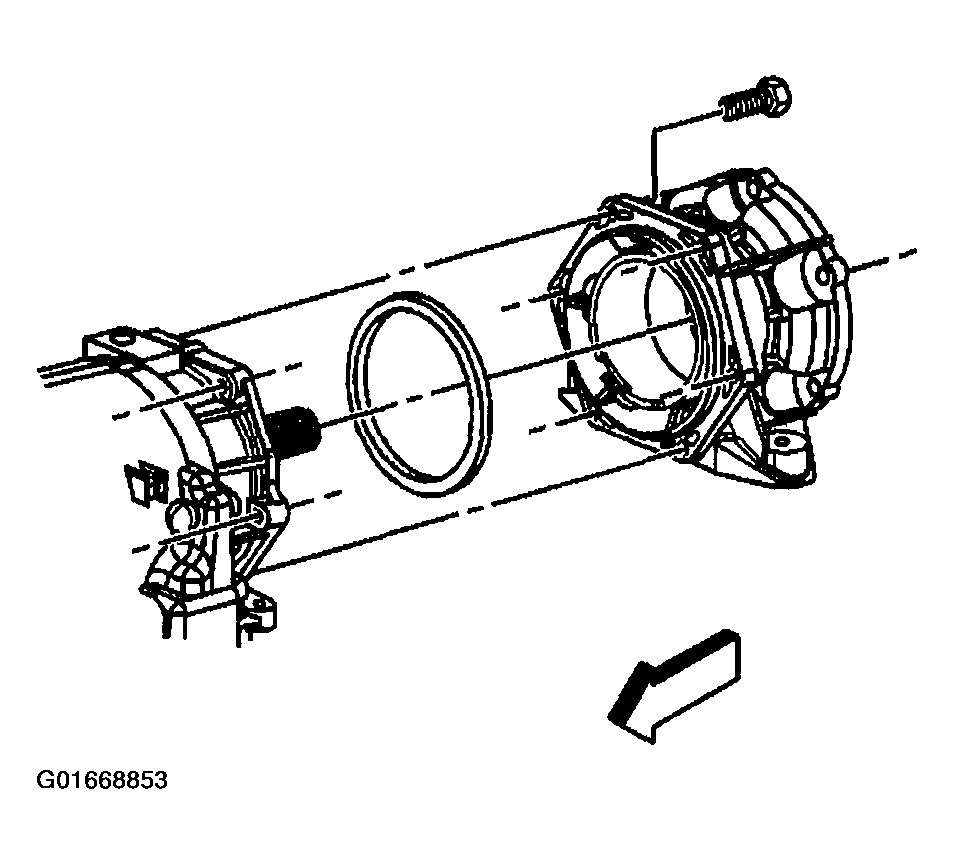

    Fig 1: Transfer Case Adapter Seal
    G01668853Courtesy of GENERAL MOTORS CORP.
  7. Remove the transfer case gasket.

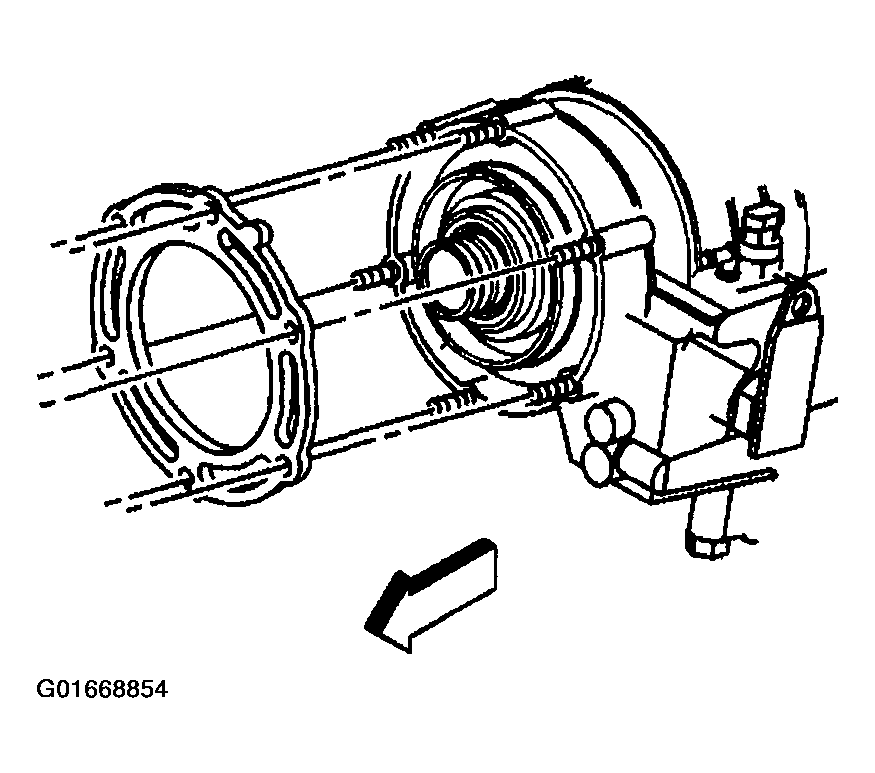

    Fig 2: Transfer Case Gasket
    G01668854Courtesy of GENERAL MOTORS CORP.
