Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the transfer case left rear speed sensor electrical connector.
  3. Remove the transfer case left rear speed sensor.

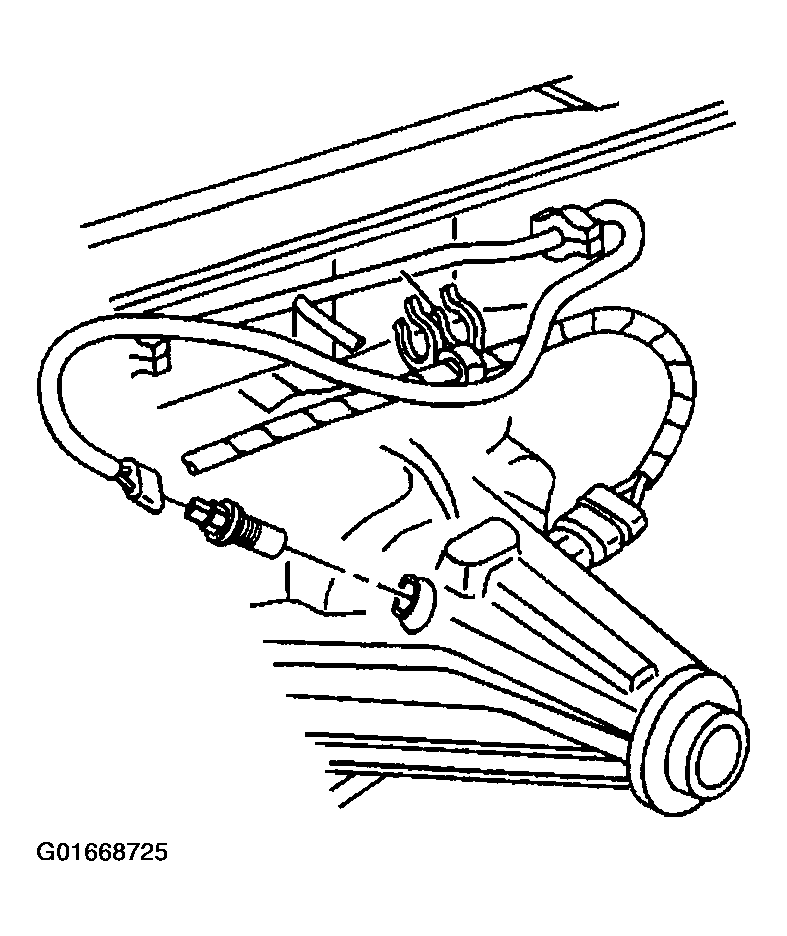

    Fig 1: Transfer Case Left Rear Speed Sensor
    G01668725Courtesy of GENERAL MOTORS CORP.
