Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the transfer case shield. Refer to Transfer Case Shield Replacement .
  3. Remove the transfer case front speed sensor electrical connector.

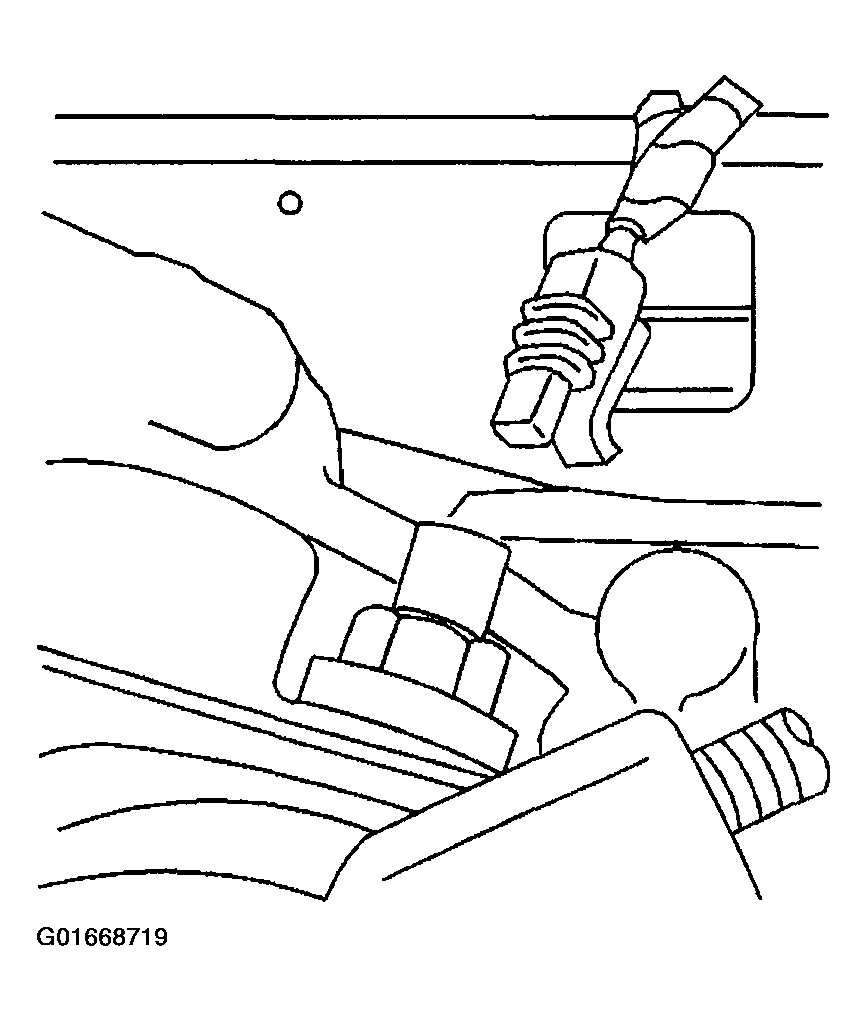

    Fig 1: Transfer Case Front Speed Sensor Electrical Connector
    G01668719Courtesy of GENERAL MOTORS CORP.
  4. Remove the transfer case front speed sensor.

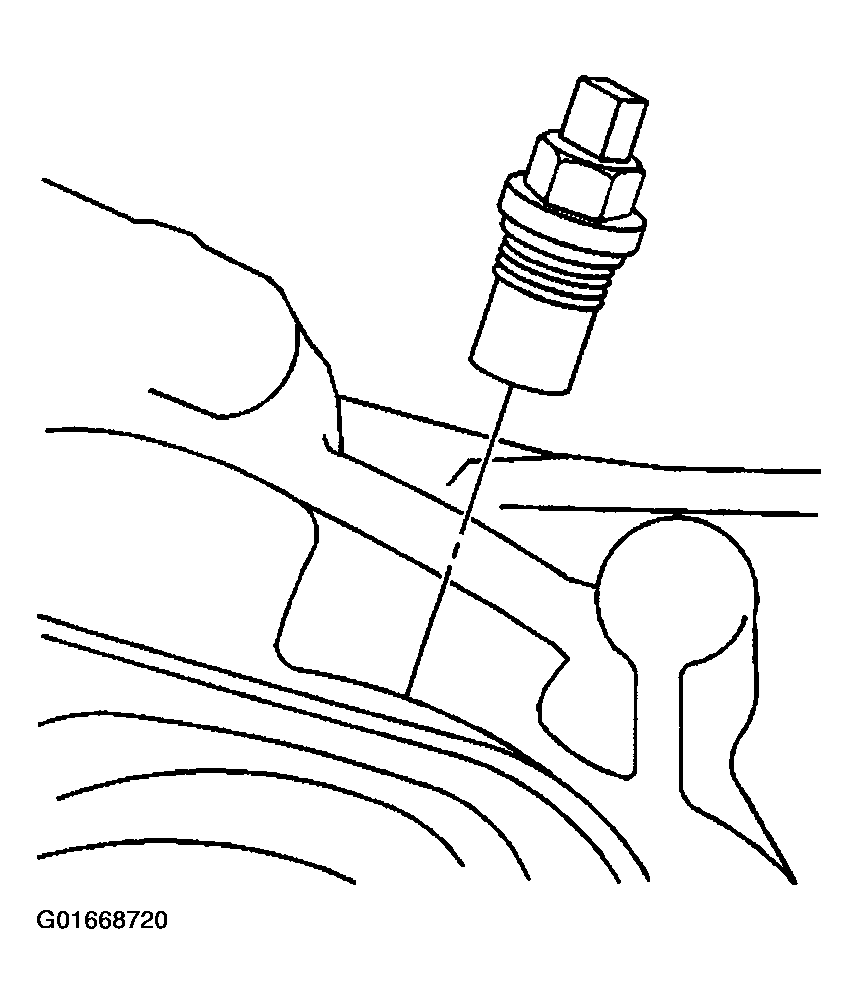

    Fig 2: Transfer Case Front Speed Sensor
    G01668720Courtesy of GENERAL MOTORS CORP.
