Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel bezel trim piece.

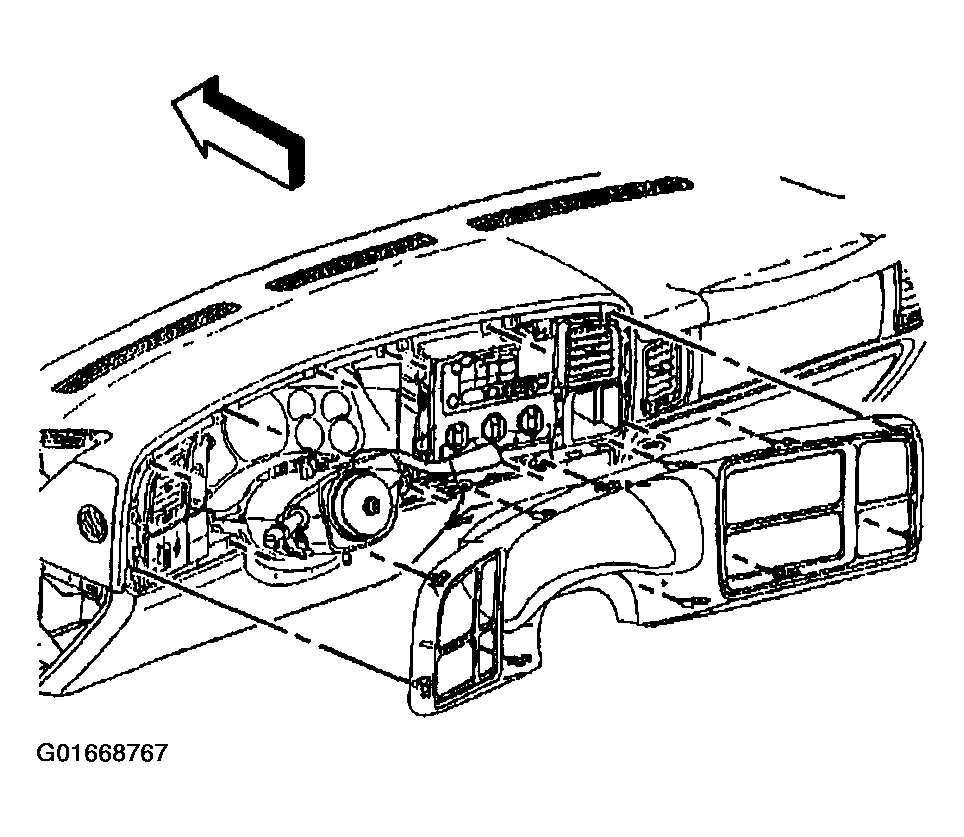

    Fig 1: Instrument Panel Bezel Trim Piece
    G01668767Courtesy of GENERAL MOTORS CORP.
  2. Pull the tabs on the side of the transfer case driver control switch out.
  3. Pull the transfer case driver control switch straight out from the panel.

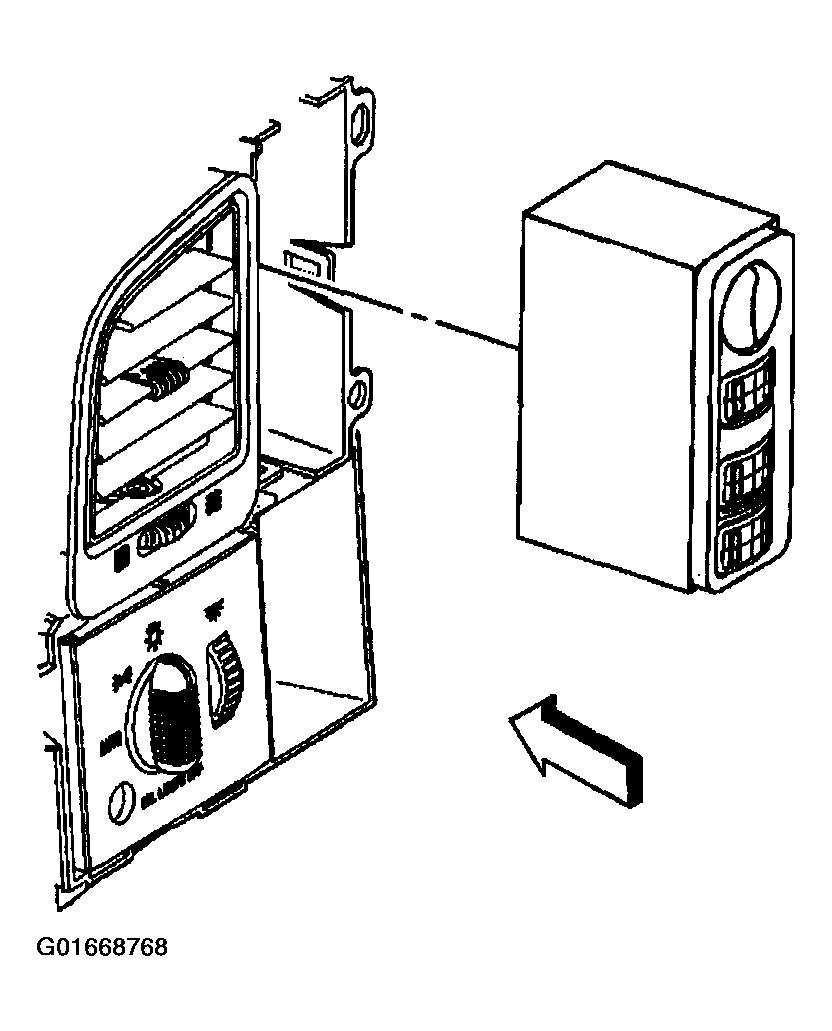

    Fig 2: Transfer Case Driver Control Switch
    G01668768Courtesy of GENERAL MOTORS CORP.
